DS-K7PEB(Red)

DS-K7PEB  Emergency Break Glass Box      • Fireproof Material, Sandblast Finished  • Output Contact: N.O./N.C./COM  • Suitable for Exit Door, Emergency Door  • 3A @ 36 VDC Maximum  • 7 ozs (0.2 kg)  • Optional Accessories: Glass/Transparent Cover    DS-K7PEB Emergency Break Glass Box is  designed for exit doors and emergency doors. It is  made of fireproof material and has a sandblast  finish. Has Normally Open (N.O.), Normally Closed  (N.C.), and common (COM) contact outputs.  Available Model: DS-K7PEB          Hikvision USA Inc., 18639 Railroad St., City of Industry, CA 91748, USA • Hikvision Canada, 4848 rue Levy, Saint-Laurent, Quebec, Canada, H4R 2P1  Tel: +1-909-895-0400 • Toll Free in USA: +1-866-200-6690 • E-Mail: sales.usa@hikvision.com • www.hikvision.com  © 2017 Hikvision USA Inc. • All Rights Reserved • Specifications subject to change without notice. 061517NA     Specifications                      Dimensions Installation      Units: mm    Wiring           D...

Garantie: 24 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

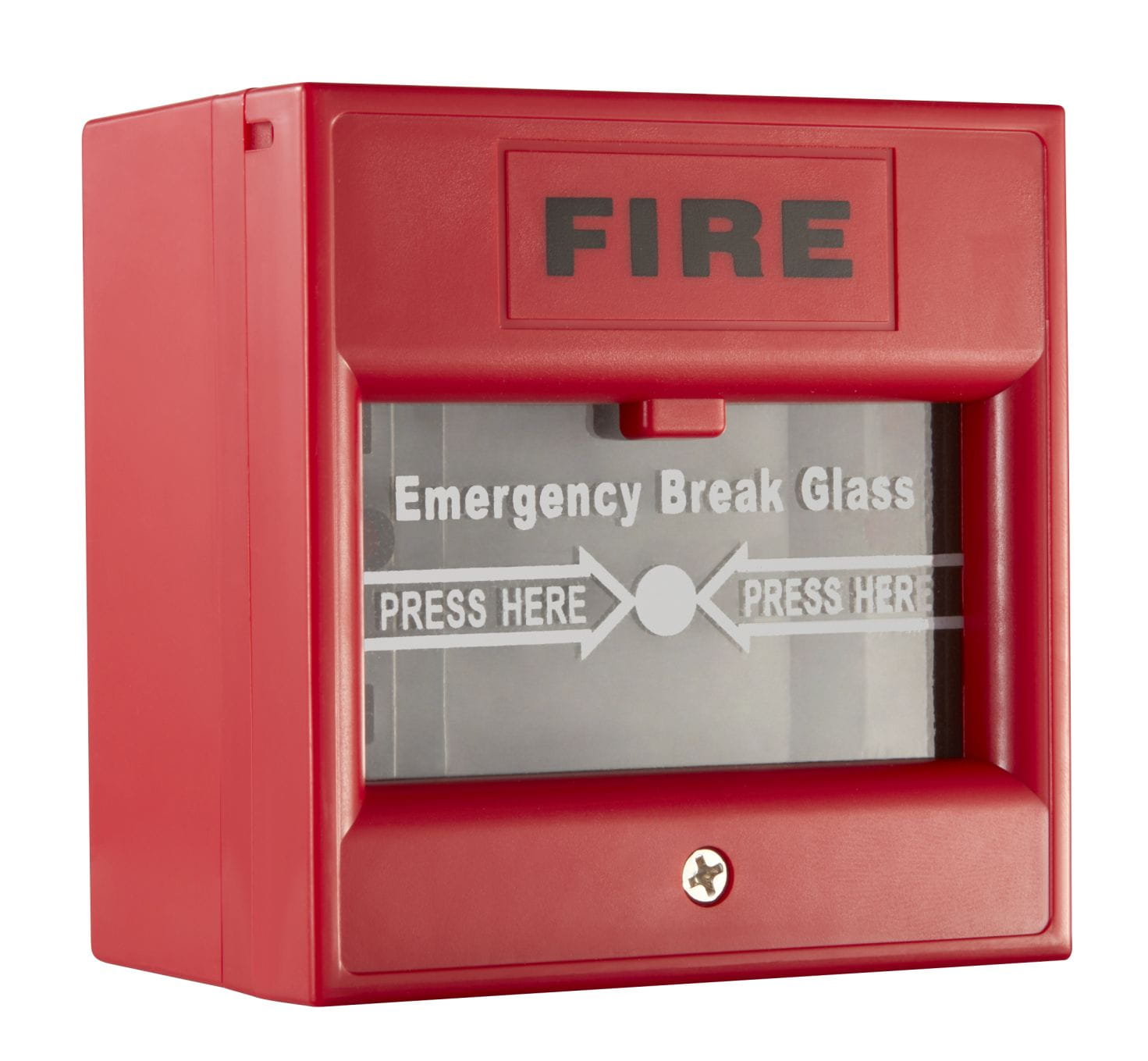

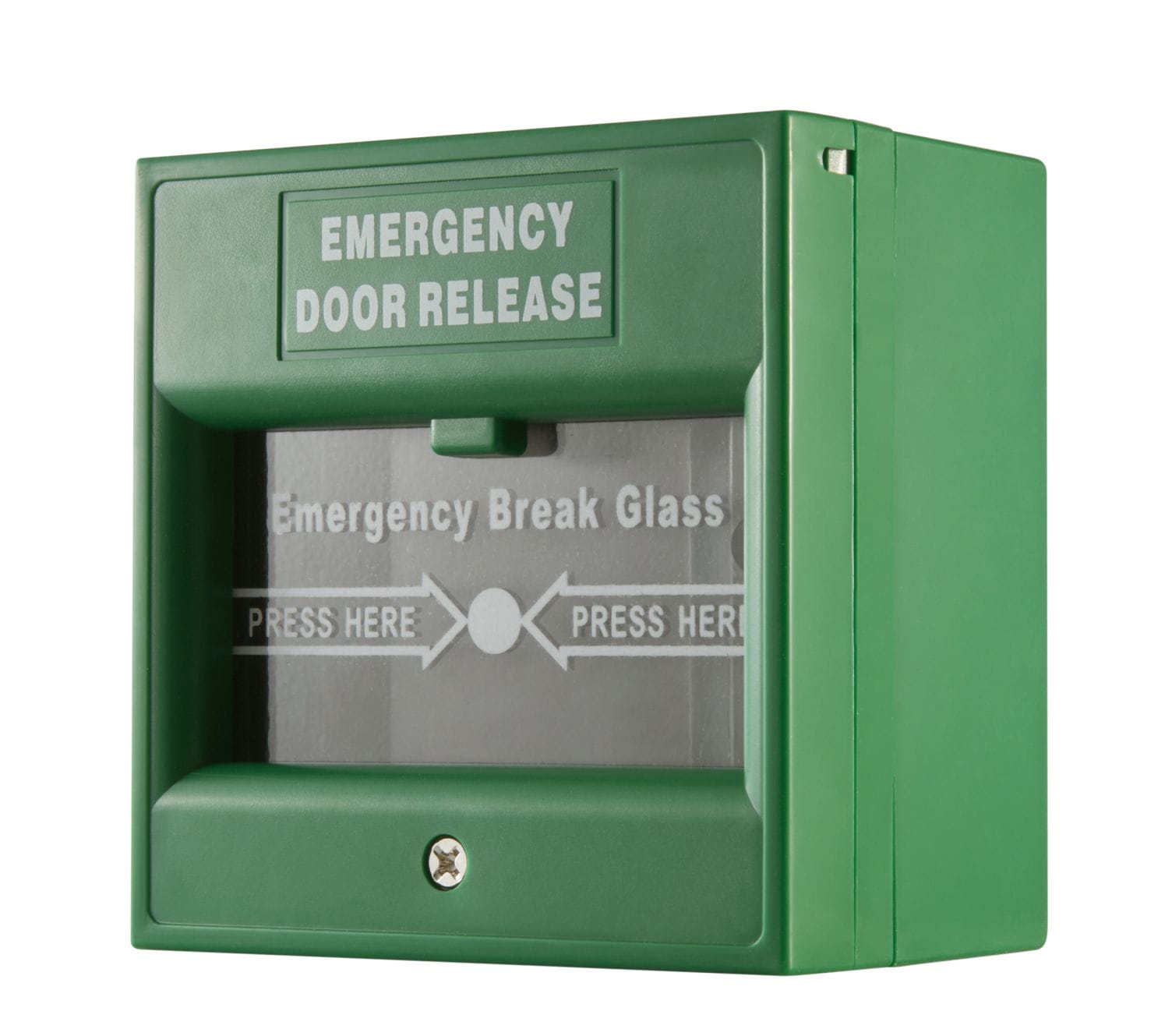

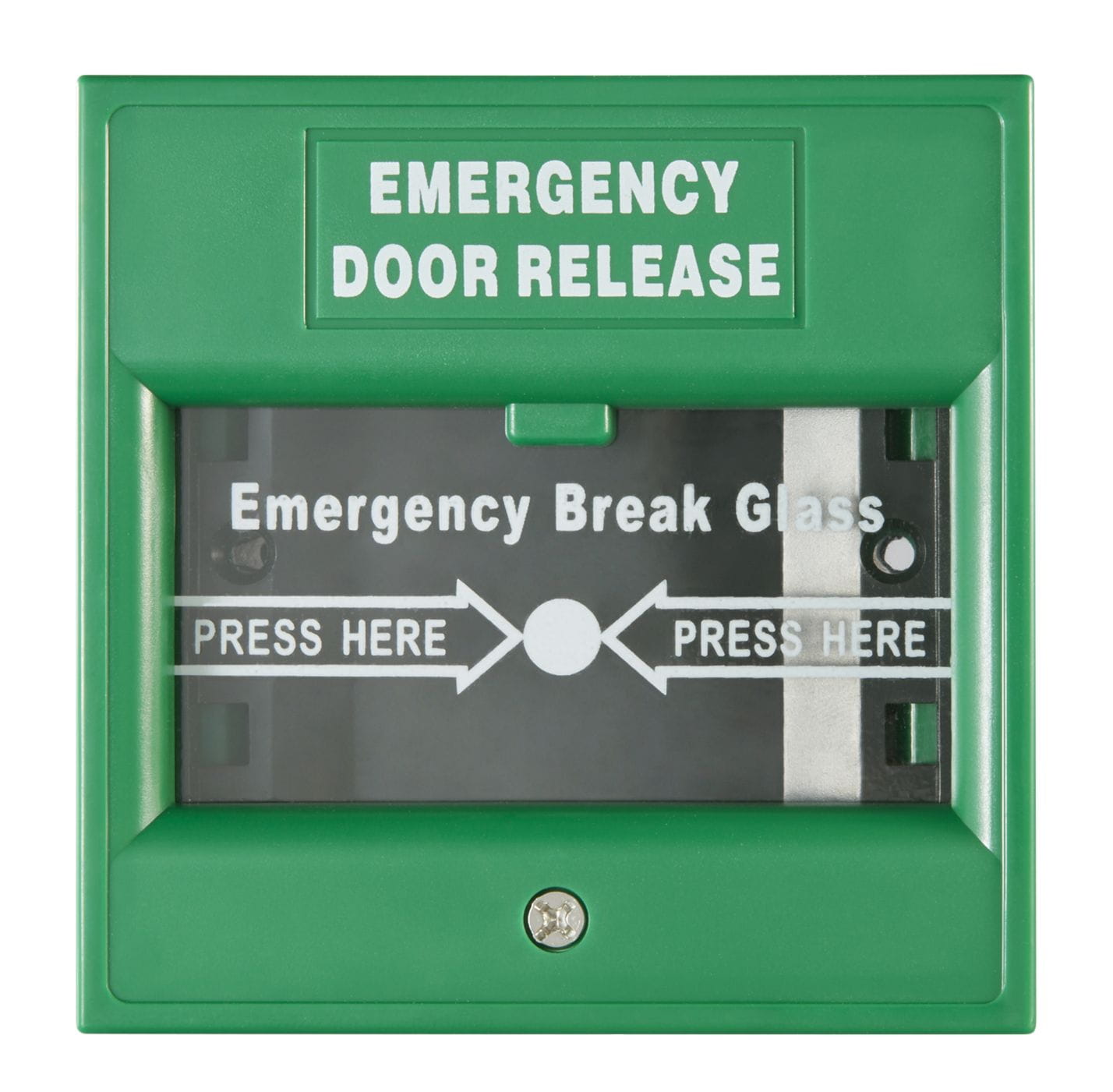

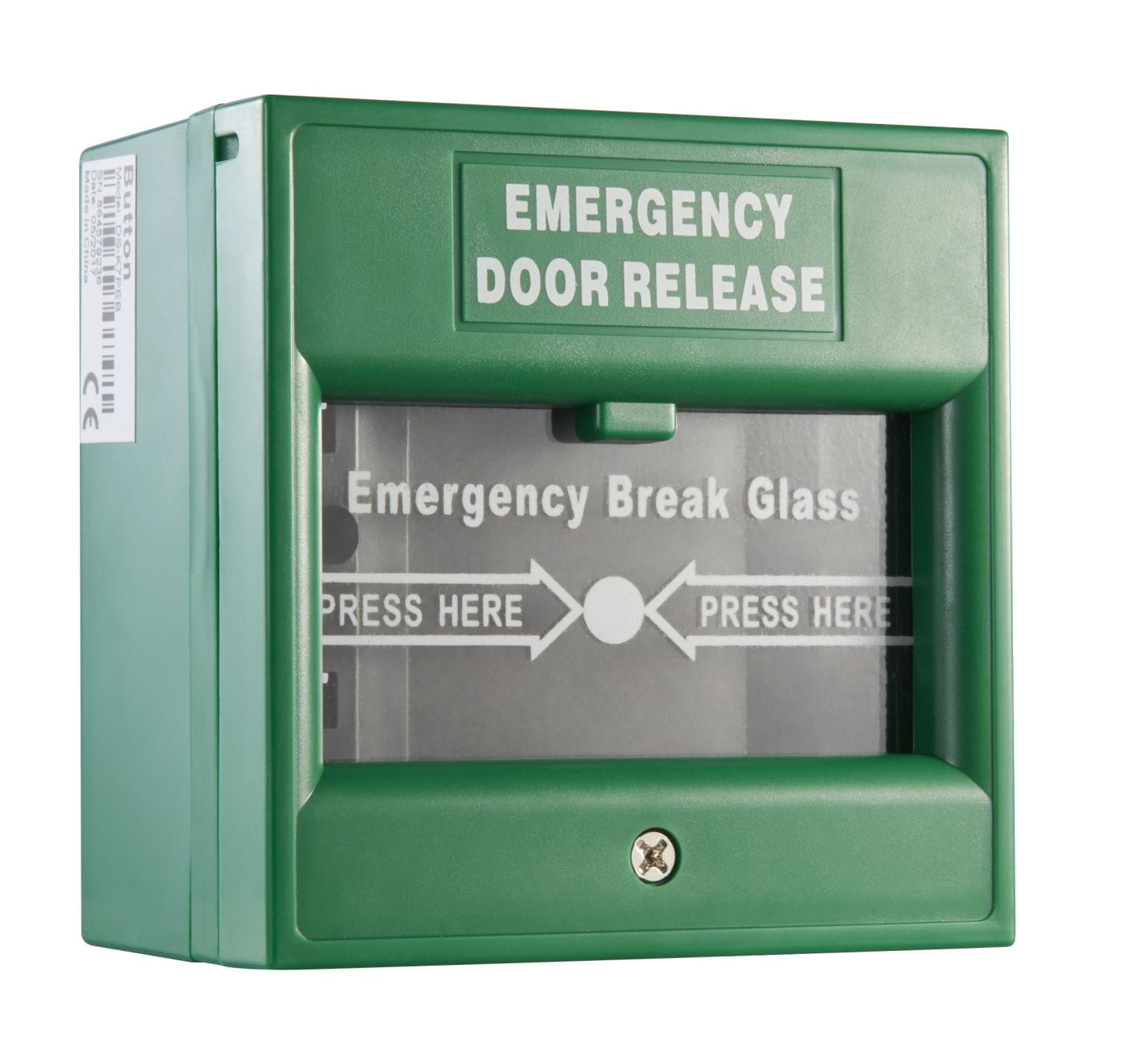

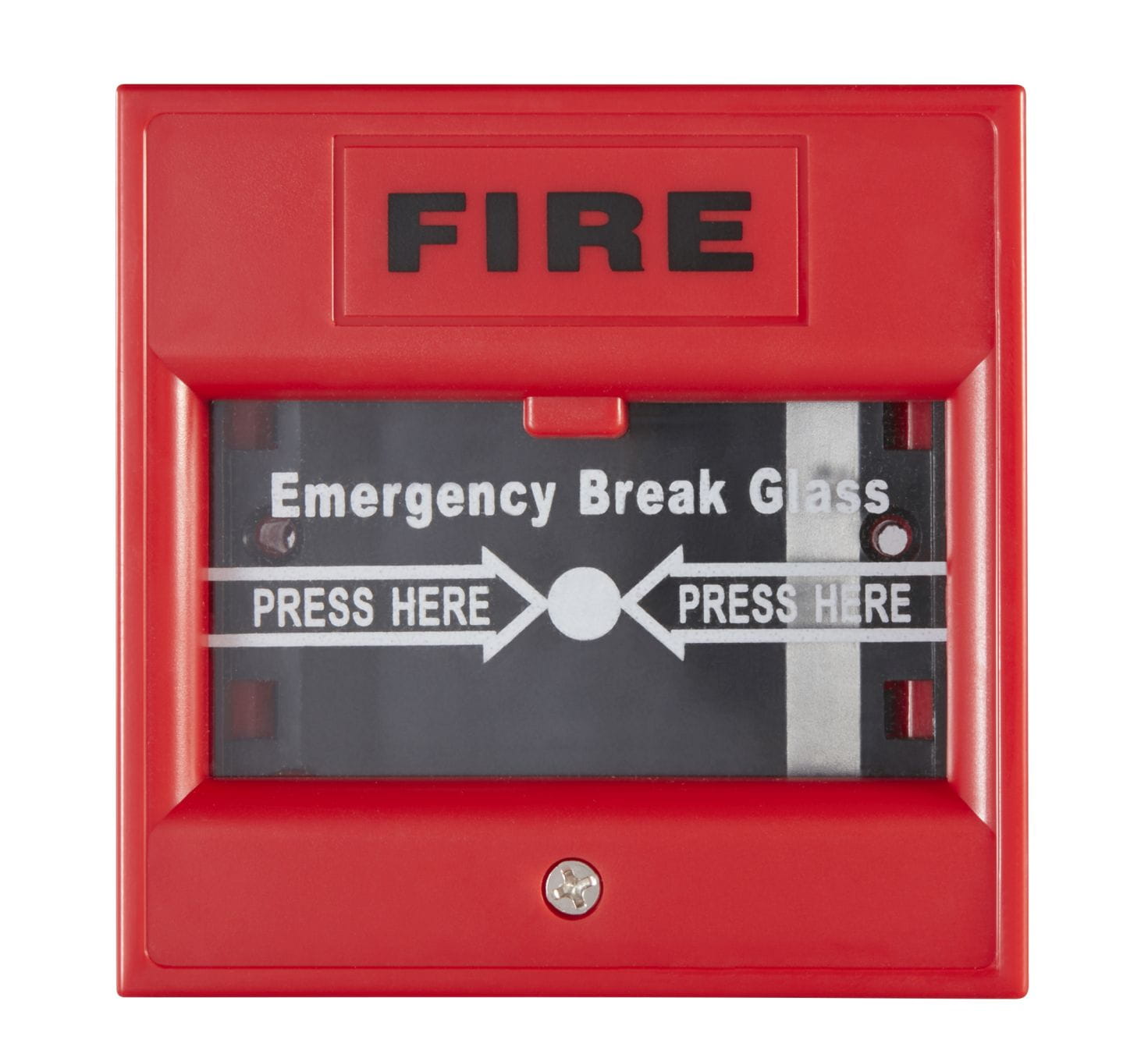

DS-K7PEB
Emergency Break Glass Box


• Fireproof Material, Sandblast Finished
• Output Contact: N.O./N.C./COM
• Suitable for Exit Door, Emergency Door
• 3A @ 36 VDC Maximum
• 7 ozs (0.2 kg)
• Optional Accessories: Glass/Transparent Cover

DS-K7PEB Emergency Break Glass Box is
designed for exit doors and emergency doors. It is
made of fireproof material and has a sandblast
finish. Has Normally Open (N.O.), Normally Closed
(N.C.), and common (COM) contact outputs.
Available Model: DS-K7PEB




Hikvision USA Inc., 18639 Railroad St., City of Industry, CA 91748, USA • Hikvision Canada, 4848 rue Levy, Saint-Laurent, Quebec, Canada, H4R 2P1
Tel: +1-909-895-0400 • Toll Free in USA: +1-866-200-6690 • E-Mail: sales.usa@hikvision.com • www.hikvision.com
© 2017 Hikvision USA Inc. • All Rights Reserved • Specifications subject to change without notice. 061517NA

Specifications










Dimensions Installation


Units: mm

Wiring




DS-K7PEB
Dimension (l x w x h) 3.39" x 3.39" x 1.97" (86 mm x 86 mm x 50 mm)
Suitable Doors Exit doors, emergency doors
Materials Fireproof material, sandblast finish
Standard Structure Fireproof material
Color Red
Output Contacts N.O./N.C./COM
Current Rating 3 A @ 36 VDC maximum
Working Temperature 14° to 131° F (-10° to +55° C)
Working Humidity 0% to 95% relative humidity
Weight 7 ozs (0.2 kg)
Optional Accessories Glass, transparent cover
