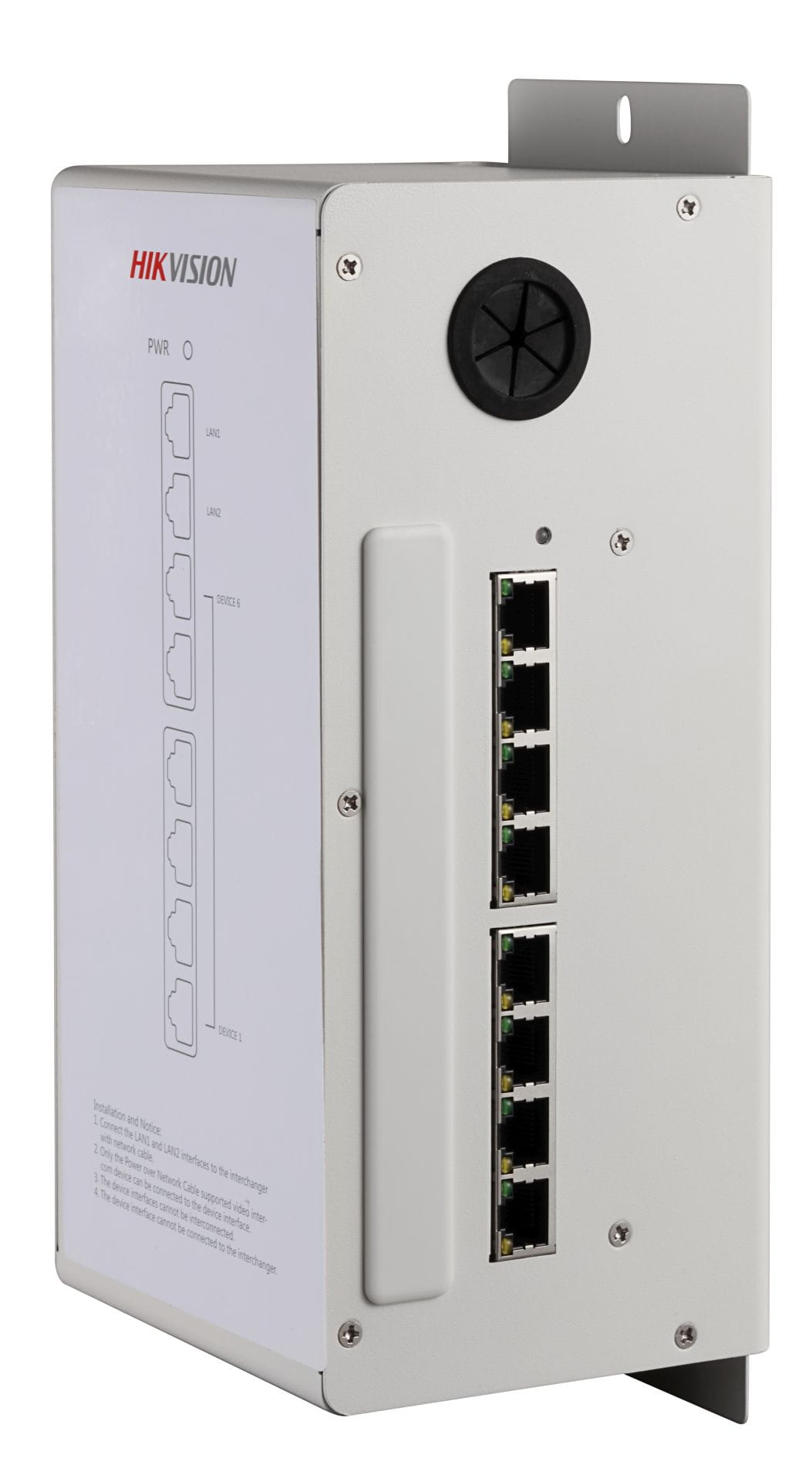

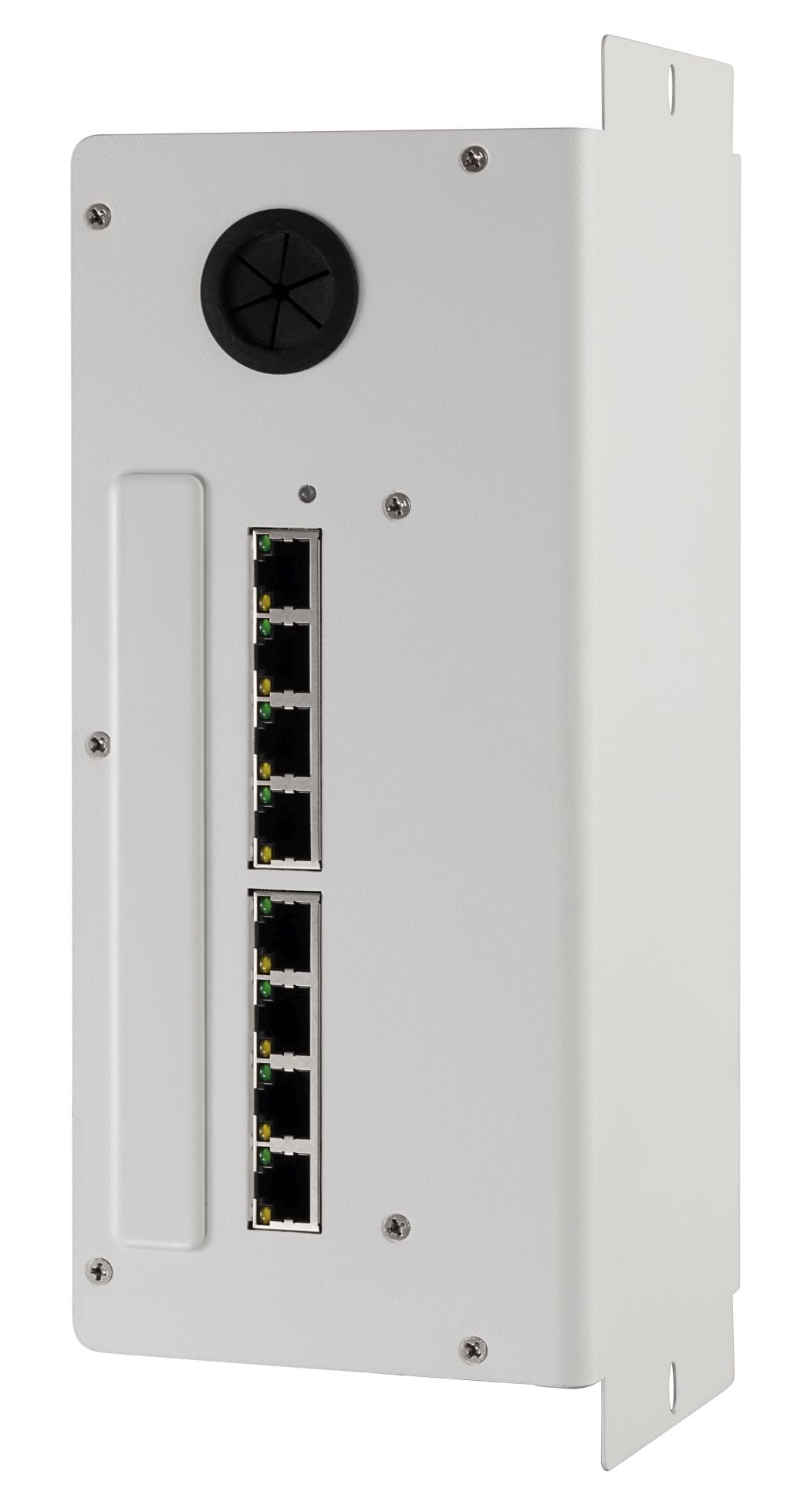

DS-KAD606

DS-KAD606 is an integrated Video/Audio distributor  supporting network cable power supply. It has a  built-in voltage-stabilized power and eight 10/100M  LAN interfaces, six of which support powering  through network cables. It is suitable for internet  connection of all-digital video intercom in residence  communities.          DS-KAD606         Built-in 24V DC voltage-stabilized switching mode power supply   Eight RJ45 interfaces, including six adaptive 10/100M LAN interfaces supporting network cable  powering and two adaptive 10/100M cascading LAN interfaces   IEEE802.3, IEEE802.3u, IEEE802.3x   Storing and forwarding function   VLAN technique   Over 1000,000h mean time between failure   Operating temperature range: from -30° C to 70° C   Suitable for wall mounting    Video/Audio Distributor    MAIN FEATURES    DS-KAD606    AVAILABLE MODELS      Spec of DS-KAD606 Video/Audio Distributor www.hikvision.com  2                            Model  Parameters  DS-KAD606  Network  Parameters

Warnung! Produkt aus der Produktion genommen!

Garantie: 24 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-KAD606 is an integrated Video/Audio distributor
supporting network cable power supply. It has a
built-in voltage-stabilized power and eight 10/100M
LAN interfaces, six of which support powering
through network cables. It is suitable for internet
connection of all-digital video intercom in residence
communities.




DS-KAD606



 Built-in 24V DC voltage-stabilized switching mode power supply
 Eight RJ45 interfaces, including six adaptive 10/100M LAN interfaces supporting network cable
powering and two adaptive 10/100M cascading LAN interfaces
 IEEE802.3, IEEE802.3u, IEEE802.3x
 Storing and forwarding function
 VLAN technique
 Over 1000,000h mean time between failure
 Operating temperature range: from -30° C to 70° C
 Suitable for wall mounting

Video/Audio Distributor

MAIN FEATURES

DS-KAD606

AVAILABLE MODELS


Spec of DS-KAD606 Video/Audio Distributor www.hikvision.com
2













Model
Parameters
DS-KAD606
Network
Parameters
Interface Number Eight 10/100M Interfaces
Interface Type
RJ45, Full/Half-Duplex, MDI/MDI-X
Self-Adaptive
Standard IEEE802.3, IEEE802.3u, IEEE802.3x
Processing Type Storing and Forwarding
Flow Control
IEEE802.3x(Full-Duplex),
Back Pressure(Half-Duplex)
Priority queue Four
MAC Address List 8K
Internal Buffer 1 Mbit
Other Parameters
Power Supply AC 220 V
Power Dissipation <3 W
Operating
Temperature
-30° C to 70° C (-22° F to 158° F)
Operating Humidity 5 to 95%, No Condensation
Size 275.2 mm (L) x 92 mm (W) x 102.2 mm (H)
Certification FCC, CE


TYPICAL APPLICATOIN

SPECIFICATION
Resident 2
Resident 2Resident 1
Resident 2
Resident 1
Resident 2
Resident 1
Resident 1
Indoor Stations
Network Cable
Door Station
Connect to the LAN
of Community via
Optical Fiber
Optical Fiber
4F
3F
2F
1F
-1F/G
Main Door Station
Video/Audio
Distributor
Switch
Video/Audio
Distributor
