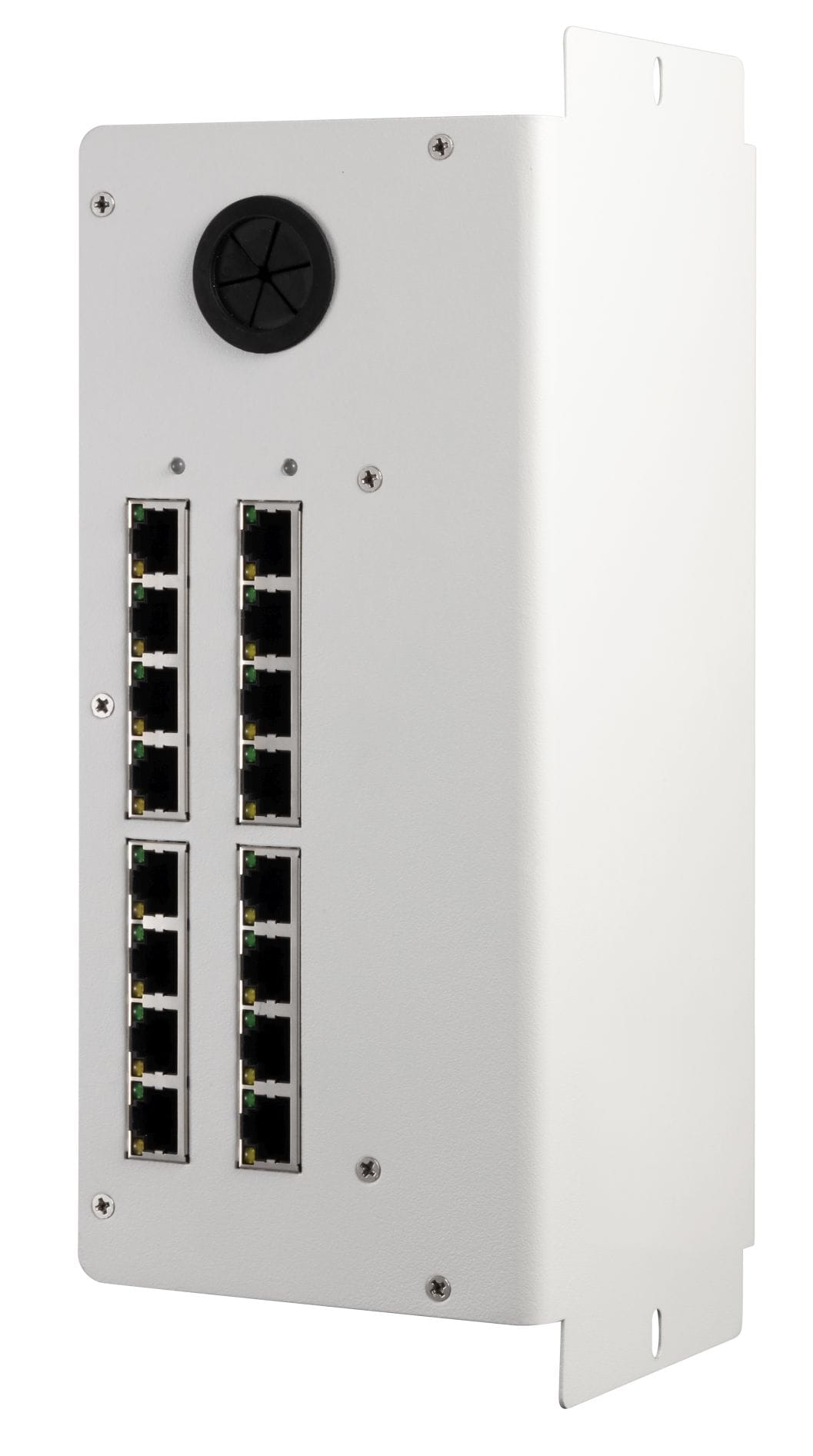

DS-KAD612

All IP Video Intercom Master Station  DS-KAD612 is an integratedvideo/audiodistributor  supportingnetworkcable power supply.It has a  built-in voltage-stabilized power and  sixteen10M/100M LAN interfaces, twelve of which  support powering through network cables. It is  suitable for internet connection ofall-digital  videointercom in residence communities.          DS-KAD612         Built-in 24V DC voltage-stabilized switching mode power supply   Sixteen RJ45 interfaces, including twelve adaptive 10M/100M LAN interfaces supporting  network cable powering and fouradaptive 10M/100M cascading LAN interfaces   IEEE802.3, IEEE802.3u, IEEE802.3x   Storing and forwardingfunction   VLAN technique   Over 1000,000 h mean time between failure   Operating temperature range: from-30°C to 70°C   Suitable for wall mounting    Video/Audio Distributor  MAIN FEATURES  DS-KAD612  AVAILABLE MODELS      Spec of DS-KAD612 Video/Audio Distributor www.hikvision.com  2                  Model  Parameters  DS-KAD612    Network  Parameters  Interface Number Sixteen 10M/100M Interfaces  Interface Type  RJ45...

Warnung! Produkt aus der Produktion genommen!

Garantie: 24 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

All IP Video Intercom Master Station
DS-KAD612 is an integratedvideo/audiodistributor
supportingnetworkcable power supply.It has a
built-in voltage-stabilized power and
sixteen10M/100M LAN interfaces, twelve of which
support powering through network cables. It is
suitable for internet connection ofall-digital
videointercom in residence communities.




DS-KAD612



 Built-in 24V DC voltage-stabilized switching mode power supply
 Sixteen RJ45 interfaces, including twelve adaptive 10M/100M LAN interfaces supporting
network cable powering and fouradaptive 10M/100M cascading LAN interfaces
 IEEE802.3, IEEE802.3u, IEEE802.3x
 Storing and forwardingfunction
 VLAN technique
 Over 1000,000 h mean time between failure
 Operating temperature range: from-30°C to 70°C
 Suitable for wall mounting

Video/Audio Distributor
MAIN FEATURES
DS-KAD612
AVAILABLE MODELS


Spec of DS-KAD612 Video/Audio Distributor www.hikvision.com
2








Model
Parameters
DS-KAD612

Network
Parameters
Interface Number Sixteen 10M/100M Interfaces
Interface Type
RJ45, Full/Half-Duplex, MDI/MDI-X
Self-Adaptive
Standard IEEE802.3, IEEE802.3u, IEEE802.3x
Processing Type Storing and Forwarding
Flow Control
IEEE802.3x(Full-Duplex),
Back Pressure(Half-Duplex)
Priority queue Four
MAC Address List 8K
Internal Buffer 1 Mbit
Other Parameters
Power Supply AC220V
Power Dissipation <6 W
Operating
Temperature
-30° C to 70° C (-22° F to 158° F)
Operating Humidity 5 to 95%, No Condensation
Size 275.2 mm (L) x 92 mm (W) x 102.2 mm (H)
Certification FCC, CE

TYPICAL APPLICATOIN
SPECIFICATION
Resident 2
Resident 2Resident 1
Resident 2
Resident 1
Resident 2
Resident 1
Resident 1
Indoor Stations
Network Cable
Door Station
Connect to the LAN
of Community via
Optical Fiber
Optical Fiber
4F
3F
2F
1F
-1F/G
Main Door Station
Switch

Video/Audio
Distributor
