DS-KAD709

DS-KAD709  Two-Wire Controller  Key Features   Supports 100-meter transmission (18 AG/17 WAG)   Supports 30-meter transmission (20 WAG)   Supports providing power supply for 1 door station and 1 indoor stations  simultaneously      Typical Application    Indoor Station 1  Indoor Station2  Indoor Station3  Indoor Station4Door Station  Controller      Draft                Model DS-KAD609-E  General  Power supply 24 VDC  Power consumption 60 W  Interface  1 RJ-45 Interface  8 Two-Wire Interfaces  Working  temperature -10° C to +55° C (14° F to 131° F)  Working humidity 10% to 90%  Installation Wall Mounting  Dimensions 110.2*107.6*66（mm）                                                        Index Description Index Description  1 Reset Button 4 1 RJ-45 Interface  2 Power Indicator 5 Power Supply Interface  3 9 Two-Wire Interface  Specifications  Appearance          Draft              0100001070511      Draft...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-KAD706

Ersatzproduktcode: 305301460

Garantie: 24 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-KAD709
Two-Wire Controller
Key Features
 Supports 100-meter transmission (18 AG/17 WAG)
 Supports 30-meter transmission (20 WAG)
 Supports providing power supply for 1 door station and 1 indoor stations
simultaneously


Typical Application

Indoor Station 1
Indoor Station2
Indoor Station3
Indoor Station4Door Station
Controller


Draft







Model DS-KAD609-E
General
Power supply 24 VDC
Power consumption 60 W
Interface
1 RJ-45 Interface
8 Two-Wire Interfaces
Working
temperature -10° C to +55° C (14° F to 131° F)
Working humidity 10% to 90%
Installation Wall Mounting
Dimensions 110.2*107.6*66（mm）



























Index Description Index Description
1 Reset Button 4 1 RJ-45 Interface
2 Power Indicator 5 Power Supply Interface
3 9 Two-Wire Interface
Specifications

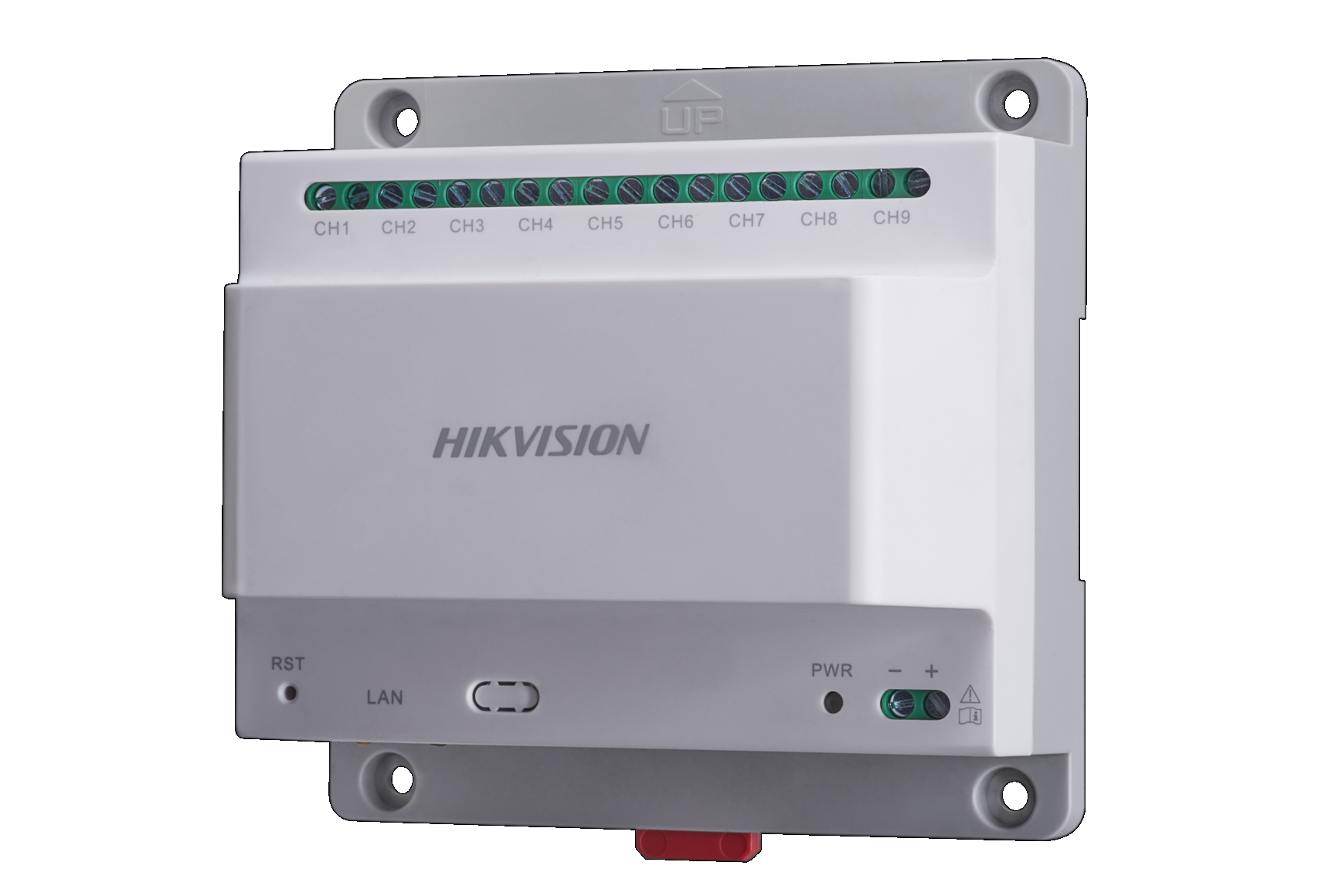

Appearance




Draft






0100001070511


Draft
