DS-KAW50-1

DS-KAW50-1         Short circuit protection, over load protection, and over power voltage protection   Mean Time Between Failure > 200,000 hrs   Natural air cooling   LED power indicator   100% full load aging   105℃ long life electrolytic capacitor   5 seconds 300VAC surge voltage input tolerance   Working Temperature: 70℃   Passes 5G vibration test            MAIN FEATURES    DS-KAW50-1    Power Supply for Door Station    Installation Dimension    MODEL  S      DS-KAW50-1 Power Supply for Door Station www.hikvision.com  2          Model DS-KAW50-1  Network Parameters  Input Voltage 100-240VAC  Output Voltage 12VDC  Output Current 4.17A  Output Power 50W  Noise and Ripple < 150mVpp  Voltage Adjustment Range 11-14Vdc  General Information  Work Temperature -10℃℃  ＜          SPECIFICATION...

Garantie: 24 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-KAW50-1



 Short circuit protection, over load protection, and over power voltage protection
 Mean Time Between Failure > 200,000 hrs
 Natural air cooling
 LED power indicator
 100% full load aging
 105℃ long life electrolytic capacitor
 5 seconds 300VAC surge voltage input tolerance
 Working Temperature: 70℃
 Passes 5G vibration test





MAIN FEATURES

DS-KAW50-1

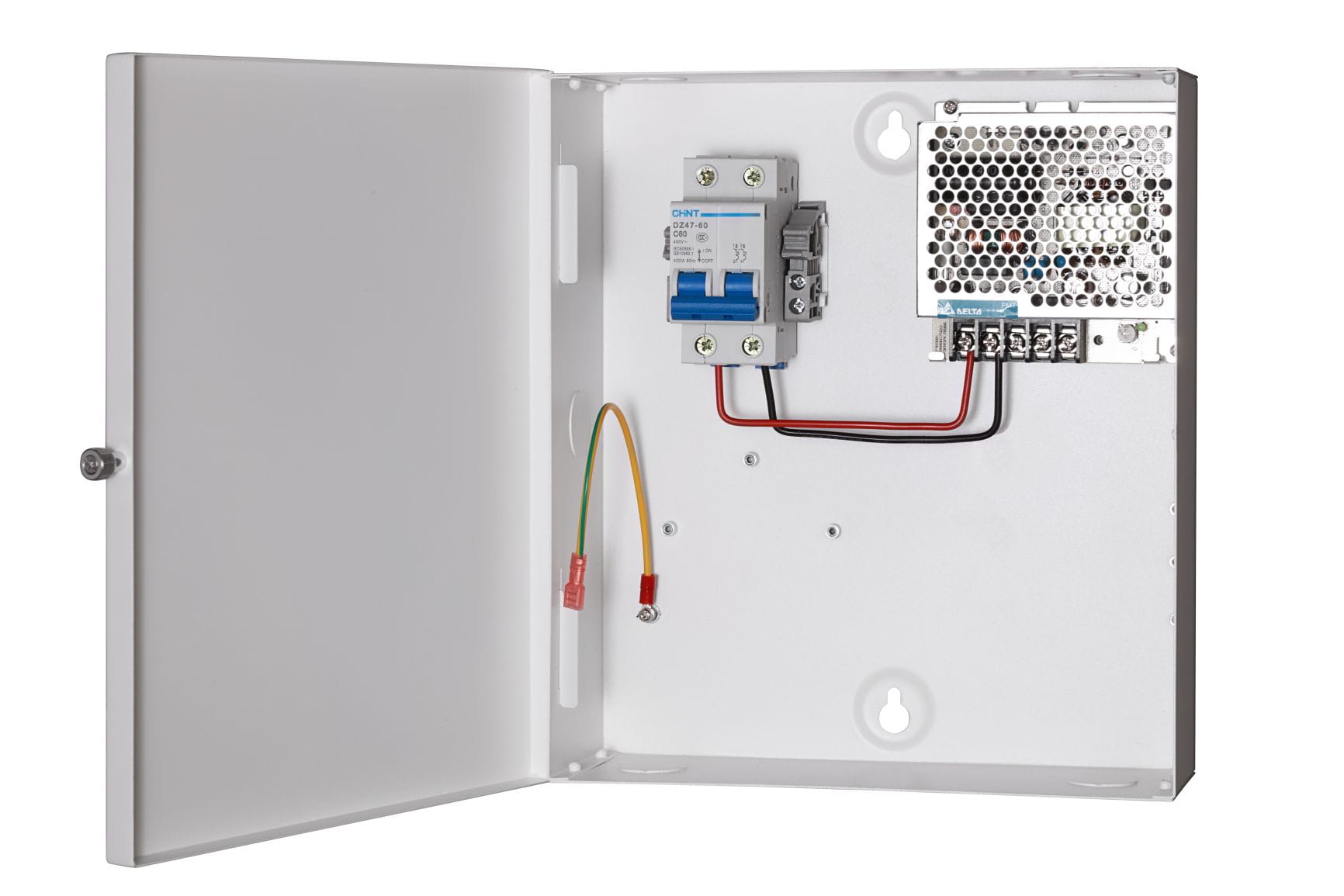

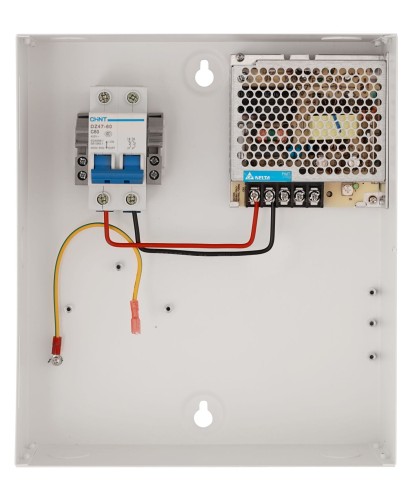

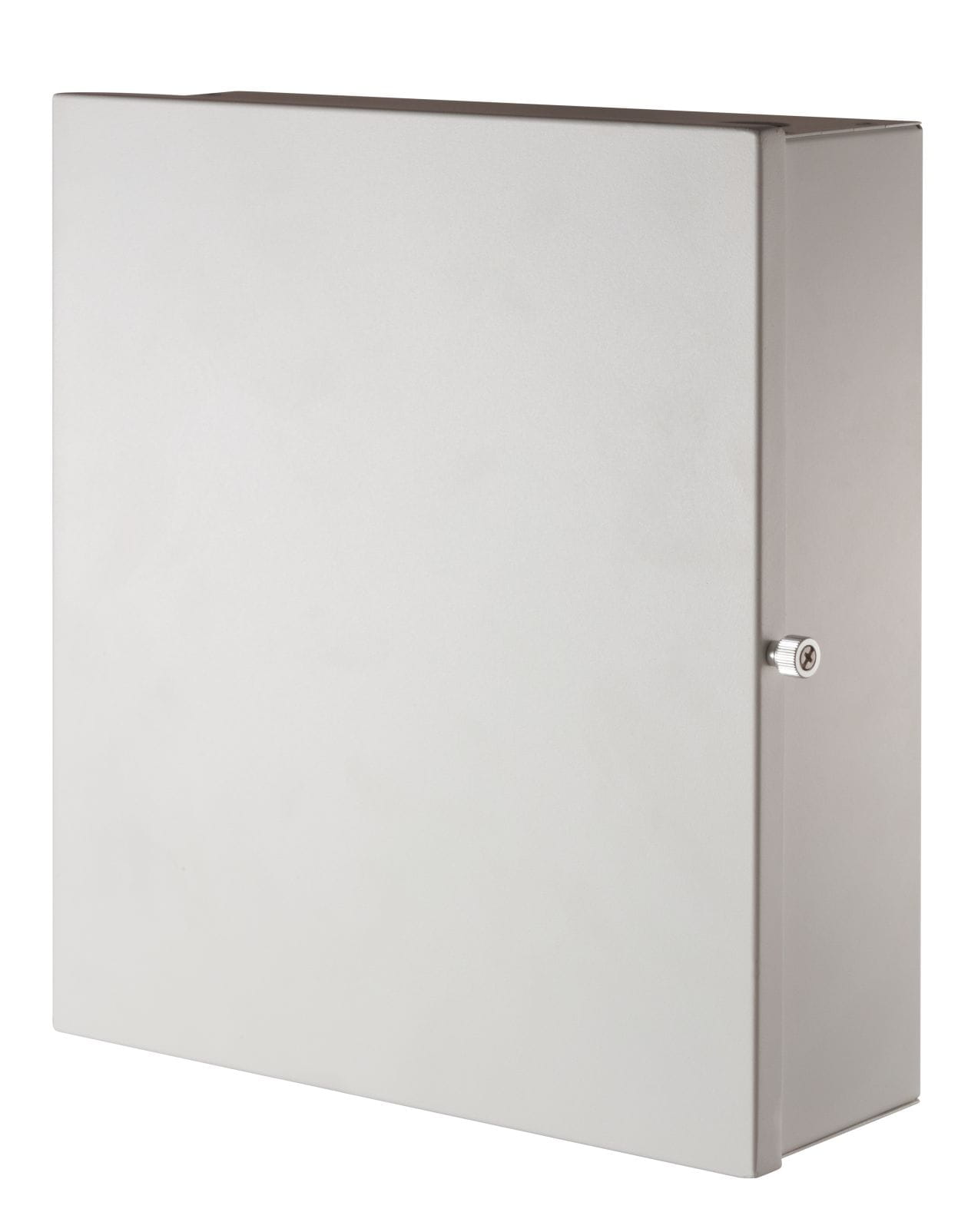

Power Supply for Door Station

Installation Dimension

MODEL
S


DS-KAW50-1 Power Supply for Door Station www.hikvision.com
2




Model DS-KAW50-1
Network Parameters
Input Voltage 100-240VAC
Output Voltage 12VDC
Output Current 4.17A
Output Power 50W
Noise and Ripple < 150mVpp
Voltage Adjustment Range 11-14Vdc
General Information
Work Temperature -10℃℃
＜




SPECIFICATION
