DS-KB2411-IM
product unavailable
zur Wunschliste hinzufügenBeschreibung
DS-KB2411-IM Video Intercom Door Station Key Features Hands-free video intercom communication Supports two door stations in the intercom system Self-adaptive IR supplement (with photoresistor) One-touch calling Pinhole camera with 720 x 576 @ 25 fps Unlock controlling Anti-oxidant aluminium alloy Wall mounting supported Convenient installation with/without the junction box Typical Application Door Station Indoor Station 2 Indoor Station 3 Indoor Station 1 Analog Camera 3 Analog Camera 2 Analog Camera 1 Electric Lock Four-Core Cable Block to BNC Cable Electric Lock Connection Cable Model DS-KB2411-IM Video parameters Camera 1/4" CMOS Resolution 720 x 576 Video frame rate PAL: 25 fps Audio parameters Audio input Built-in Omnidirectional Microphone Audio output Built-in Loudspeaker Audio quality Noise Suppression and Echo Cancellation Light supplement Light supplement mode Photosensitive IR Supplement, IR Range: 2 Meters Device interfaces Four-wire interface 1 Four-Wire Interface...
Warnung! Produkt aus der Produktion genommen!
Garantie: 24 mon.
Datentabelle
Textinhalt des PDF-Datenblattes:

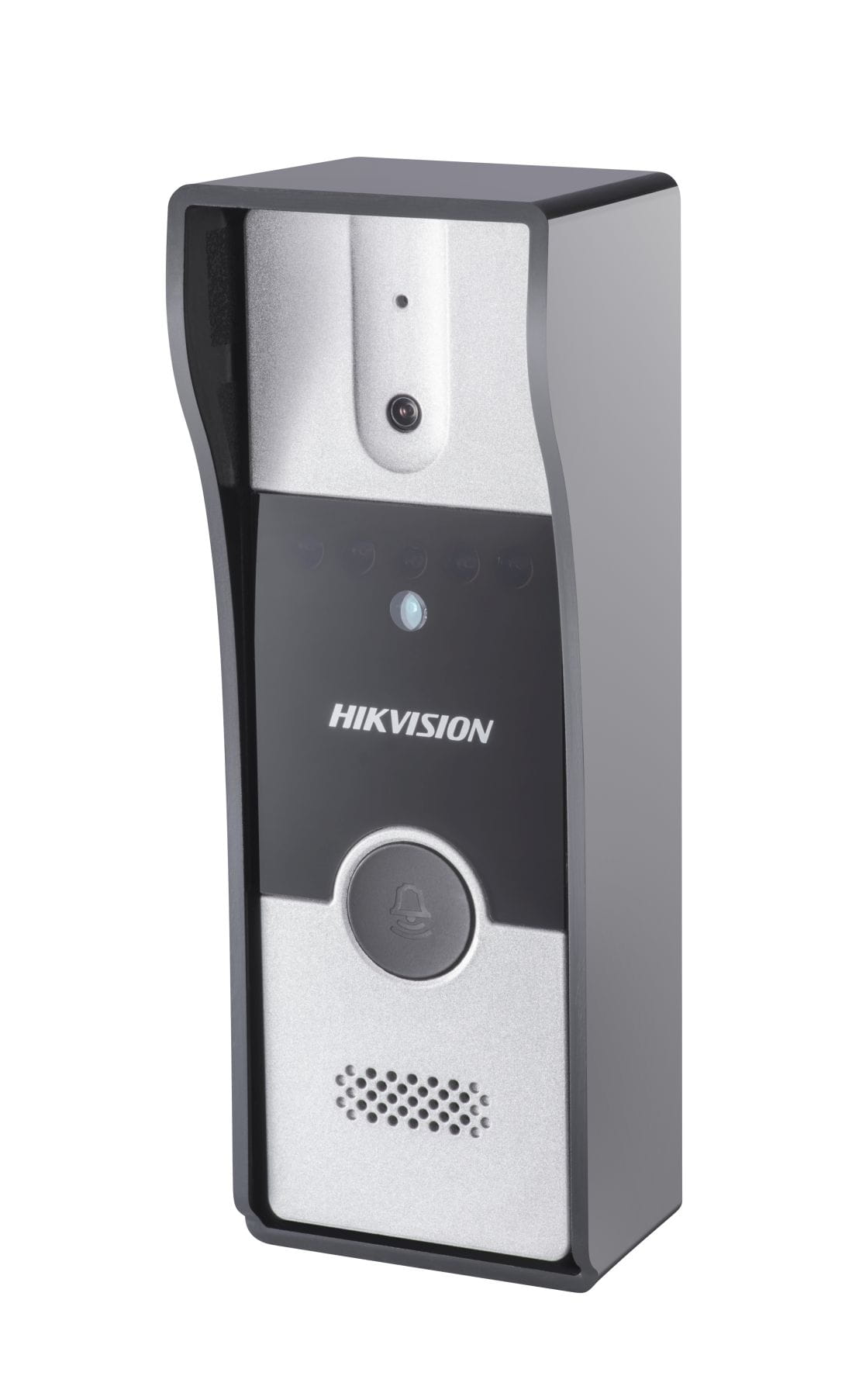

DS-KB2411-IM
Video Intercom Door Station
Key Features
Hands-free video intercom communication
Supports two door stations in the intercom system
Self-adaptive IR supplement (with photoresistor)
One-touch calling
Pinhole camera with 720 x 576 @ 25 fps
Unlock controlling
Anti-oxidant aluminium alloy
Wall mounting supported
Convenient installation with/without the junction box
Typical Application
Door Station
Indoor Station 2
Indoor Station 3
Indoor Station 1
Analog Camera 3
Analog Camera 2
Analog Camera 1
Electric Lock
Four-Core Cable
Block to BNC Cable
Electric Lock
Connection Cable
Model DS-KB2411-IM
Video
parameters
Camera 1/4" CMOS
Resolution 720 x 576
Video frame rate PAL: 25 fps
Audio
parameters
Audio input Built-in Omnidirectional Microphone
Audio output Built-in Loudspeaker
Audio quality Noise Suppression and Echo Cancellation
Light
supplement
Light supplement
mode
Photosensitive IR Supplement, IR Range: 2 Meters
Device
interfaces
Four-wire interface
1 Four-Wire Interface (1-ch Video Input, 1-ch Audio
Input/Output, 1-ch Power Supply, 1-ch Grounding)
I/O output 1 Relay Output
General
Material Aluminum Alloy
Power
consumption
Max. 3W
Working
temperature
-30° C to +60° C (-22° F to 140° F)
Working humidity 10% to 90%
Dimensions
(L x W x H)
128 mm x 42 mm x 24.8 mm (5.0" x 1.7" x 0.9")
Specifications
Index Description
1 Microphone
2 Built-in Camera
3 Supplement Light
4 Photoresistor
5 Call Button
6 Loudspeaker

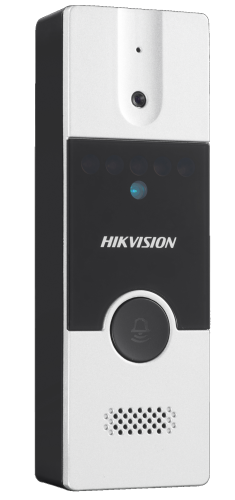

Appearance and Interfaces
20160112
Available Model
DS-KB2411-IM
0100001060617
