DS-KD-IN

DS-KD-IN  Indicator Module    Key Feature  DS-KD-IN             Indicates the device status: calling, opening door and two-way audio   Backlight compensation   Easy to and extend    Available Model                                                    Model DS-KD-IN  System  parameter  Processor Embedded MCU Processor  Interfaces  Module-connecting 2(1 Input, 1 Output)  Debug 1  General  DIP switch 8  Power input 12 VDC(Powered by the other module)  Power output 12 VDC(Powered for the other module)  Power consumption ≤2W  Working temperature -40° C to +60° C(-40° F to 140° F)  Working humidity 10% to 95%  IP protection level IP65  Installation Flush Mounting, Surface Mounting  Dimensions  (L x W x H)  98.5 mm x 100 mm x 33.7 mm (3.87" x 3.95" x 1.33")  No. Description  1 Calling Indicator  2 Two-way Audio Indicator  3 Unlock Indicator  4 Module-connecting Interface(output)  5 Module-connecting Interface(input)  6 Debug Port  Appearance and Interface    Specification

Garantie: 24 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

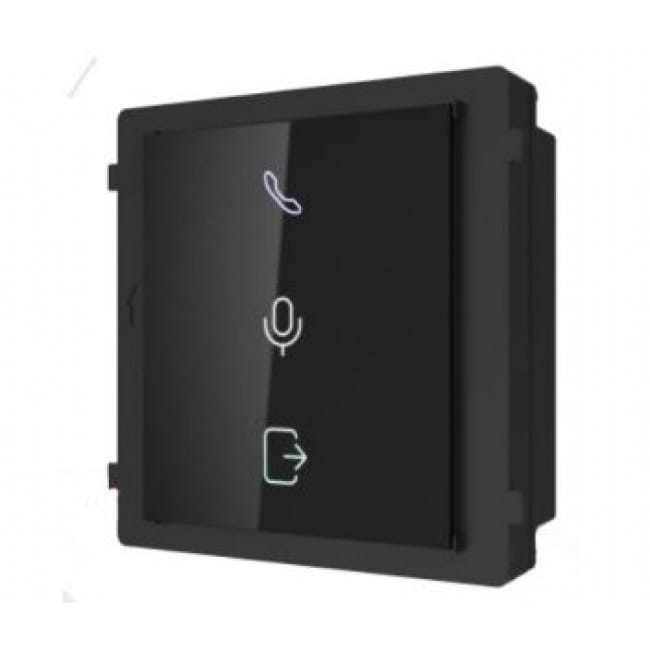

DS-KD-IN
Indicator Module

Key Feature
DS-KD-IN





 Indicates the device status: calling, opening door and two-way audio
 Backlight compensation
 Easy to and extend

Available Model

























Model DS-KD-IN
System
parameter
Processor Embedded MCU Processor
Interfaces
Module-connecting 2(1 Input, 1 Output)
Debug 1
General
DIP switch 8
Power input 12 VDC(Powered by the other module)
Power output 12 VDC(Powered for the other module)
Power consumption ≤2W
Working temperature -40° C to +60° C(-40° F to 140° F)
Working humidity 10% to 95%
IP protection level IP65
Installation Flush Mounting, Surface Mounting
Dimensions
(L x W x H)
98.5 mm x 100 mm x 33.7 mm (3.87" x 3.95" x 1.33")
No. Description
1 Calling Indicator
2 Two-way Audio Indicator
3 Unlock Indicator
4 Module-connecting Interface(output)
5 Module-connecting Interface(input)
6 Debug Port
Appearance and Interface

Specification















Typical Application
20190107
