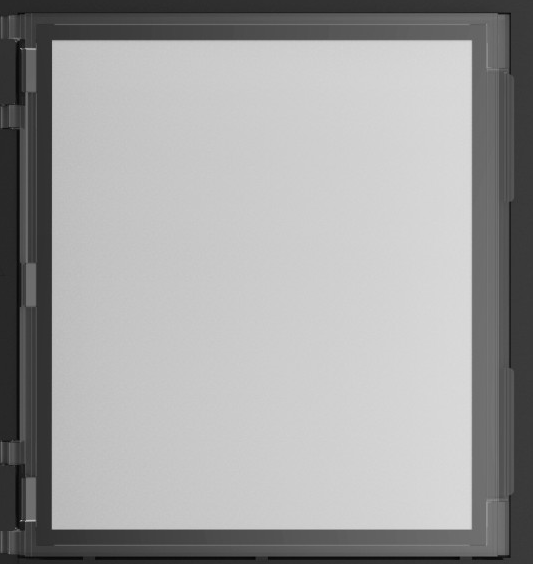

DS-KD-INFO
Information Module



Key Feature
* Displays information
* Backlight auto switch according to the environmental conditions
* Easy to extend
Typical Application

Approval
CE-EMC
a. EN 55032:2015
b. EN 61000-3-2:2014
c. EN 61000-3-3:2013
d. EN 50130-4:2011 +A1:2014
CE-LVD
EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011
+ A2:2013
CB
IEC 60950-1:2005 (Second Edition) + Am 1:2009 +
Am 2:2013
C-
TICK(EMC)
AS/NZS CISPR 32:2015
ROHS 2011/65/EU
REACH Regulation (EC) No 1907/2006
WEEE 2012/19/EU





Specification
System parameters
Operation
method
Backlight controlled via client software
Interfaces
Module-
connecting
2 (1 input, 1 output)
Debugging port 1
General
DIP switch 8
Power supply 12 VDC (powered by the other module)
Power output 12 VDC (powered for the other module)
Power
consumption
≤ 1.5 W
Working
temperature
-20 °C to 60 °C(-4 °F to 140 °F)
Working
humidity
10% to 95%
Installation Flush mounting, surface mounting
Dimension
98.42 mm x 94.4 mm x 33.8 mm (3.87" x
3.72" x 1.34")
Available Model
DS-KD-INFO
Appearance and Interfaces

No. Description
1 Display Area
2 Module-connecting Interface(Output)
3 Module-connecting Interface(Input)
4 Debugging Port

Dimension

Accessory
Optional


DS-KD-ACF1/Plastic DS-KD-ACF2/Plastic


DS-KD-ACF3/Plastic DS-KD-ACW1


DS-KD-ACW2 DS-KD-ACW3
