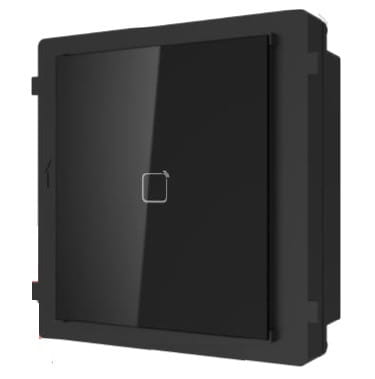

DS-KD-M
product unavailable
zur Wunschliste hinzufügenBeschreibung
DS-KD-M/E Card Reader Module Key Feature DS-KD-M (13.56 MHz) DS-KD-E (125 KHz) Supports unlock the door via swiping cards Supports issuing cards Backlight compensation Easy to and extend Available Model Model DS-KD-M DS-KD-E System parameters Processor Embedded MCU Processor Internal card reader Built-in Card Reader Interfaces Module-connecting 2(1 Input, 1 Output) General Card type Mifare Card EM Card DIP switch 8 Power input 12 VDC(Powered by the other module) Power output 12 VDC(Powered for the other module) Power consumption ≤2 W Working temperature -40° C to +60° C(-40° F to 140° F) Working humidity 10% to 95% IP protection level IP65 Installation Flush Mounting, Surface Mounting Dimensions (L x W x H) 98.5 mm x 100 mm x 33.7 mm (3.87" x 3.95" x 1.33") No. Description 1 Card Reading Area 2 Module-connecting Interface(output) 3 Module-connecting Interface(input) 4 Debug Port Appearance and Interface <...
Garantie: 24 mon.
Datentabelle
Textinhalt des PDF-Datenblattes:
DS-KD-M/E
Card Reader Module
Key Feature
DS-KD-M (13.56 MHz)
DS-KD-E (125 KHz)
Supports unlock the door via swiping cards
Supports issuing cards
Backlight compensation
Easy to and extend
Available Model
Model DS-KD-M DS-KD-E
System
parameters
Processor Embedded MCU Processor
Internal card reader Built-in Card Reader
Interfaces Module-connecting 2(1 Input, 1 Output)
General
Card type Mifare Card EM Card
DIP switch 8
Power input 12 VDC(Powered by the other module)
Power output 12 VDC(Powered for the other module)
Power consumption ≤2 W
Working temperature -40° C to +60° C(-40° F to 140° F)
Working humidity 10% to 95%
IP protection level IP65
Installation Flush Mounting, Surface Mounting
Dimensions
(L x W x H)
98.5 mm x 100 mm x 33.7 mm (3.87" x 3.95" x 1.33")
No. Description
1 Card Reading Area
2 Module-connecting Interface(output)
3 Module-connecting Interface(input)
4 Debug Port
Appearance and Interface
Specification
Typical Application
20190128
