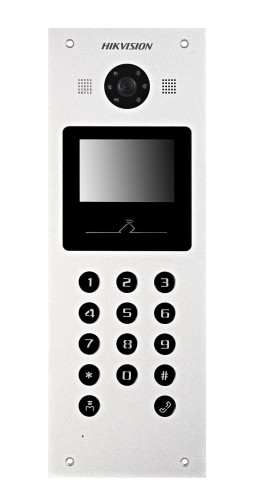

DS-KD3002-VM

DS-KD3002-VM  Video Intercom Metal Door Station    Key Features    Basic Functions   Video intercom function   Access control function   Issues cards via door station, up to Max. 2500 cards, via outer door station, up to 50000 cards  (This function will be invalid if the card has been issued via the client.)   Card readers supported   Self-adaptive visible light supplement  Video/Audio Functions   HD video surveillance with high performance CMOS   Noise suppression and echo cancellation   H.264 video compression   Low illumination  Remote Control   Remote unlocking via the client or the app   Remotely answering the call via the client or the app  Alarm Functions   Tampering alarm and door magnetic alarm supported   Auto-uploads alarm messages to master station or the client once the duress code is entered to  open the door  Additional Features   Message notification function   Auto-uploads captured pictures to FTP or the client while unlocking the door                Model DS-KD3002-VM  System  parameters  Processor High-Performance Embedded SOC Processor  Operation system Embedded Linux Operation System  Video ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 24 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-KD3002-VM
Video Intercom Metal Door Station

Key Features

Basic Functions
 Video intercom function
 Access control function
 Issues cards via door station, up to Max. 2500 cards, via outer door station, up to 50000 cards
(This function will be invalid if the card has been issued via the client.)
 Card readers supported
 Self-adaptive visible light supplement
Video/Audio Functions
 HD video surveillance with high performance CMOS
 Noise suppression and echo cancellation
 H.264 video compression
 Low illumination
Remote Control
 Remote unlocking via the client or the app
 Remotely answering the call via the client or the app
Alarm Functions
 Tampering alarm and door magnetic alarm supported
 Auto-uploads alarm messages to master station or the client once the duress code is entered to
open the door
Additional Features
 Message notification function
 Auto-uploads captured pictures to FTP or the client while unlocking the door







Model DS-KD3002-VM
System
parameters
Processor High-Performance Embedded SOC Processor
Operation system Embedded Linux Operation System
Video
parameters
Camera CMOS Low Illumination 1.3 MP HD Colorful Camera
Video compression
standard
H.264
Resolution 1280 x 720
Video frame rate PAL: 25 fps, NTSC: 30 fps
Display
parameters
Display screen 3.5-Inch Colorful TFT LCD
Display resolution 480 x 320
Operation method Physical Touch Keypad
Operation interface LCD Display, Easy Menu
Audio
parameters
Audio input Built-in Omnidirectional Microphone
Audio output Built-in Loudspeaker
Audio compression
standard
G.711 U
Audio compression
rate
64 Kbps
Audio quality Noise Suppression and Echo Cancellation
Access
control
parameters
Internal card reader Built-in IC Card Reader
External card reader Wiegand 26, Wiegand 34, or RS-485 IC Reader
Door magnetic
detection
Detects Door Magnetic Status
Light
supplement
Light supplement
mode
Visible Light Supplement
Network
parameters
Ethernet 10/100/1000 Mbps Self-Adaptive Ethernet
Network protocol TCP/IP, RTSP
Alarm
parameters
Alarm input Door Magnetic Alarm, Tampering Alarm
Device
interfaces
Network interface 1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
RS-485 1 RS-485 Half-Duplex Port
I/O input 4
I/O output 4
Wiegand 1 Wiegand Port for Accessing Wiegand IC Card Reader
USB 1 USB 2.0, Supporting U-Disk
General
Material Aluminum Alloy
Power supply 12 VDC
Power consumption ≤15 W
Working temperature -40° C to +60° C (-40° F to 140° F)
Working humidity 10% to 90%
IP protection level IP65
Dimensions
(L x W x H)
357 mm x 124 mm x 55 mm (14.1" x 4.9" x 2.2")
Certification FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Specifications


















































DS-KD3002-VM

Typical Application
Available Model
PC Client
Center Master
Station


Network
Camera
Master Station
(Guarding Room)
Outer Door Station



Card Reader


Card Reader



Indoor
Extension1
Indoor
Extension2
Elevator Controller

LAN
1F
2F
22F
Resident 1Resident 2
Resident 1Resident 2
Resident 1Resident 2
A Building

Door Station








Index Description Index Description
1 Low Illumination Supplement Light 6 Numeric Keypad
2 Loudspeaker 7 Call Key
3 Built-in Camera 8 Call Center Key
4 LCD Display Screen 9 Microphone
5 Card Induction Area 10 TAMPER
Appearance and Interfaces

20170817
