DS-KD8002-2A

DS-KD8002-VM



 Video intercom function
 HD video surveillance (Max. resolution 1280 x 720@25fps, WDR, 120° wide angle)
 Self-adaptive light supplement
 Access control function
 Activating card via local station function (This function will be invalid if the card has been
activated via iVMS-4200)
 Auto-uploading captured pictures to FTP or iVMS-4200 Client while unlocking the door
 Door magnetic alarm and tamper-proof alarm function
 Noise suppression and echo cancellation
 Remote upgrade, batch setting, upgrade via USB flash disk functions

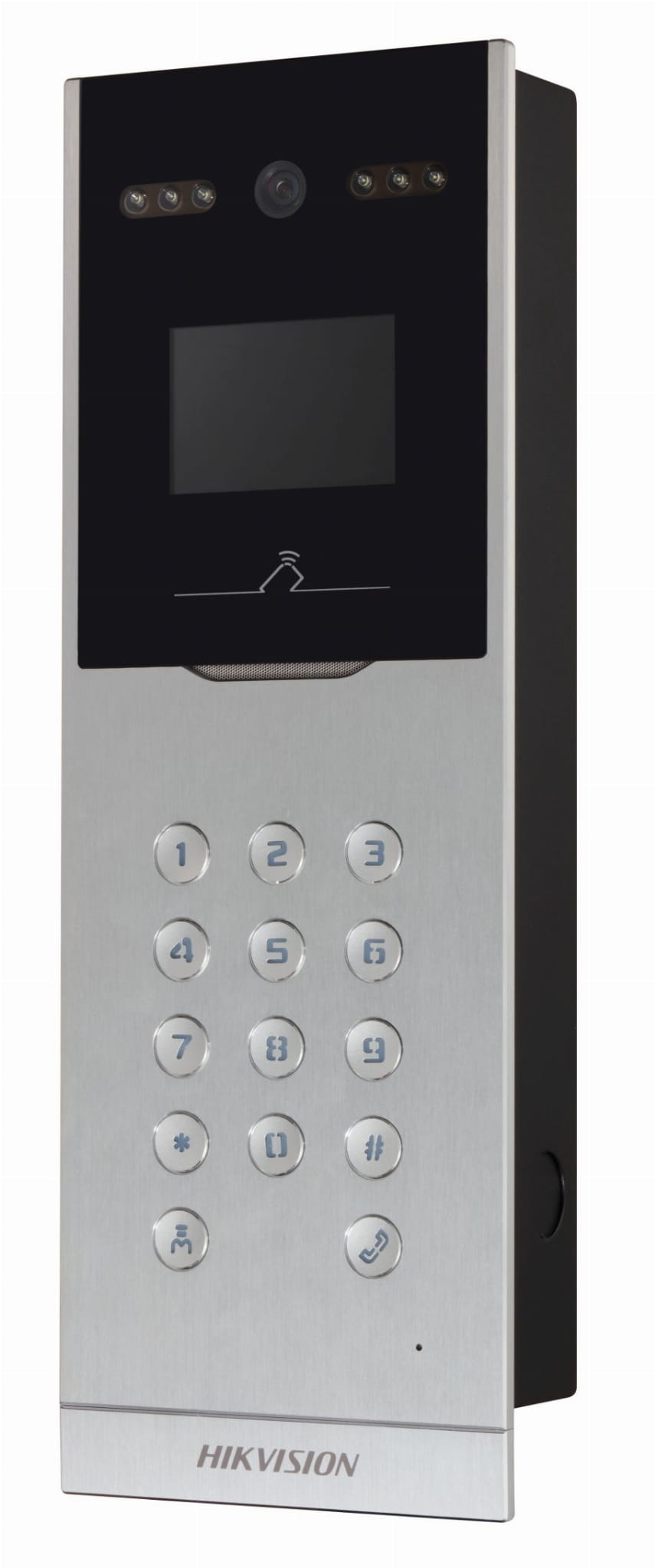

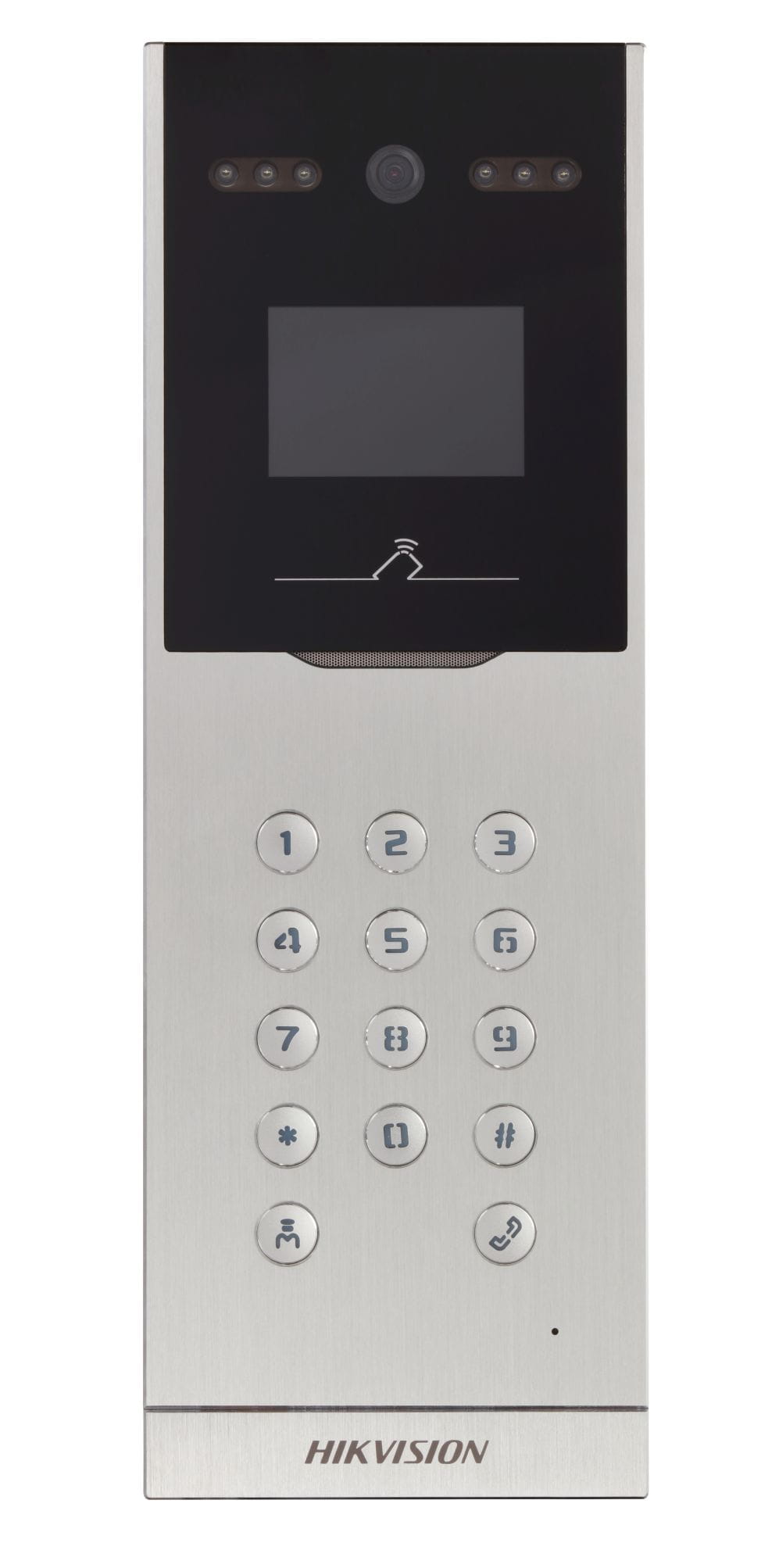

Metal Door Station

MAIN FEATURES

DS-KD8002-VM

AVAILABLE MODELS


Spec of DS-KD8002-VM Door Station www.hikvision.com
2
















Model
Parameters
DS-KD8002-VM
System Parameters
Processor High-performance Embedded SOC Processor
Operation System Embedded Linux OS
Video Parameters
Camera
CMOS Low Illumination 1.3 MP HD Colorful
Camera
Video Compression
Standards
H.264
Resolution 1280 x 720
Video Frame PAL: 25 fps, NTSC: 30 fps
Display Parameters
Display Screen 3.5-Inch Colorful TFT LCD
Resolution 480 x 320
Operation Method Physical Touch Keypad
Operation Interface LCD Display, Easy Menu
Audio Parameters
Audio Input Built-in Omnidirectional Microphone
Audio Output Built-in Loudspeaker
Audio Compression
Standard
G.711 U

TYPICAL APPLICATOIN

SPECIFICATION
Resident 2
Resident 2Resident 1
Resident 2
Resident 1
Resident 2
Resident 1
Resident 1
Indoor Stations
Network Cable
Door Station
Connect to the LAN
of Community via
Optical Fiber
Optical Fiber
4F
3F
2F
1F
-1F/G
Main Door Station
Video/Audio
Distributor
Switch
Video/Audio
Distributor



Spec of DS-KD8002-VM Door Station www.hikvision.com
3

Model
Parameters
DS-KD8002-VM
Audio Compression
Rate
64 Kbps
Audio Quality Noise Suppression and Echo Cancellation
Access Control
Parameters
Internal Card Reader Built-in IC Card Reader
External Card Reader Wiegand 26, Wiegand 34, or RS485 IC Reader
Door Magnetic
Detection
Detecting Door Magnetic Status
Light Supplement
Light Supplement
Mode
Visible Light Supplement
Network
Parameters
Ethernet 10M/100M/1000M Self-Adaptive Ethernet
Network Protocol TCP/IP, SNMP, SIP, RTSP
Alarm Parameters Alarm Input Door Magnetic Alarm, Tamper Alarm
Device Interfaces
Internet Access
1 RJ45 10M/100M/1000M Self-Adaptive
Ethernet Access
RS-485 1 RS485 Half-Duplex Port
IO Input 8
IO Output 4
Wiegand
1 Wiegand Port for Accessing Wiegand IC Card
Reader
USB 1; USB2.0, Supporting U-disk
Other Parameters
Material Aluminum Ally
Power Supply 12V DC
Consumption ≤12 W
Working Temperature -40° C to +70° C (-40° F to 158° F)
Working Humidity 10% - 90%
IP Protection Level IP65
Dimension 418 mm x 145 mm x 61 mm (16.5 x 5.7 x 2.4")
Certification FCC, CE
