DS-KD8102-V

All IP Video Intercom Master Station            DS-KD8102-V         Video intercom function   HD video surveillance (Max. resolution 1280x720@30fps, WDR, 120° wide angle)   Self-adaptive light supplement   Access control function   Activating card via local station function (This function will be invalid if the card has been  activated via iVMS-4200)   Auto-uploading captured pictures to FTP or iVMS-4200 Client while unlocking the door   Door magnetic alarm and tamper-proof alarm function   Noise suppression and echo cancellation   IR detection   Remote upgrade, batch setting, upgrade via USB flash disk functions    Door Station    MAIN FEATURES    DS-KD8102-V    AVAILABLE MODELS      Spec of DS-KD8102-V Door Station www.hikvision.com  2                                  Model  Parameters  DS-KD8102-V  System  Parameters  Processor High-Performance Embedded SOC Processor  Operation System Embedded Linux OS  Video Parameters  Camera  CMOS Low Illumi...

Warnung! Produkt aus der Produktion genommen!

Garantie: 24 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

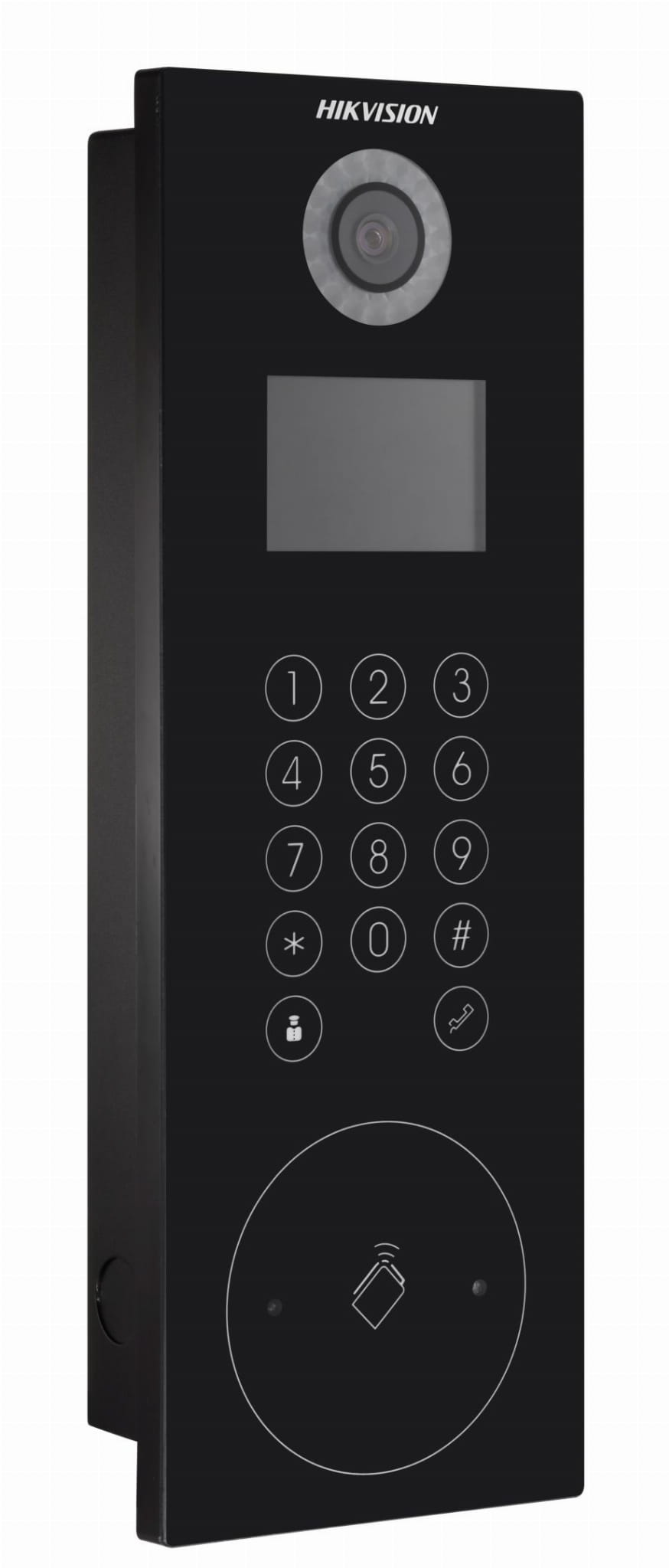

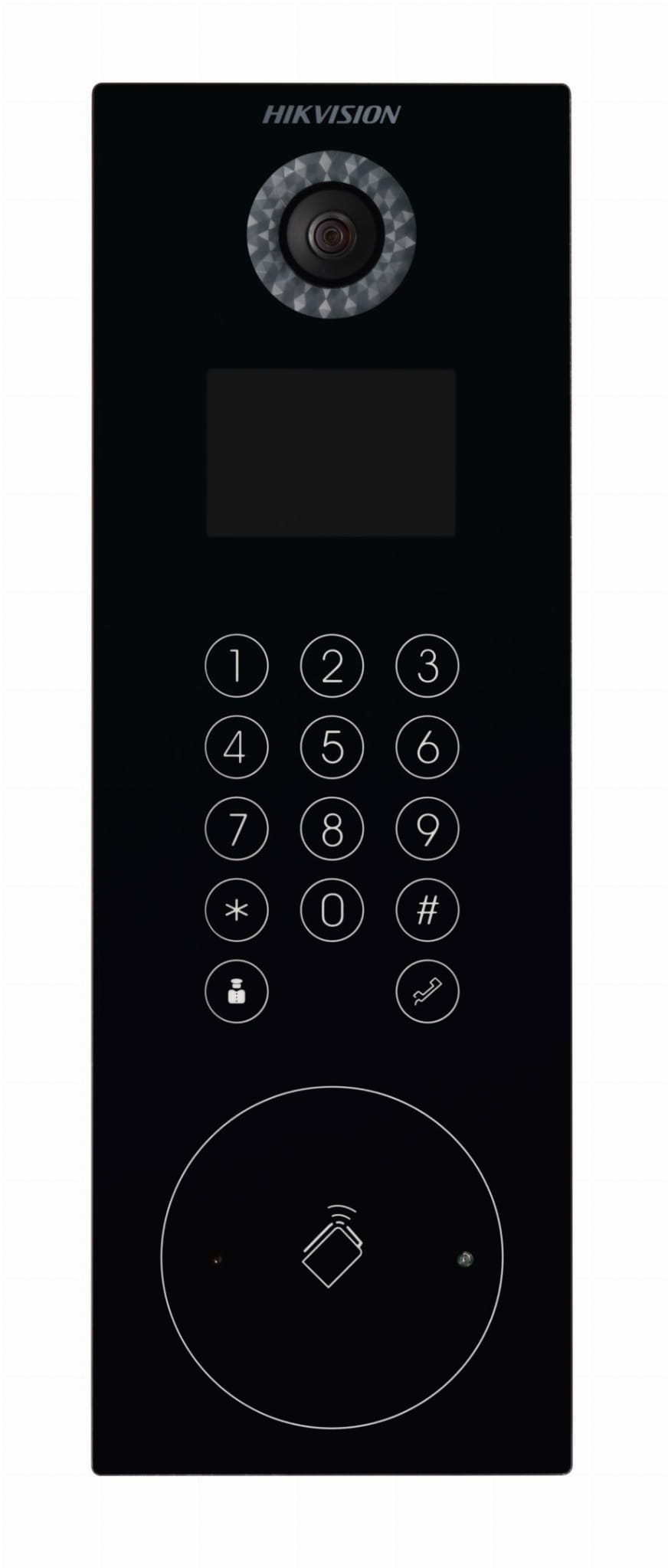

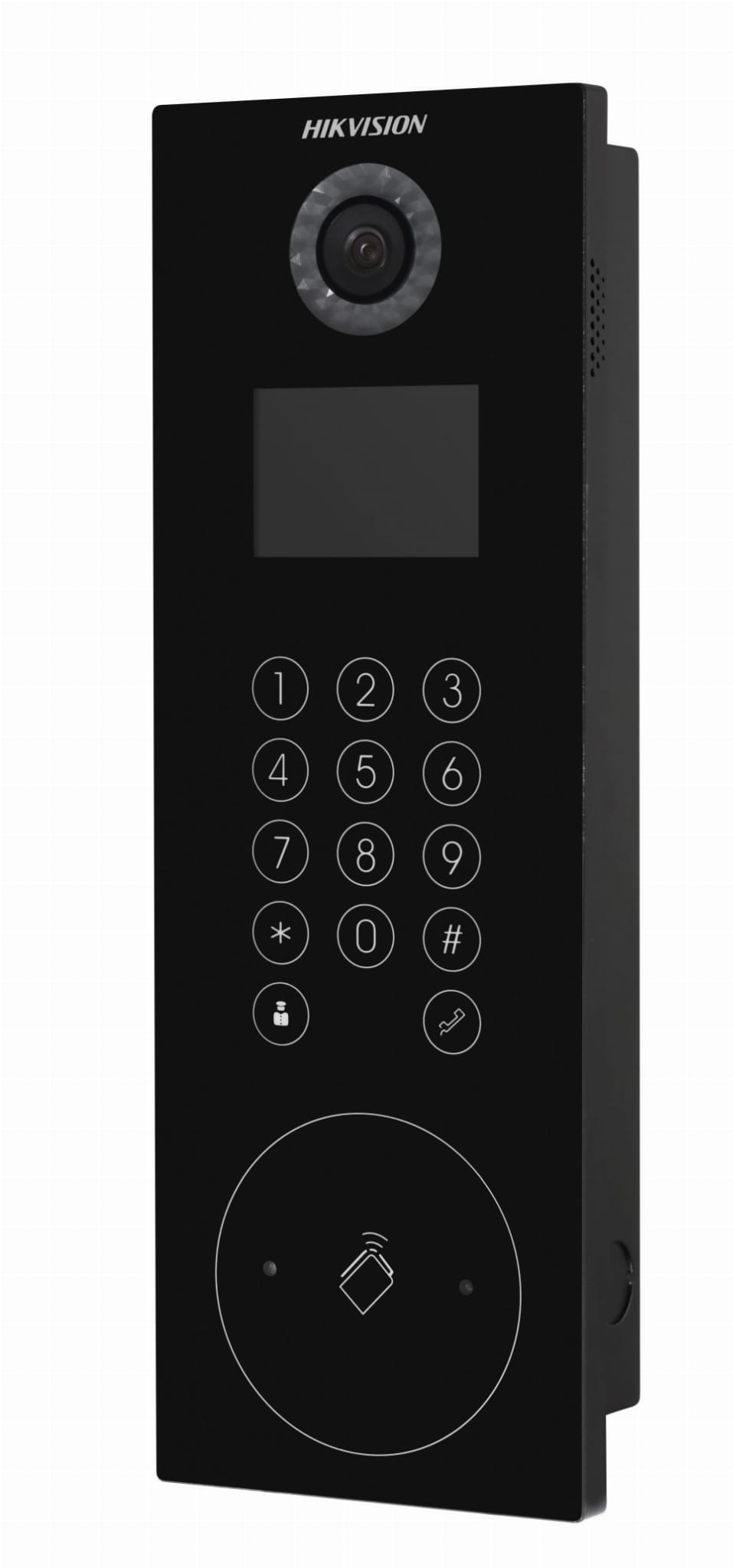

All IP Video Intercom Master Station





DS-KD8102-V



 Video intercom function
 HD video surveillance (Max. resolution 1280x720@30fps, WDR, 120° wide angle)
 Self-adaptive light supplement
 Access control function
 Activating card via local station function (This function will be invalid if the card has been
activated via iVMS-4200)
 Auto-uploading captured pictures to FTP or iVMS-4200 Client while unlocking the door
 Door magnetic alarm and tamper-proof alarm function
 Noise suppression and echo cancellation
 IR detection
 Remote upgrade, batch setting, upgrade via USB flash disk functions

Door Station

MAIN FEATURES

DS-KD8102-V

AVAILABLE MODELS


Spec of DS-KD8102-V Door Station www.hikvision.com
2
















Model
Parameters
DS-KD8102-V
System
Parameters
Processor High-Performance Embedded SOC Processor
Operation System Embedded Linux OS
Video Parameters
Camera
CMOS Low Illumination 1.3 MP HD Colorful
Camera
Video Compression
Standards
H.264
Resolution 1280 x 720
Video Frame PAL: 25 fps, NTSC: 30 fps
Display
Parameters
Display Screen 3.5-Inch Colorful TFT LCD
Resolution 480 x 320
Operation Method Capacitive Touch Keypad
Operation Interface LCD Display, Easy Menu
Audio Parameters
Audio Input Built-in Omnidirectional Microphone
Audio Output Built-in Loudspeaker
Audio Compression
Standard
G.711 U
Audio Compression Rate 64 Kbps

TYPICAL APPLICATOIN

SPECIFICATION
Resident 2
Resident 2Resident 1
Resident 2
Resident 1
Resident 2
Resident 1
Resident 1
Indoor Stations
Network Cable
Door Station
Connect to the LAN
of Community via
Optical Fiber
Optical Fiber
4F
3F
2F
1F
-1F/G
Main Door Station
Video/Audio
Distributor
Switch
Video/Audio
Distributor





Spec of DS-KD8102-V Door Station www.hikvision.com
3

Model
Parameters
DS-KD8102-V
Audio Quality Noise Suppression and Echo Cancellation
Access Control
Parameters
Internal Card Reader Built-in IC Card Reader
External Card Reader Wiegand 26, Wiegand 34, or RS485 IC Reader
Door Magnetic Detection Detecting Door Magnetic Status
IR Human
Detection
Approaching Detection
Supporting IR Detection, Vertical Distance:
from 60 cm to 80 cm
Light Supplement Light Supplement Mode Visible Light Supplement
Network
Parameters
Ethernet 10M/100M/1000M Self-Adaptive Ethernet
Network Protocol TCP/IP, SNMP, SIP, RTSP
Alarm Parameters Alarm Input Door Magnetic Alarm, Tamper Alarm
Device Interfaces
Internet Access
1 RJ45 10M/100M/1000M Self-Adaptive
Ethernet Access
RS485 1 RS485 Half-Duplex Port
I/O Input 8
I/O Output 4
Wiegand
1 Wiegand Port for Accessing Wiegand IC
Card Reader
USB 1; USB2.0, Supporting U-disk
Other Parameters
Material Plastic
Power Supply 12V DC
Consumption ≤12 W
Working Temperature -40° C to + 70° C (-40° F to 158° F)
Working Humidity 10% - 90%
IP Protection Level IP65
Dimension
418 mm x 145 mm x 61 mm (16.5 x 5.7 x
2.4")
Certification FCC, CE
