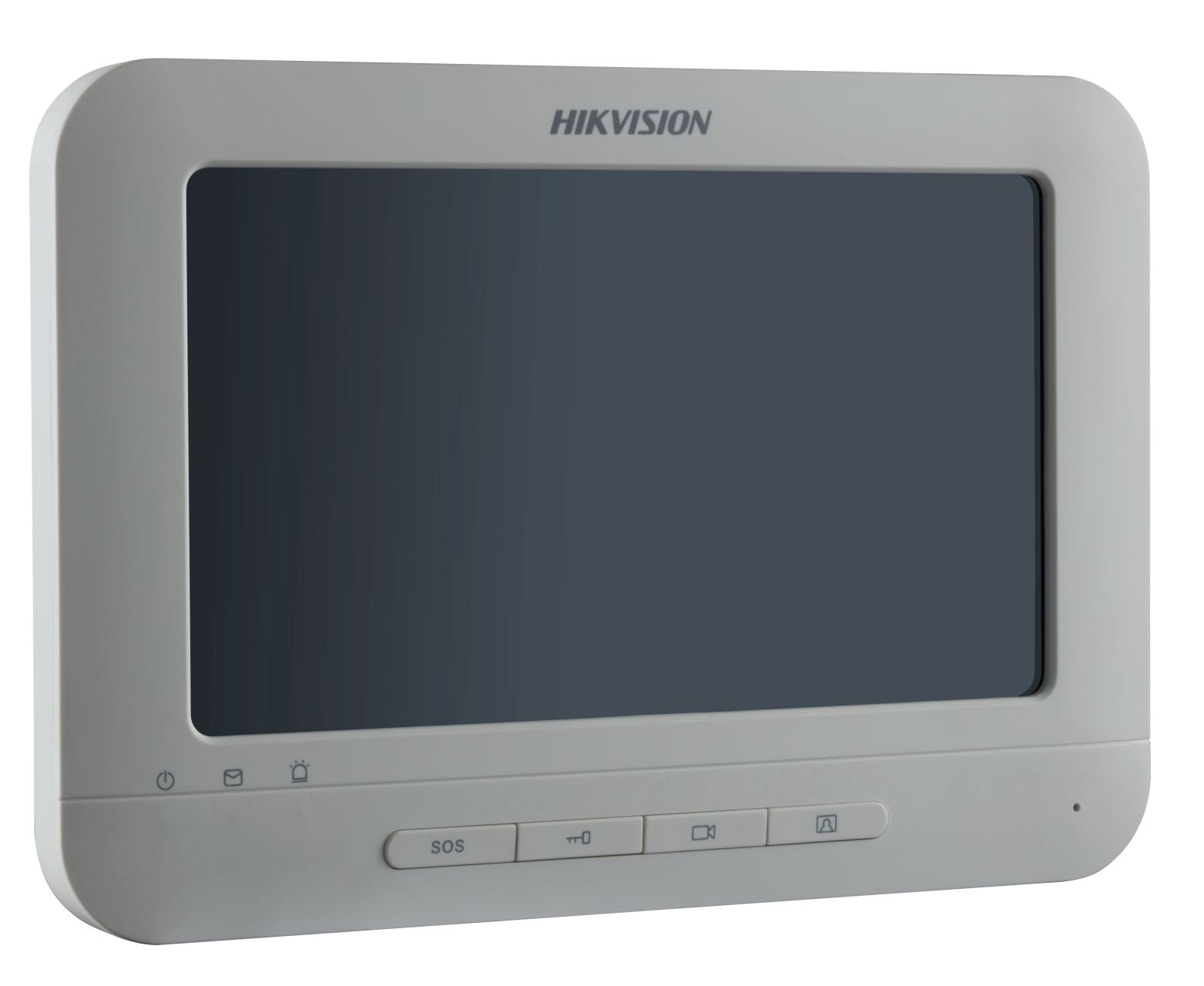

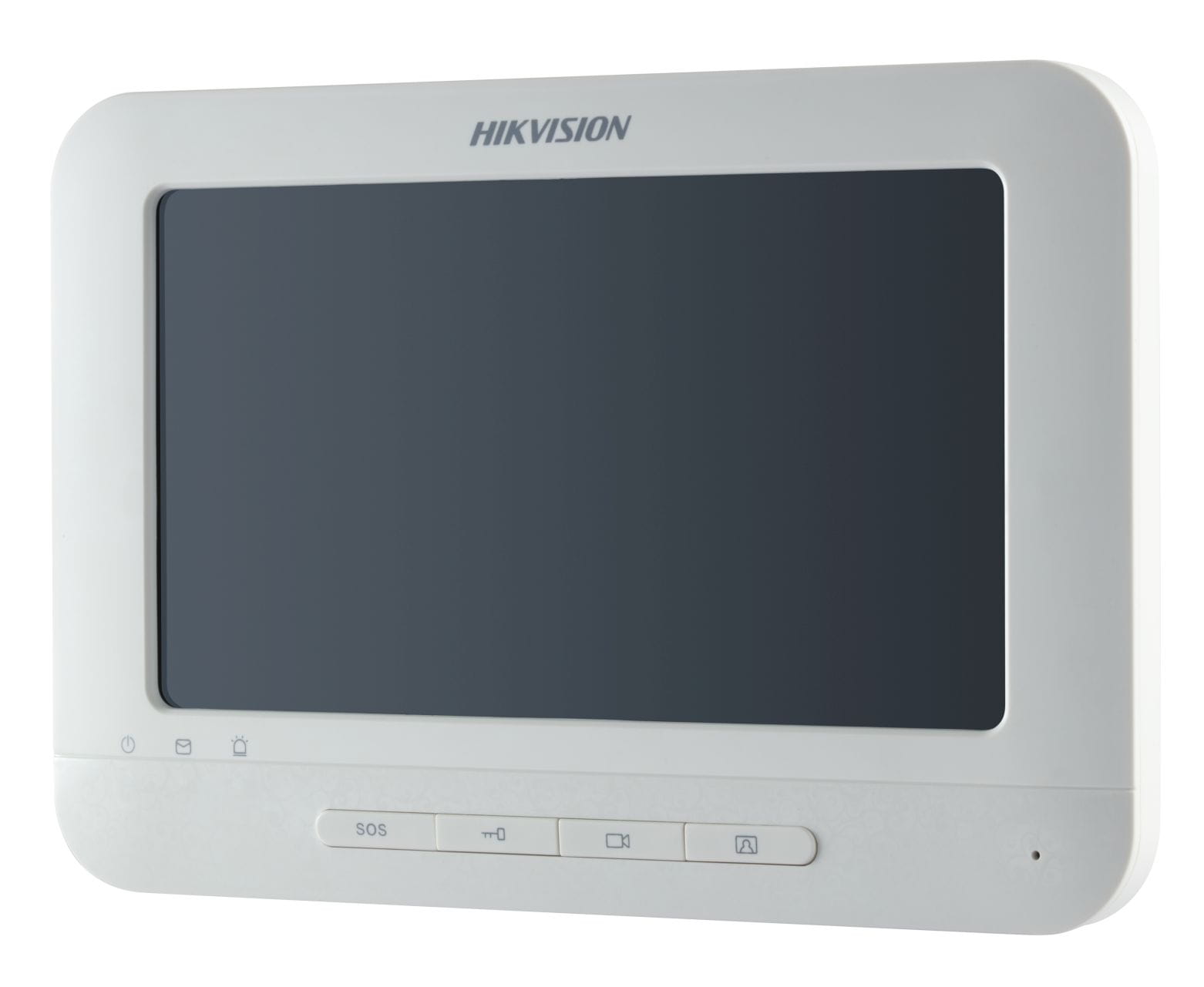

DS-KH6310-W
product unavailable
zur Wunschliste hinzufügenBeschreibung
DS-KH6310-W DS-KH6310 Video intercom function Remote unlocking function Resident-to-resident audio call Live view of HD video Voice message function Auto-respond and no disturbing mode Noise suppression and echo cancellation 8-ch zone alarm and SOS calling function Community notice Convenient installation with the bracket, batch setting, and power over video/audio distributor (DS-KAD606, DS-KAD612) Indoor Station MAIN FEATURES DS-KH6310-W/DS-KH6310 AVAILABLE MODELS Spec of DS-KH6310-W/DS-KH6310 Indoor Station www.hikvision.com 2 Model Parameters DS-KH6310-W DS-KH6310 Video Intercom Indoor Station with 7-Inch Touch Screen System Parameters Processor High-Performance Embedded SOC Processor Operation System Embedded Linux Operation System Display Parameters Display Screen 7-Inch Colorful TFT LCD Display Resolution 800 x 480 Operation Method Capacitive Touch Screen, Physical Key Operation Interface ...
Garantie: 24 mon.
Datentabelle
Textinhalt des PDF-Datenblattes:
DS-KH6310-W
DS-KH6310
Video intercom function
Remote unlocking function
Resident-to-resident audio call
Live view of HD video
Voice message function
Auto-respond and no disturbing mode
Noise suppression and echo cancellation
8-ch zone alarm and SOS calling function
Community notice
Convenient installation with the bracket, batch setting, and power over video/audio
distributor (DS-KAD606, DS-KAD612)
Indoor Station
MAIN FEATURES
DS-KH6310-W/DS-KH6310
AVAILABLE MODELS
Spec of DS-KH6310-W/DS-KH6310 Indoor Station www.hikvision.com
2
Model
Parameters
DS-KH6310-W DS-KH6310
Video Intercom Indoor Station with 7-Inch Touch Screen
System
Parameters
Processor High-Performance Embedded SOC Processor
Operation System Embedded Linux Operation System
Display
Parameters
Display Screen 7-Inch Colorful TFT LCD
Display Resolution 800 x 480
Operation Method Capacitive Touch Screen, Physical Key
Operation Interface Flattened UI Operation Interface
Audio
Parameters
Audio Input Built-in Omnidirectional Microphone
Audio Output Built-in Loudspeaker
Audio Compression
Standard
G.711 U
Audio Compression
Rate
64 Kbps
Audio Quality
Noise Suppression and Echo Cancellation
Supported
Network
Parameters
Ethernet 10M/100M Self-Adaptive Ethernet
Wireless Internet Wi-Fi 802.11 b/g/n
TYPICAL APPLICATOIN
SPECIFICATION
Resident 2
Resident 2Resident 1
Resident 2
Resident 1
Resident 2Resident 1
Resident 1
Indoor Stations
Network Cable
Door Station
Connect to the LAN
of Community via
Optical Fiber
Optical Fiber
4F
3F
2F
1F
-1F/G
Main Door Station
Video/Audio
Distributor
Switch
Video/Audio
Distributor
Spec of DS-KH6310-W/DS-KH6310 Indoor Station www.hikvision.com
3
Model
Parameters
DS-KH6310-W DS-KH6310
Video Intercom Indoor Station with 7-Inch Touch Screen
Network Protocol TCP/IP, SNMP, SIP, RTSP
Alarm
Parameters
Alarm Input 8-ch Alarm Input Sensor
Device
Interfaces
Network Access 1 RJ45 10M/100M Self-Adaptive Ethernet Access
RS485 1; RS-485 Half-Duplex
I/O Output 1
Other
Parameters
Power Supply
Power Over Network Cable (DS-KAD606,
DS-KAD612)/12 V DC
Power Consumption ≤10W
Working Temperature -10° C to +55° C (14° F to 131° F)
Working Humidity 10% - 90%
Dimension (L x W x H) 195.8 mm x 132.8 mm x 17.5 mm
Certification FCC, CE
