DS-KH6310-WL
Video Intercom Indoor Station with 7-inch Touch Screen

Key Features
Basic Functions
 Hands-free audiovisual communication with the door
station and the master station in the intercom system
 Panic call supported
 2-ch zone alarm supported
 Supports monitoring door stations and external cameras
 Remote unlocking via the client software or the app
 High-performance embedded SOC processor
Video/Audio Functions
 HD video surveillance with high performance CMOS
 7-inch colorful FTF LCD with resolution 800 x 480
 Capacitive touch screen and physical buttons
 Noise suppression and echo cancellation
 H.264 video compression
Alarm Functions
 2-ch alarm input sensors supported
 Auto-uploads alarm messages to the master station
the client software, or the app once the alarm
sensor is triggered
Additional Features
 Community notice supported
 Convenient installation and easy operation
Typical Application
Switch
Client Software
Center Master Station
(Master Station)
Network Cable
Optical Fiber
Door Station
Resident 2


Building


IPC
Master Station
in Guard's Room
Outer Door Station
Switch
Resident 2

One Resident


RS-485

Resident 1
Indoor
Extension 1
Indoor
Extension 2
Resident 1
Video/Audio
Distributor
Video/Audio
Distributor


Card
Reader


Card
Reader

Wi-Fi
App
LAN

nF
1F
*
*
*










Model DS-KH6310-WL
System
parameters
Processor High-Performance Embedded SOC Processor
Operation system Embedded Linux Operation System
Display
parameters
Display screen 7-Inch Colorful TFT LCD
Display resolution 800 x 480
Operation method Capacitive Touch Screen, Physical Button
Operation interface Flattened UI Operation Interface
Audio
parameters
Audio input Built-in Omnidirectional Microphone
Audio output Built-in Loudspeaker
Audio compression
standard
G.711 U
Audio compression
rate
64 Kbps
Audio quality Noise Suppression and Echo Cancellation
Network
parameters
Ethernet 10/100 Mbps Self-Adaptive Ethernet
Network protocol TCP/IP, RTSP
Alarm
parameters
Alarm input 2-ch Alarm Input Sensor
Device
interfaces
Network interface 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
RS-485 1 RS-485 Half-Duplex Port
I/O output 1
General
Memory 256 M
Power supply
24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612)
12 VDC
Power consumption ≤10 W
Working temperature -10° C to + 55° C (14° F to 131° F)
Working humidity 10% to 90%
Dimensions
(L x W x H)
217 mm x 142 mm x 26 mm (8.5" x 5.6" x 1.0")
Certification FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Specifications





Index Description Index Description
1 Power Supply Indicator 8 LCD Display Screen
2 Information Indicator 9 Microphone
3 Alarm Indicator 10 Power Supply Interface
4 SOS Key 11 Network Interface
5 Unlock Key 12 Terminals
6 Live View Key 13 Loudspeaker
7 Management Center Key
0104001060815

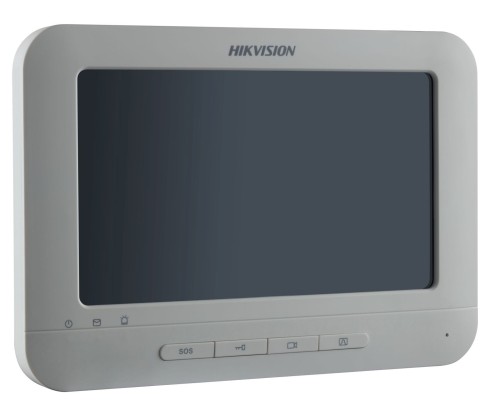

Appearance and Interfaces
Available Model
DS-KH6310-WL
