DS-KH6320-TE1

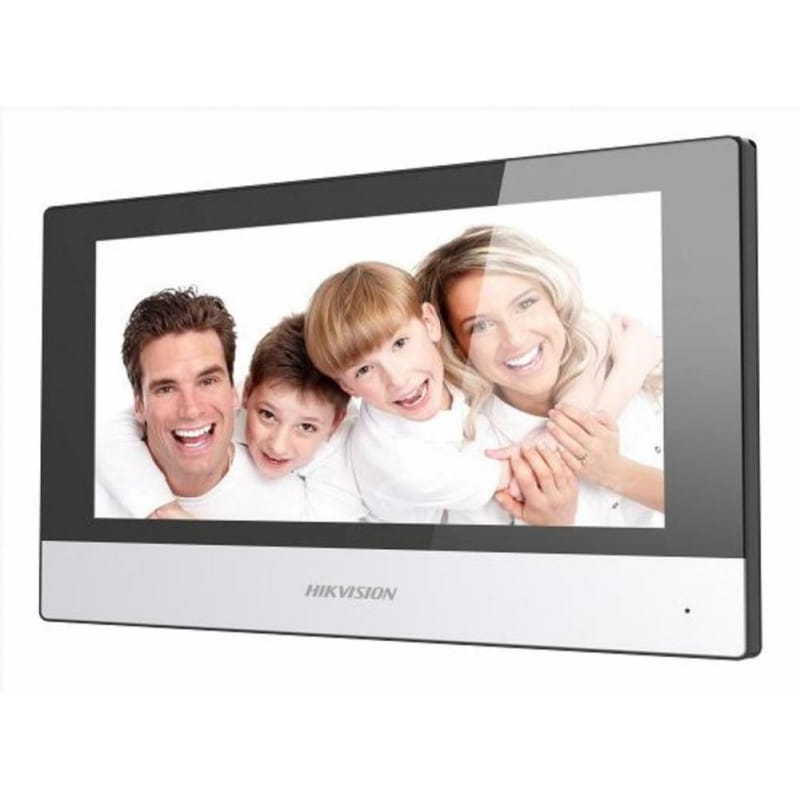

Video Intercom Indoor Station with 7-Inch Touch Screen



Key Feature
• New UI V2.0: User friendly design
• 7-inch colorful touch screen with resolution 1024 x 600
• Standard PoE
• Stores messages and capture pictures in the TF card
• Remote unlocking via the client software or the mobile client
• Views live videos of door stations and linked cameras
Typical Application


Specification

ModelDS-KH6320-TE1

System
Memory128 MB
Flash32 MB
Operation systemEmbedded Linux operation system

Display
Display screen7-inch colorful TFT LCD
Display resloution1024 x 600
Operation methodCapacitive touch screen

Audio
Audio inputBuilt-in omnidirectional microphone
Audio outputBuilt-in loudspeaker
Audio compression standardG.711 U
Audio compression rate64 Kbps

Audio quality
Noise suppression and echo
cancellation

Network
Wired network10/100 Mbps self-adaptive network
Network protocolTCP/IP、SIP 、RTSP
Network interface1 RJ-45 10/100 Mbps self-adaptive
Alarm input8-ch alarm inputs
TF cardMax to 32 G, SD 2.0 or lower version

General
Power supply
IEEE802.3af, standard PoE
12 VDC/1 A
Power consumption≤ 6 W
Working temperature-10 °C to 55 °C (14 °F to 131 °F)
Working humidity10% to 90%

Dimensions (W x H x D)
200 mm x 140 mm x 15.1 mm (7.9" x
5.5" x 0.6")

Available Model
DS-KH6320-TE1
