DS-KH8340-TCE2

DS-KH8340-TCE2  Two-Wire Indoor Station  Key Features   Hands-free video intercom communication   Two wire communication   Supports monitoring the door station and the external  IP camera   Remote unlocking   Wall mounting supported  Typical Application  Indoor Station 1  Indoor Station2  Indoor Station3  Indoor Station4Door Station  Controller      Draft                    Model DS-KH8340-TCE2  System  parameters  Processor High-Performance Embedded SOC Processor  Display  parameters  Display screen 7-Inch Colorful TFT LCD  Display resolution 1024 x 600  Operation method Capacitive Touch Screen, Touch Button  Operation interface Flattened UI Operation Interface  Video  parameters  Video compression  standard  H.264  Audio  parameters  Audio streaming Two-Way, Full Duplex  Audio input Built-in Omnidirectional Microphone  Audio output Built-in Loudspeaker  Audio compression  standard  G.711 U  Audio compression  rate  64 Kbps  Audio quality Noise Suppression and Echo Cancellation  Device  interfaces  Network interface Two-wire interface  RS-485 interface 1 ...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-KH6320-WTE2(Europe BV)

Ersatzproduktcode: 305301758

Garantie: 24 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-KH8340-TCE2
Two-Wire Indoor Station
Key Features
 Hands-free video intercom communication
 Two wire communication
 Supports monitoring the door station and the external
IP camera
 Remote unlocking
 Wall mounting supported
Typical Application
Indoor Station 1
Indoor Station2
Indoor Station3
Indoor Station4Door Station
Controller


Draft









Model DS-KH8340-TCE2
System
parameters
Processor High-Performance Embedded SOC Processor
Display
parameters
Display screen 7-Inch Colorful TFT LCD
Display resolution 1024 x 600
Operation method Capacitive Touch Screen, Touch Button
Operation interface Flattened UI Operation Interface
Video
parameters
Video compression
standard
H.264
Audio
parameters
Audio streaming Two-Way, Full Duplex
Audio input Built-in Omnidirectional Microphone
Audio output Built-in Loudspeaker
Audio compression
standard
G.711 U
Audio compression
rate
64 Kbps
Audio quality Noise Suppression and Echo Cancellation
Device
interfaces
Network interface Two-wire interface
RS-485 interface 1 RS-485 Half-Duplex Interface
Alarm input 8
Alarm output 1
General
Power supply Powered by DS-KAD709
Power consumption Max. 10 W
Working
temperature -10° C to +55° C (14° F to 131° F)
Working humidity 10% to 90%
Installation Wall Mounting
Dimension 162.9*103.9*32(mm)



Specifications

Draft





Index Description Index Description
1 Power Supply Indicator 7 Management Center Key
2 Information Indicator 8 LCD Display Screen
3 Alarm Indicator 9 Microphone
4 Call Accept/Decline Key 10 Terminals
5 Unlock Key 11 Power Supply Interface
6 Live View Key 12 Loudspeaker
0100001070511

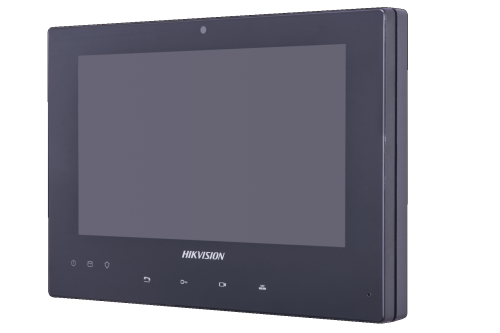

Appearance and Interfaces



Available Model
DS-KH8340-TCE2

Draft
