DS-KIS604-S(B)

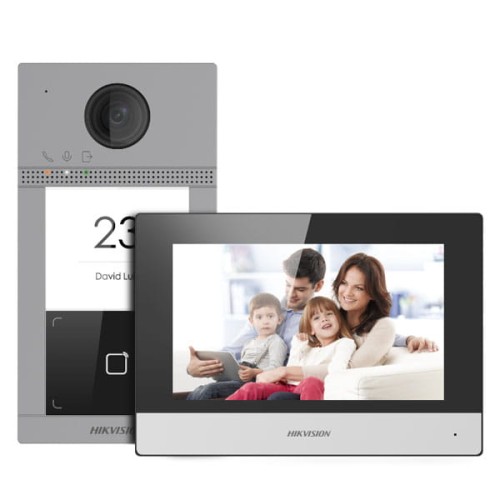

DS-KIS604-S  Video Intercom Villa Door Station Bundle      Key Feature  Villa Door Station  * Standard PoE  * 2 MP HD camera  * Noise suppression and echo cancellation  * Low illumination  * Tamper-proof  * Configuration remotely via Web  * 2.4 GHz Wi-Fi  * Protection level: IK08  Network Indoor Station  * 7-inch colorful touch screen with resolution 1024 x 600  * Standard PoE  * Stores messages and captured pictures in the TF card  * Remote unlocking via the client software or the mobile  client  * Views live videos of door stations and linked cameras  Approval  Villa Door Station  CE-EMC  a. EN 55032:2015  b. EN 61000-3-2:2014  c. EN 61000-3-3:2013  d. EN 50130-4:2011 +A1:2014  CE-LVD  EN 60950-1:2006 + A11:2009 + A1:2010 +  A12:2011 + A2:2013  CB  IEC 60950-1:2005 (Second Edition) + Am 1:2009  + Am 2:2013  FCC-SDOC 47 CFR Part 15, Subpart B  C-  TICK(EMC)  AS/NZS CISPR 32:2015  UL  UL 60950-1 & CAN/CSA C22.2 No. 60950-1-07,  Information Technology Equipment – Safety –  Part 1: General Requirements  ROHS 2011/65/EU  REACH Regulation (EC) No 1907/2006  WEEE 2012/19/EU    Network Indoor Station

Warnung! Produkt aus der Produktion genommen!

Garantie: 24 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-KIS604-S
Video Intercom Villa Door Station Bundle


Key Feature
Villa Door Station
* Standard PoE
* 2 MP HD camera
* Noise suppression and echo cancellation
* Low illumination
* Tamper-proof
* Configuration remotely via Web
* 2.4 GHz Wi-Fi
* Protection level: IK08
Network Indoor Station
* 7-inch colorful touch screen with resolution 1024 x 600
* Standard PoE
* Stores messages and captured pictures in the TF card
* Remote unlocking via the client software or the mobile
client
* Views live videos of door stations and linked cameras
Approval
Villa Door Station
CE-EMC
a. EN 55032:2015
b. EN 61000-3-2:2014
c. EN 61000-3-3:2013
d. EN 50130-4:2011 +A1:2014
CE-LVD
EN 60950-1:2006 + A11:2009 + A1:2010 +
A12:2011 + A2:2013
CB
IEC 60950-1:2005 (Second Edition) + Am 1:2009
+ Am 2:2013
FCC-SDOC 47 CFR Part 15, Subpart B
C-
TICK(EMC)
AS/NZS CISPR 32:2015
UL
UL 60950-1 & CAN/CSA C22.2 No. 60950-1-07,
Information Technology Equipment – Safety –
Part 1: General Requirements
ROHS 2011/65/EU
REACH Regulation (EC) No 1907/2006
WEEE 2012/19/EU

Network Indoor Station
CE-EMC
a. EN 55032:2015
b. EN 61000-3-2:2014
c. EN 61000-3-3:2013
d. EN 50130-4:2011 +A1:2014
CE-LVD
EN 60950-1:2006 + A11:2009 + A1:2010 +
A12:2011 + A2:2013
CE-RED
a. EN 201 489-1 V2.1.1, EN 301 489-17 V3.1.1
b. EN 300 328 V2.1.1, EN 62311:2008
CB
IEC 60950-1:2005 (Second Edition) + Am 1:2009
+ Am 2:2013
FCC-SDOC 47 CFR Part 15, Subpart B
FCC-ID 47 CFR Part 15, Subpart B
C-
TICK(EMC)
AS/NZS CISPR 32:2015
C-TICK(RF) AS/NZS 4268:2017
UL
UL 60950-1 & CAN/CSA C22.2 No. 60950-1-07,
Information Technology Equipment – Safety –
Part 1: General Requirements
IC(EMC) ICES-003:Issue 6
IC(RF)
RSS-247 Issue 2, February 2017, RSS-Gen Issue 5,
April 2018
ROHS 2011/65/EU
REACH Regulation (EC) No 1907/2006
WEEE 2012/19/EU




Specification
Villa Door Station
System parameters
Operation
system
Embedded Linux operation system
Operation
method
Single-button
Flash 32 M
RAM 256 M
Video Parameters
Camera 2MP HD camera
Night vision Low illumination IR supplement mode:3 m
BLC Support
DNR Support
WDR True WDR
Field of view Horizontal: 129° Vertical: 75°
Video
compression
standard
H.264
Stream
Main stream: 1080p@30fps, 720p@25fps
Sub stream: D1@25fps
Resolution
Main stream: 1920 x 1080p, 720p
Sub stream: 704 x 576
Motion
detection
Support
Anti-flicker
frequency
50 Hz, 60 Hz
Audio parameters
Audio intercom Two-way audio communication
Audio input Built-in omnidirectional microphone
Audio output Built-in loudspeaker
Audio
compression
standard
G.711 U
Audio
compression
Rate
64 Kbps
Audio quality Noise suppression and echo cancellation
Network parameters
Wired network 10/100 Mbps Ethernet
Network
protocol
TCP/IP, RSTP
Access control parameters
Reading
frequency
13.56 MHz
Card type Mifare card
Relay 2
Interfaces
RS-485 1
Wi-Fi 2.4G Wi-Fi
Debugging port 1
TF card 0
Alarm input 4
Grounding 1
Physical button 1
TAMPER switch 1
General
Protection level IP65, IK08
Indicator 3
Power supply
IEEE802.3af, standard PoE
12 VDC
Power
consumption
＜ 10 W
Working
temperature
-40° C to 53° C(-40° F to 127.4° F)
Working
humidity
10% to 95%
Installation Surface mounting/ Flush mounting
Dimension 174 mm x 91 mm x 29 mm
Indoor Station
System parameters
Memory 128 MB
Flash 32 MB
Operation
system
Embedded Linux operation system
Display parameters
Display screen 7-inch colorful TFT screen
Display
resolution
1024 x 600
Operation
method
Capacitive touch screen
Audio parameters
Audio input Built-in omnidirectional microphone
Audio output Built-in loudspeaker
Audio
compression
standard
G.711 U
Audio
compression
rate
64 Kbps
Audio quality Noise suppression and echo cancellation
Network parameters
Wired network 10/100 Mbps self-adaptive
Wireless
network
Wi-Fi 802.11 b/g/n
Network
protocol
TCP/IP, SIP, RTSP
Network
interface
1 RJ-45 10/100 Mbps self-adaptive
Interfaces
Alarm input 8-ch alarm inputs
Relay output 2
TF card Max to 32 G, SD 2.0 or lower version
RS485 1
General
Power supply
IEEE802.3af, standard PoE
12 VDC/1 A
Power
consumption
≤ 6 W
Working
temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working
humidity
10% to 90%
Dimensions
200 mm x 140 mm x 15.1 mm (7.9" x
5.5" x 0.6")



Weight
2.290 kg
Available Model
DS-KIS604-S
Appearance and Interfaces
Villa Door Station

No. Description No. Description
1 Microphone 6 Card Reading Area
2 Indicator 7 IR Light
3 Camera 8 MicroSD Card Slot &
Debugging Port
4 Loudspeaker 9 Network Interface
5 Button 10 Terminals
Network Indoor Station


No. Description No. Description
1 Screen 5 Loudspeaker
2 Microphone 6 TF Card Slot
3 Debugging Port 7 Alarm Terminal
4 Network Interface 8 Power Supply

Note: The debugging port is used for debugging only.
Dimension
Villa Door Station

Network Indoor Station










Typical Application
