DS-KIS703-P-D

DS-KIS703-P  Video Intercom Two-Wire Bundle      Key Feature  Two-Wire Indoor Station  * Easy, Cost-Efficient Installation  * 7 inch Touch-Screen, User Friendly Interface, Plug & Play  * Receives Video Call And Unlocks On Mobile App Anywhere,  Anytime  Villa Door Station  * High quality imaging with 2 MP resolution  * Easy, Cost-Efficient Installation  * User Friendly Design, Name tag, Communication status LED  indicator  * IP65 water resistant, preventing water ingress for outdoor  use        Specification  Two-Wire Villa Door Station  System parameters  Operation  system  Embedded Linux operation system  Operation  method  Single-button  Flash 32 MB  RAM 256 M  Video Parameters  Camera 2MP HD camera  Night vision Low illumination IR supplement mode:3 m  BLC Support  DNR Support  WDR True WDR  Field of view Horizontal: 144° Vertical: 95°  Video  compression  standard  H.264  Stream  Main stream: 1080p@30fps, 720p@30fps  Sub stream: 4CIF  Resolution  Main stream: 1920 x 1080p, 720p  Sub stream: 704 x 576  Motion  detection  Support  Anti-flicker  frequency  50 Hz, 60 Hz ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 24 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

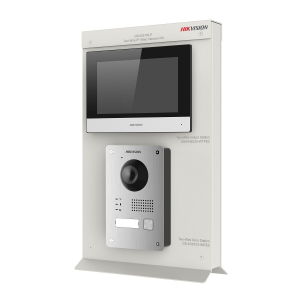

DS-KIS703-P
Video Intercom Two-Wire Bundle


Key Feature
Two-Wire Indoor Station
* Easy, Cost-Efficient Installation
* 7 inch Touch-Screen, User Friendly Interface, Plug & Play
* Receives Video Call And Unlocks On Mobile App Anywhere,
Anytime
Villa Door Station
* High quality imaging with 2 MP resolution
* Easy, Cost-Efficient Installation
* User Friendly Design, Name tag, Communication status LED
indicator
* IP65 water resistant, preventing water ingress for outdoor
use



Specification
Two-Wire Villa Door Station
System parameters
Operation
system
Embedded Linux operation system
Operation
method
Single-button
Flash 32 MB
RAM 256 M
Video Parameters
Camera 2MP HD camera
Night vision Low illumination IR supplement mode:3 m
BLC Support
DNR Support
WDR True WDR
Field of view Horizontal: 144° Vertical: 95°
Video
compression
standard
H.264
Stream
Main stream: 1080p@30fps, 720p@30fps
Sub stream: 4CIF
Resolution
Main stream: 1920 x 1080p, 720p
Sub stream: 704 x 576
Motion
detection
Support
Anti-flicker
frequency
50 Hz, 60 Hz
Audio parameters
Audio intercom Two-way audio communication
Audio input Built-in omnidirectional microphone
Audio output Built-in loudspeaker
Audio
compression
standard
G.711 U, G.711 A
Audio
compression
Rate
64 Kbps
Audio quality Noise suppression and echo cancellation
Network parameters
Wired network 10/100 Mbps Ethernet
Network
protocol
TCP/IP, RSTP
Access control parameters
Reading
frequency
Not supported
Relay 2
Interfaces
Output 12 V/1 A output
Debugging port 1
Alarm input 2
Grounding 1
Two-wire
interface
1
TAMPER switch 1
General
Protection level IP65
Indicator 3
Power supply From indoor station
Power
consumption
＜ 10 W
Heater Support
Working
temperature
-40° C to +60° C(-40° F to 140° F)
Working
humidity
10% to 95%
Dimension 169 x 110 x 31 mm (6.54” x 4.33” x 1.22”)
Installation Surface mounting, flush mounting
Weight 476 g
Indoor Station
System parameters
Memory 128 MB
Flash 32 MB
Operation
system
Embedded Linux operation system
Display parameters
Display screen 7-inch TFT touch screen
Display
resolution
1024 x 600
Operation
method
Capacitive touch screen
Brightness Adjustable
Audio parameters
Audio input Built-in microphone
Audio output Built-in loudspeaker
Volume Local adjustable
Audio
compression
standard
G.711 U, G.711 A
Audio quality Noise suppression and echo cancellation
Network parameters
Wired network 10/100 Mbps self-adaptive
Wireless
network
Wi-Fi 802.11 b/g/n
Interfaces
Two-wire
interface
1
Alarm input 8
Debugging port 1 channel reserved
RS485 1
General
Power supply 24 VDC
Power
consumption
≤ 8 W
Working
temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working
humidity
10% to 90%
Dimension
200 x 140 x 23.6 mm (7.87” x 5.51” x
0.93”)
Weight 334.5 g
Available Model
DS-KIS703-P



Appearance and Interfaces
Two-Wire Villa Door Station

No. Description No. Description
1 Microphone 6 Supplement Light
2 Calling Indicator 7 Loudspeaker
3 Speaking Indicator 8 TAMPER
4 Open Door Indicator 9 Call Button
5 Built-in Camera
Two-Wire Indoor Station

No. Description No. Description
1 Display Screen 5 Two-Wire Interface
2 Microphone 6 Loudspeaker
3 Debugging Port 7 Power Supply
Interface
4 Alarm Terminal

Note: The debugging port is used for debugging only.











Dimension
Two-Wire Villa Door Station

Two-Wire Indoor Station











Typical Application
