Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: DS-KV8113-WME1(C)/Flush

Ersatzproduktcode: 305303881

Garantie: 24 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

DS-KV8113-WME1
Video Intercom Villa Door Station




Key Feature
* Standard PoE
* 2 MP HD camera
* Noise suppression and echo cancellation
* Low illumination
* Access control functions
* Tamper-proof
* Configuration remotely via Web
* 2.4 GHz Wi-Fi
* Protection level: IK08

Approval
CE-EMC
a. EN 55032:2015
b. EN 61000-3-2:2014
c. EN 61000-3-3:2013
d. EN 50130-4:2011 +A1:2014
CE-LVD
EN 60950-1:2006 + A11:2009 + A1:2010 +
A12:2011 + A2:2013
CB
IEC 60950-1:2005 (Second Edition) + Am 1:2009
+ Am 2:2013
FCC-SDOC 47 CFR Part 15, Subpart B
C-
TICK(EMC)
AS/NZS CISPR 32:2015
UL
UL 60950-1 & CAN/CSA C22.2 No. 60950-1-07,
Information Technology Equipment – Safety –
Part 1: General Requirements
ROHS 2011/65/EU
REACH Regulation (EC) No 1907/2006
WEEE 2012/19/EU




Specification
System parameters
Operation
system
Embedded Linux operation system
Operation
method
Single-button
Flash 32 M
RAM 256 M
Video Parameters
Camera 2MP HD camera
Night vision Low illumination IR supplement mode:3 m
BLC Support
DNR Support
WDR True WDR
Field of view Horizontal: 129° Vertical: 75°
Video
compression
standard
H.264
Stream
Main stream: 1080p@30fps, 720p@25fps
Sub stream: D1@25fps
Resolution
Main stream: 1920 x 1080p, 720p
Sub stream: 704 x 576
Motion
detection
Support
Anti-flicker
frequency
50 Hz, 60 Hz
Audio parameters
Audio intercom Two-way audio communication
Audio input Built-in omnidirectional microphone
Audio output Built-in loudspeaker
Audio
compression
standard
G.711 U
Audio
compression
Rate
64 Kbps
Audio quality Noise suppression and echo cancellation
Network parameters
Wired network 10/100 Mbps Ethernet
Network
protocol
TCP/IP, RTSP
Access control parameters
Reading
frequency
13.56 MHz
Card type Mifare card
Relay 2
Interfaces
RS-485 1
Wi-Fi 2.4G Wi-Fi
Debugging port 1
TF card 0
Alarm input 4
Grounding 1
Physical button 1
TAMPER switch 1
General
Protection level IP65, IK08
Indicator 3
Power supply
IEEE802.3af, standard PoE
12 VDC
Power
consumption
＜ 10 W
Working
temperature
-40° C to 53° C(-40° F to 127.4° F)
Working
humidity
10% to 95%
Installation Surface mounting/ Flush mounting
Dimension 174 mm x 91 mm x 29 mm
Available Model
DS-KV8113-WME1

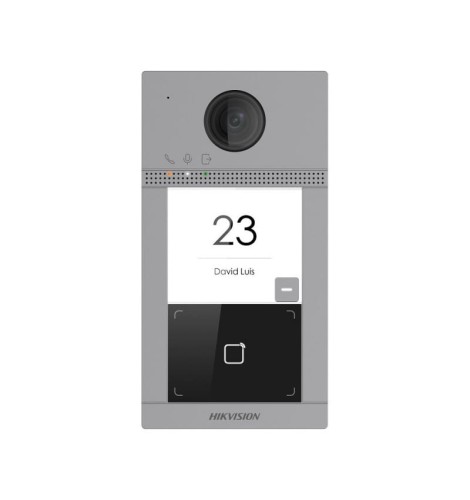

Appearance and Interfaces

No. Description No. Description
1 Microphone 6 Card Reading Area
2 Indicator 7 IR Light
3 Camera 8 MicroSD Card Slot &
Debugging Port
4 Loudspeaker 9 LAN
5 Button 10 Terminals







Dimension
