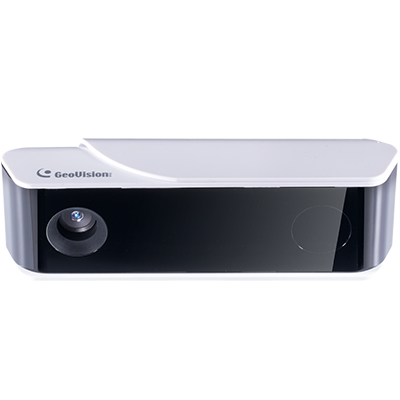

GV-3D People Counter V2

Verfügbarkeit: 0
Preis: 350,85 € 350.85
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: GEOVISION
Produkt-Code/SKU: 84-PC2101T-0010

Beschreibung

GV-3D People Counter V2 June 4, 2019  - 1 -  GV-3D People Counter V2        Introduction  The GV ‐ 3D People Counter V2 can count and analyze the number of people passing by or staying within a designated area with high  precision and accuracy. With its Power over Ethernet and user ‐friendly interface, the counter is simple to use and easy to install. You  can look up neatly comp iled people counting data through its chart analyses with the support of GV ‐Web Report Lite, a built ‐ in Web  interface. A...

Garantie: 24 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

GV-3D People Counter V2 June 4, 2019
- 1 -
GV-3D People Counter V2



Introduction
The GV ‐ 3D People Counter V2 can count and analyze the number of people passing by or staying within a designated area with high
precision and accuracy. With its Power over Ethernet and user ‐friendly interface, the counter is simple to use and easy to install. You
can look up neatly comp iled people counting data through its chart analyses with the support of GV ‐Web Report Lite, a built ‐ in Web
interface. Additionally, the counter also supports I/O devices and GV ‐GPS Receiver for users to access people counting data remotely.






Features
* High precision counting accuracy
* Counts the number of people (In and Out)
* Lightweight with sleek design
* Digital I/O (1 Input/1 Output)
* PoE (IEEE 802.3af)
* Low power consumption
* Built ‐ in micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10) for local storage
* GPS positioning (optional GV ‐ GP S Receiver and GV ‐Web Report software required)
* GV ‐Web Report Lite :Built ‐ in Web interface to look up people counting data and charts
* Support for data compiling and chart analysis on the optional GV ‐Web Report software
* No SD/SDHC card slot & local storage function for Argentina.

GV-3D People Counter V2 June 4, 2019
- 2 -
Dimensions




Overview
Bottom View


Rear View








GV-3D People Counter V2 June 4, 2019
- 3 -

Specifications
External Interface
Ethernet RJ45, 10/100 Ethernet (PoE Only)

Local Storage Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)

Input 1 Sensor Input

Output 1 Alarm Output

Terminal Block
GPS UART

Power Over Ethernet

PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)

PoE Power Supply Type End ‐Span and Mid ‐Span

PoE Power Output Per Port 48V DC, 350 mA, Max. 15.4 watts

General Information

Diagonal 92°

Horizontal 74°

Angle of View
Vertical 55°

Counting Accuracy Up to 98%

Weather Resistance Indoor only

Operating Temperature 0 °C ~ 40 °C (32 °F ~ 104 °F )

Operating Humidity 20 % ~ 80 % (with no condensation)

Operating Distance 1.8 ~ 4 m (5.91 ~ 13.12 ft.)

Power Source PoE (IEEE 802.3af) Only

Max. Power Consumption 6.24 W

Dimensions (W x H x D) 150 x 48.5 x 37.5 mm (5.9 x 1.9 x 1.47 in)

Net Weight 200 g (0.44 lb)

Regulatory CE, FCC, RCM compliant

Language English, Traditional Chinese, Simplified Chinese, Russian, French

Supported Browser Microsoft Internet Explorer 10 or above


Compatible Firmware and Software Versions
GV ‐VMS GV ‐ Web Report
GV ‐ 3D People Counter V2 V1.00 V16.10.3.0 or later V2.2.6.0 or later
Note: All specifications are subject to change without notice.
Options for 3D People Counter V2
Name
Details


GV ‐GPS Receiver
Receive the GPS signals for 3D People Counter positioning.

GV ‐ IO Box
GV ‐ IO Box extends the uses of an IP device by providing input and output ports for triggering alarms
such as light or buzzer. GV ‐ IO Box is available in different models with different numbers of inputs and
outputs.


GV ‐PA191
The GV ‐PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device
through a single Ethernet cable.

GV ‐ POE Switch
The GV ‐ POE Switch is designed to provide power along with network connection for IP devices. The
GV ‐ POE Switch is available in various models with different numbers and types of ports.


GV-3D People Counter V2 June 4, 2019
- 4 -


Name
Details
GV ‐Web Report
Through a Web browser, the GV ‐Web Report keeps track of and analyzes the people counting results
from up to 1000 units of GV ‐ 3D People Counter V2s. Compatible version: V2.2.6.0 or later.



Packing List
1. GV ‐ 3D People Counter V2
2. SDHC Micro SD card (8 GB)
3. Ceiling Mount Kit
4. Wall Mount Kit
5. Installation Sticker x 2 (Wall mount / Ceiling mount)
6. Screw x 4
7. Anchor x 2
8. Documents Download Guide
9. Warranty Card
