GV-EBD8800

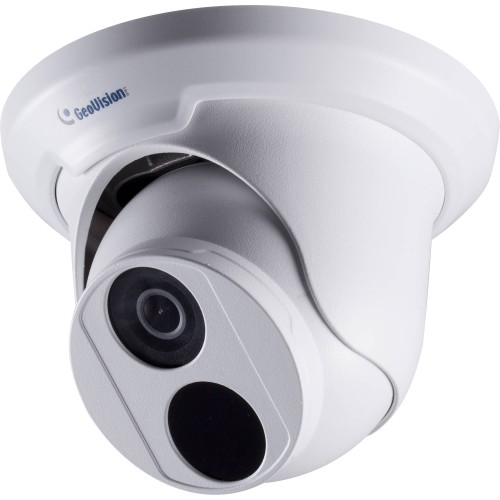

GV-EBD8800 AI 8MP H.265 Super Low Lux WDR Pro IR Eyeball IP Dome              * AI Deep learning: AI Perimeter Protection & Classification (Human, Vehicle)  * 1/2.7" progressive scan low lux CMOS sensor  * Triple streams from H.265, H.264 or MJPEG  * Wide Dynamic Range Pro (WDR Pro)  * Min. illumination at 0.01 lux  * Up to 20 fps at 3840 x 2160  * Intelligent IR  * Day and night function (with removable IR ‐cut filter)  * 3 ‐ axis mechanism (pan / tilt / rotate)  * IR distance up to ...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: GV-EBD8813

Ersatzproduktcode: 84-EBD8813-0010

Garantie: 24 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

GV-EBD8800 AI 8MP H.265 Super Low Lux WDR Pro IR Eyeball IP Dome






* AI Deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
* 1/2.7" progressive scan low lux CMOS sensor
* Triple streams from H.265, H.264 or MJPEG
* Wide Dynamic Range Pro (WDR Pro)
* Min. illumination at 0.01 lux
* Up to 20 fps at 3840 x 2160
* Intelligent IR
* Day and night function (with removable IR ‐cut filter)
* 3 ‐ axis mechanism (pan / tilt / rotate)
* IR distance up to 30 m (100 ft)
* Ingress protection (IP67)
* Built ‐ in micro SD card slot (SD / SDHC / SDXC / UHS ‐ I, Class 10) for local
storage
* DC 12 V / PoE (IEEE 802.3af)
* ONVIF (Profile S, G, T) conformant



Introduction
The Eyeball Dome IP Camera is an outdoor, network camera equipped with an automatic IR ‐cut filter and IR LEDs for day and night
surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at
reduced network bandwidths. GV ‐EBD8800 adheres to IP67 standards, and ca n be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with
GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.


Deep Learning Function


AI Perimeter Protection AI Event Search
(Intrusion, Crossing Line (VMS V18.3 or later)
Entering Area, Leaving Area)







Note: The integration of AI events of the camera to GV ‐VMS is coming soon.








GV-EBD8800 August 18, 2021
- 1 -

Dimensions




Specifications
Camera
Image Sensor 1/2.7" progressive scan low lux CMOS

Picture Elements 3840 (H) x 2160 (V)

Color 0.01 Lux (F2.0, AGC ON)
Minimum
Illumination
IR ON 0 Lux

Shutter Speed Auto / Manual (1 ~ 1/100000 sec)

White Balance Auto / Manual

Gain Control Auto / Manual

S/N Ratio 56 dB

WDR WDR Pro

Dynamic Range Up to 120 dB

Optical Lens

Megapixel Yes

Day / Night Yes (with removable IR ‐cut filter)

Lens Type Fixed

Focal Length 2.8 mm

Maximum Aperture F/2.0

Mount M12

Horizontal FOV 112°

Focus

Zoom
Operation
Iris
Fixed
IR LED Quantity 1 IR LED

Max. IR Distance 30 m (100 ft)

Operation

Video Compression H.265, H.264, MJPEG

Video Streaming Triple streams from H.265, H.264 or MJPEG

Frame Rate
20 fps at 3840 x 2160, 30 fps at 3072 x 1728 / 2560 x 1440 / 1920 x 1080 (60 /50 Hz)
*The frame rate and performance may vary depending on the number of connections
and data bitrates (different scenes).

Video Analytics
Motion Detection, Tampering Alarm, Audio Detection
*Tampering alarm, Audio detection are only accessible through the camera’s Web
interface, which can be used to trigger alerts such as e ‐mail and FTP.

Image Setting
Brightness, Contrast, Saturation, Sharpness, Flicker ‐ less, Image Orientation (Flip,
Mirror, 0°, 90°, 180°, 270° ‐including Corridor format)

Audio Compression G.711

Audio Support One ‐way Audio

Deep Learning Function

AI Perimeter Protection Intrusion, Crossing Line, Entering Area, Leaving Area (Human & Vehicle classification)

GV-EBD8800 August 18, 2021
- 2 -

Video Resolution
Main Stream 3840 x 2160 (Default), 3072 x 1728, 2560 x 1440, 1920 x 1080

Sub Stream 1920 x 1080, 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 352 x 288

Third Stream (Closed by Default) 720 x 576, 704 x 288, 640 x 360, 352 x 288

Network

Interface 10/100 Ethernet

Protocol
ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE,
RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)

Mechanical

Pan 0° ~ 360°

Tilt 0° ~ 90°

Camera Angle
Adjustment
Rotate 0° ~ 360°

Power DC Jack (DC 12 V, 1.25 A), PoE

Audio 1 In (built ‐ in microphone)

Local Storage
Micro SD card slot (SD / SDHC / SDXC / UHS ‐ I, Class 10)
*UHS‐ II card type is not supported.

Connectors
Ethernet RJ ‐ 45

General

Start‐ up
Environment
Temperature
Operation
‐30°C ~ 60°C ( ‐ 22°F ~ 140°F)
Humidity 0% ~ 95% (no condensation)

Power Source 12 V DC / PoE (IEEE 802.3af)

Max. Power Consumption 6.4 W

Dimensions Ø 126 x 94 mm (Ø5.0 x 3.7”)

Weight 0.45 kg (0.99 lb)

Ingress Protection IP67

Regulatory CE, FCC, RoHS compliant

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or GV ‐ IP Device Utility

Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Defog, Text Overlay, Image Masking

Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese,
Russian, Spanish, Traditional Chinese

Software Application

Software Supported
GV ‐VMS (V17.4.1 / V18.2.1), GV ‐ DVR / NVR (V8.9.1), GV ‐Control Center (V3.8.0),
GV ‐Recording Server / Video Gateway (V2.0.0), GV ‐Edge Recording Manager Win
version (V2.0.0), GV ‐Redundant / Failover Server (V1.2.0)

Smart Device Access GV ‐Eye for iOS and Android

Live Viewing Browser (IE, Edge, Chrome), Mobile App

Note:
1. It is required to apply patch files to all or some of the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.

Packing List
1. GV ‐EBD8800 IR Eyeball Dome
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Download Guide
6. Warranty Card





GV-EBD8800 August 18, 2021
- 3 -

Accessories
Model No. Name
Details

GV ‐Mount107 (must
be used with
GV ‐Mount212P)
Pendant Bracket



Dimensions: Ø 120 x 334 mm (Ø 4.72” x

13.15”)

Weight: 0.74 kg (1.63 lb)

GV ‐Mount211P Wall Mount and
Junction Box



Dimensions: Ø 233 x 126 x 126 mm (Ø

9.2” x 5” x 5”)

Weight: 1 kg (2.2 lb)

GV ‐Mount212P Wall Box Mount



Dimensions: Ø 126 x 36 mm (Ø 5.0” x

1.4”)

Weight: 0.22 kg (0.48 lb)

GV ‐Mount300 ‐ 2 Convex Corner Mount



Dimensions: 137 x 233 x 160 mm (5.4” x

9.17” x 6.3”)

Weight: 1.65 kg (3.64 lb)

GV ‐Mount310 ‐ 2 Concave Corner Mount



Dimensions: 111.2 x 369.9 x 210 mm (2.6”

x 11.4” x 6.6”)

Weight: 1.65 kg (3.64 lb)

GV ‐Mount420
(must be used with
GV ‐Mount211P)
Pole Mount Bracket



Dimensions: Ø 120 x 120 x 53.4 mm (Ø

4.7” x 4.7” x 2.1”)

Weight: 0.45 kg (0.99 lb)

Steel Strap Diameter: Ø 67 ~ 127 mm (Ø

2.6” ~ 5”)

GV ‐Mount704 (must
be used with
GV ‐Mount107)
Extension Tube



Dimensions: Ø 3.5 x 10 or 20 or 30 or 50

cm (Ø 1.38 x 3.9 or 7.9 or 11.8 or 19.7”)

Weight: 225 g or 360 g or 500 g or 780 g

(0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb)

GV ‐PA191 Power over Ethernet
(PoE) Adapter



GV ‐PA191 is a Power over Ethernet (PoE)

adapter designed to provide power to the

IP device through a single Ethernet cable.

GV ‐PoE Switch GV ‐PoE Switch is designed to provide power along with network connection for

IP devices. GV ‐PoE Switch is available in various models with different numbers

and types of ports.

Power Adapter Contact our sales representatives for the countries and areas supported.


GV-EBD8800 August 18, 2021
- 4 -
