GV-EBL2111

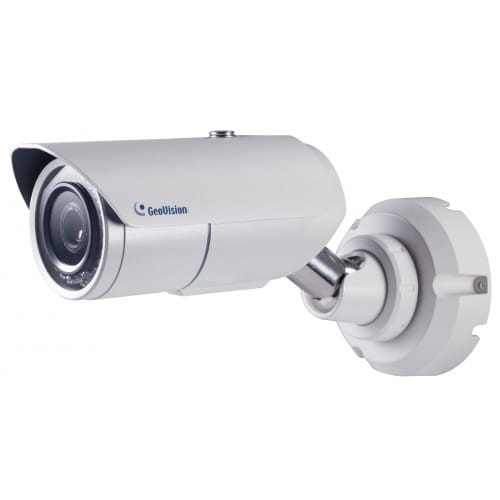

GV-EBL2111 2MP H.264 4.3X Zoom Super Low Lux WDR IR Bullet IP Camera      * 1/2.8” progressive scan super low lux CMOS  * Dual streams from H.264 and MJPEG  * Up to 30 fps at 1920 x 1080  * Intelligent IR  * Day and Night function (with removable IR ‐cut filter)  * Megapixel lens  * P ‐ iris lens for auto iris control  * Motorized varifocal len s for remote focus/zoom adjustment  * Vandal resistance (IK10 for metal casing)  * Ingress protection (IP67)  * DC 12V / PoE (IEEE 802.3af)  * ...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

GV-EBL2111 2MP H.264 4.3X Zoom Super Low Lux WDR IR Bullet IP Camera


* 1/2.8” progressive scan super low lux CMOS
* Dual streams from H.264 and MJPEG
* Up to 30 fps at 1920 x 1080
* Intelligent IR
* Day and Night function (with removable IR ‐cut filter)
* Megapixel lens
* P ‐ iris lens for auto iris control
* Motorized varifocal len s for remote focus/zoom adjustment
* Vandal resistance (IK10 for metal casing)
* Ingress protection (IP67)
* DC 12V / PoE (IEEE 802.3af)
* Wide Dynamic Range (WDR)
* 3D noise reduction
* Defog
* Motion detection
* Tampering alarm
* Text overlay
* Privacy mask
* IP address filtering
* Record ing assigned by GV ‐Edge Recording Manager (Windows &
Mac )
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* ONVIF (Profile S) conformant

Introduction
The Target Bullet Camera is a light ‐weighted camera designed for outdoor environments. It adheres to the IP67 standard and has full
protection against dust and jets of water. The camera also allows automatic and precise control of exposure using its P ‐ iris, producing
images with better clarity and contrast. With the mo torized focus/zoom, users can remotely adjust the focus and zoom from the Web
interface. The camera offers an entry ‐level surveillance solution with all the essential features and excellent image quality.

Active Tampering Alarm
Tampered Focus Change Camera Shift



GV-EBL2111 Series February 22, 2018
- 1 -

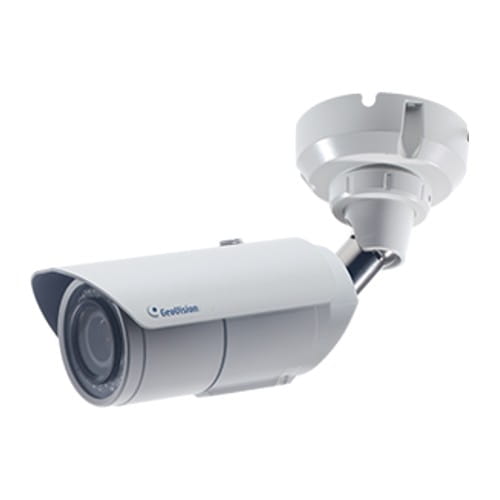

Overview
Dimensions



Specifications
Camera
Image Sensor 1/2.8” progressive scan super low lux CMOS

Picture Elements 1920 (H) x 1080 (V)

Color 0.005 Lux

B/W 0.004 Lux

Minimum
Illumination
IR ON 0 Lux

Shutter Speed Automatic, manual (1/30 ~ 1/16000 sec.)

White Balance Automatic, manual (2800K ~ 8500K)

Gain Control Automatic

S/N Ratio 56 dB

WDR Yes

Dynamic Range Up to 72 dB

Lens

Megapixel Yes

Day/Night Yes (with removable IR ‐cut filter)

Lens Type Motorized varifocal lens

Focal Length 2.8 ~ 12 mm

Maximum Aperture F/1.7

Mount Ø14 mm

Horizontal FOV 102° ~ 40°

Image Format 1/2.7”

Focus Auto Focus

Zoom 4.3X Optical Zoom

Operation
Iris P ‐ Iris

IR LED Quantity 24 IR LEDs

Max. IR Distance 75 m (246.06 ft)

Operation

Video Compression H.264, MJPEG

Video Stream Dual streams from H.264 and MJPEG

Frame Rate
30 fps at 1920 x 1080 (60/50 Hz)
*The frame rate and the performance may vary depending on the number of connections
and data bitrates (different scenes).

Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image
Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog, Denoise,
Metering, Low Lux Enhancement, Zoom, Focus Change

Audio Support N/A

GV-EBL2111 Series February 22, 2018
- 2 -

Video Resolution
4 : 3 1280 x 960, 640 x 480

16 : 9 1920 x 1080 (Default), 1280 x 720

Main Stream
5 : 4 1280 x 1024, 640 x 512

4 : 3 640 x 480, 320 x 240

16 : 9 640 x 360 (Default)

Sub Stream
5 : 4 640 x 512, 320 x 256

Network

Interface 10/100 Ethernet

Protocol
DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), QoS (DSCP), RTSP, SNMP, SMTP,
TCP, UDP, UPnP, 3GPP/ISMA

Mechanical

Temperature Detector Yes

Pan 0° ~ 360°
Camera Angle
Adjustment
Tilt 90° ~ 180°

Power 2 ‐pin terminal block (DC 12V, 1.25A), PoE

Connectors
Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45 cable

General

Start ‐ up
Environment
Temperature
Operation
‐20°C ~ 60°C ( ‐ 4°F ~ 140°F)
Humidity 10% to 90% (no condensation)

Power Source 12V DC / PoE (IEEE 802.3af)

Max. Power Consumption 12.3 W

Dimensions 142.14 x 77.72 x 102.75 mm (5.6” x 3.06” x 4.05”)

Weight 810 g (1.79 lb)

Ingress Protection IP67

Vandal Resistance IK10 for metal casing

Regulatory CE, FCC, RCM, RoHS compliant

Power over Ethernet

PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)

PoE Power Supply Type End ‐Span and Mid ‐Span

PoE Power Output Per Port 48V DC, 350mA, Max. 15.4 watts

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm, Text
Overlay, Digital PTZ

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek /
Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian /
Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian /
Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Application

Network Storage GV ‐ DVR / NVR / VMS, GV ‐Recording Server

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing Browser (IE, Chrome, Firefox, Safari), Mobile app

CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor

Note:
1. The signal range and data throughput may vary depending on the network conditions and environmental factors.
2. Specifications are subject to change without notice.

Packing List
1. Target Bullet Camera
2. Sun ‐shield Cover
3. Screw for Sun ‐shield Cover x 2
4. Screw for Supporting Rack x 3
5. Screw Anchor x 3
6. Silica Gel Bag x 2
7. Washer x 2
8. Terminal Block
9. Screw for Mounting Kit x 3
10. Nut for Mounti ng Kit x 3
11. Hex Key
12. Download Guide
13. Warranty Card
N

ote: The power adapter can be purchased upon request.
GV-EBL2111 Series February 22, 2018
- 3 -

Accessories
Name
Details

GV ‐Mount300 Convex Corner Adapter Kit



Dimensions: 238.6 x 409.5 mm (9.4’’ x 16.1”)

Weight: 4.27 kg (9.41 lb)

GV ‐Mount310 Concave Corner Adapter Kit



Dimensions: 123.3 x 393.1 mm (4.9’’ x 15.5”)

Weight: 2.96 kg (6.53 lb)

GV ‐Mount400 Pole Mount Bracket Kit
(Ø 4" ~ 6")



Bracket: 241 x 161 mm (9.5’’ x 6.3”)

Weight: 1.70 kg ( 3.75 lb)

Steel Strap Diameter: Ø 4" ~ 6"

GV ‐Mount410 Pole Mount Bracket Kit
(Ø 6" ~ 7.5")



Bracket: 241 x 161 mm (9.5’’ x 6.3”)

Weight: 1.70 kg (3.75 lb)

Steel Strap Diameter: Ø 6" ~ 7.5"

GV ‐PA191 PoE Adapter



Dimensions (H x W x D): 43 x 69 x 40 mm (1.69” x 2.72” x 1.57”)

Weight: 130 g (0.29 lb)

Power Adapter Contact our sales representatives for the countries and areas supported.

GV ‐PoE Switch The GV ‐PoE Switch is designed to provide power along with network connection for IP

devices. The GV ‐PoE Switch is available in various models with different numbers and

types of ports.


GV-EBL2111 Series February 22, 2018
- 4 -
