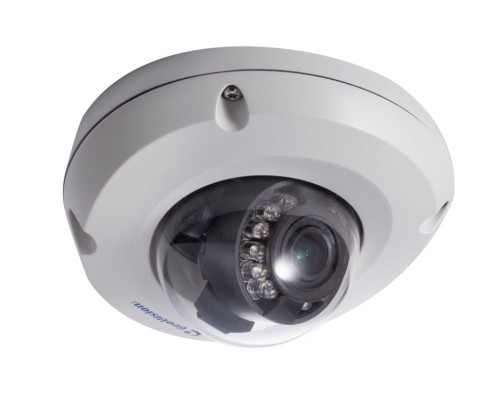

GV-EDR1100-2F

GV-EDR1100 Series 1.3MP H.264 Low Lux WDR IR Mini Fixed Rugged IP Dome        * 1/3” progressive scan low lux CMOS  * Dual streams from H.264 and MJPEG  * Up to 30 fps at 1280 x 1024  * Intelligent IR  * Day and Night function (with removable IR ‐cut filter)  * Vandal resistance (IK10 for metal casing)  * Ingress protection (IP67)  * 2 ‐axis mechanism (p an / tilt)  * Wide Dynamic Range (WDR)  * Defog  * Motion detection  * Tampering alarm  * Text overlay  * Privacy mask

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

GV-EDR1100 Series 1.3MP H.264 Low Lux WDR IR Mini Fixed Rugged IP Dome



* 1/3” progressive scan low lux CMOS
* Dual streams from H.264 and MJPEG
* Up to 30 fps at 1280 x 1024
* Intelligent IR
* Day and Night function (with removable IR ‐cut filter)
* Vandal resistance (IK10 for metal casing)
* Ingress protection (IP67)
* 2 ‐axis mechanism (p an / tilt)
* Wide Dynamic Range (WDR)
* Defog
* Motion detection
* Tampering alarm
* Text overlay
* Privacy mask
* IP address filtering
* DC 12V / PoE (IEEE 802.3af)
* Megapixel lens
* Recording assigned by GV ‐Edge Recording Manager (Windows
& Mac )
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* More Storage Option ‐ NAS

Introduction
The Target Mini Fixed Rugged Dome is an outdoor, fixed, mini ‐sized network camera equipped with an automatic IR ‐cut filter and IR
LEDs for day and night surveillance. The camera adheres to IK10 and IP67 standards. It is adjustable in 2 axis (pan and tilt) and can be
powered through PoE.

Models
Model Iris Focal Length (mm) Maximum Aperture Image Format

GV ‐EDR1100 ‐ 0F 2.8 F/2.0

GV ‐EDR1100 ‐ 2F
Fixed
3.8 F/1.8
1/2.7”


Active Tampering Alarm
Tampered Focus Change Camera Shift



GV-EDR1100 Series February 22, 2018
- 1 -

Dimensions



Specifications
Camera GV ‐EDR1100 ‐ 0F GV ‐EDR1100 ‐ 2F

Image Sensor 1/3” progressive scan low lux CMOS

Picture Elements 1280 (H) x 1024 (V)

Color 0.05 Lux

B/W 0.03 Lux

Minimum
Illumination
IR ON 0 Lux

Shutter Speed Automatic, manual (1/5 ~ 1/8000 sec)

White Balance Automatic, manual (2800K ~ 8500K)

Gain Control Automatic

S/N Ratio 50 dB

WDR Yes

Dynamic Range Up to 72 dB

Lens

Megapixel Yes

Day/Night Yes (with removable IR ‐cut filter)

Focal Length 2.8 mm 3.8 mm

Lens Type Fixed

Maximum Aperture F/2.0 F/1.8

Mount M12, Pitch 0.5 mm

Horizontal FOV 93° 64°

Image Format 1/2.7"

Focus Fixed

Zoom Fixed

Operation
Iris Fixed

IR LED Quantity 12 IR LEDs

Max. IR Distance 15 m (50 ft)

Operation

Video Compression H.264, MJPEG

Video Streaming Dual streams from H.264 and MJPEG

Frame Rate
30 fps at 1280 x 1024 (60/50 Hz)
* The frame rate and the performance may vary depending on the number of connections
and data bitrates (different scenes).

Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image
Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog

Audio Support N/A

GV-EDR1100 Series February 22, 2018
- 2 -


Video Resolution
4:3 1280 x 960, 640 x 480, 320 x 240

16:9 1280 x 720, 640 x 360, 448 x 252

Main Stream
5:4 1280 x 1024 (Default), 640 x 512, 320 x 256

4:3 640 x 480, 320 x 240

16:9 640 x 360, 448 x 252

Sub Stream
5:4 640 x 512, 320 x 256 (Default)

Network

Interface 10/100 Ethernet

Ethernet Protocol
DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), QoS (DSCP), RTSP, SNMP, SMTP,
TCP, UDP, UPnP, 3GPP/ISMA, IPv4, IPv6

Mechanical

Pan ‐ 45° ~ 45°
Camera Angle
Adjustment
Tilt 0° ~ 63°

Power 2 ‐pin terminal block (DC 12V, 1.25A), PoE

Connectors
Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45 cable

LED Indicator 4 LEDs: Link, ACT, Power, Status

General

Start ‐ up ‐20°C ~ 50°C ( ‐ 4°F ~ 122°F)

Environment
Temperature
Operation ‐30°C ~ 50°C ( ‐22°F ~ 122°F)

Humidity 10% to 90% (no condensation)

Power Source 12V DC / PoE (IEEE 802.3af)

Max. Power Consumption 5.8 W

Dimension ø 114 x 62.8 mm (4.49” x 2.47”)

Weight 600 g (1.32 lb)

Ingress Protection IP67

Vandal Resistance IK10 for metal casing

Regulatory CE, FCC, RCM, RoHS compliant

Power over Ethernet

PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)

PoE Power Supply Type End ‐span

PoE Power Output Per Port 48V DC, 350 mA, Max. 15.4 watts

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital
PTZ

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek /
Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian /
Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian /
Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

Network Storage GV ‐DVR/NVR, GV ‐Recording Server, GV ‐VMS

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing IE, Mobile App

CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor

Note: Specifications are subject to change without prior notice.


GV-EDR1100 Series February 22, 2018
- 3 -

Packing List
1. Target Mini Fixed Rugged Dome
2. Screw x 2
3. Screw Anchor x 2
4. Focus Adjustment Ring
5. Installation Sticker
6. Conduit Converter
7. RJ ‐ 45 Connector
8. Waterproof rubber sets
(for RJ ‐ 45 Cat.5 and 12V DC / for RJ ‐ 45 Cat.6)
9. Torx Wrench
10. Silica Gel Bag x 2
11. Adhesive Tape for Silica Gel Bag x 2
12. Concave hexagon Wrench
13. Ruler
14. Screw for Conduit Converter x 2
15. Download Guide
16. Warranty Card
Note: Power adapters can be purchased upon request.

Accessories
Model No. Name Details
GV ‐ Mou nt909 Wa ll Mount Bracket


Dimensions: 170 x 150 x 110 mm (6.7” x 5.9” x 4.3”)
Weight: 610 g (1.34 lb)
GV ‐ Mou nt910 Power Box Mount
Bracket


Dimensions: 112 x 98 x 7.5 mm (4.4” x 3.9” x 0.3”)
Weight: 105 g (0.23 lb)
GV ‐ Mou nt913 Power Box Mount
Bracket


Dimensions: Ø 146 x 7.5 mm (Ø 5.7” x 0.3”)
Weight: 180 g (0.4 lb)
GV-Mount918

Wall Mount Bracket for
MFD/MDR/EFD/EDR


Dimensions: Ø 145 x 117 x 96 mm (Ø 5.71” x 4.60” x
3.78”)
Weight: 350 g (0.77 lb)
GV-EDR1100 Series February 22, 2018
- 4 -



Model No. Name
Details
GV ‐PA191
PoE Adapter

Dimensions (H x W x D): 43 x 69 x 40 mm (1.69” x
2.72” x 1.57”)
Weight: 130 g (0.29 lb)
Plastic PG21
Conduit Connector
The plastic PG21 conduit connector is used for
running the wires of the camera through a 1/2”
conduit pipe.
GV ‐ PoE Sw itch
The GV ‐ PoE Switch is designed to provide power along with network connection
for IP devices. The GV ‐ PoE Switch is available in various models with different
numbers and types of ports.
Power Adapter
Contact our sales representatives for the countries and areas supported.
