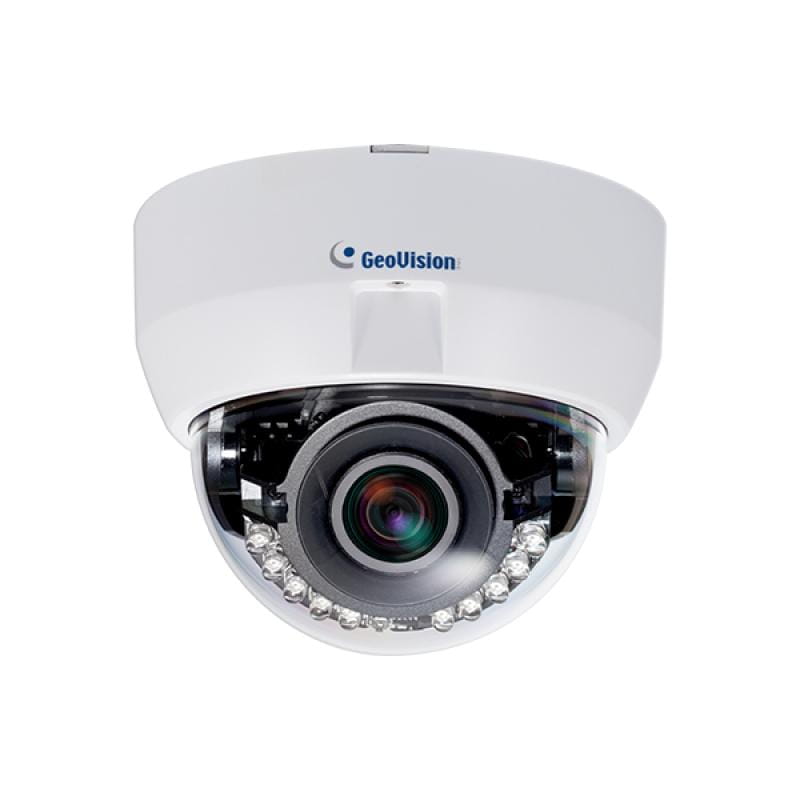

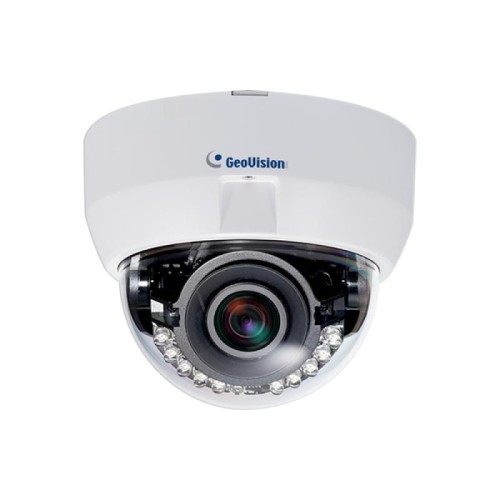

GV-EFD2101 2MP H.264 Super Low Lux WDR IR Fixed IP Dome





* 1/2.8” progressive scan super low lux CMOS
* Dual streams from H.264 and MJPEG
* Up to 30 fps at 1920 x 1080
* Intelligent IR
* Day and Night function (with removable IR ‐cut filter)
* Megapixel varifocal lens
* P ‐ Iris lens for auto Iris control
* IR di stance up to 50 m (164 ft)
* 3 ‐axis mechanism (pan / tilt / rotate)
* DC 12V / PoE (IEEE 802.3af)
* Two ‐way audio
* Wide Dynamic Range (WDR)
* 3D noise reduction
* Defog
* Motion detection
* Tampering alarm
* Text overlay
* Privacy mask
* IP address filtering
* Recording assigned by GV ‐Edge Recording Manager (Windows
& Mac )
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* More storage option – NAS


Introduction
The Target Fixed Dome is an indoor, fixed network camera equipped with an automatic IR ‐cut filter, Super Low Lux, and IR LEDs for
day and night surveillance. Adjustable in 3 axis (pan, tilt and rotate), it offers a surveillance solution with all the essential features and
excellent image quality.

Active Tampering Alarm
Tampered Focus Change Camera Shift



GV-EFD2101 February 22, 2018
- 1 -

Dimensions
Hard‐Ceiling Mount


In ‐Ceiling Mount




Specifications
Camera
Image Sensor 1/2.8” progressive scan super low lux CMOS
Picture Elements 1920 (H) x 1080 (V)
Color 0.005 Lux
B/W 0.004 Lux
Minimum
Illumination
IR ON 0 Lux
Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec)
White Balance Automatic, Manual (2800K ~ 8500K)
Gain Control Automatic
S/N Ratio 56 dB
WDR Yes
Dynamic Range Up to 72 dB
Lens
Megapixel Yes
Day/Night Yes (with removable IR ‐cut filter)
Focal Length 3 ~ 9 mm
Lens Type Varifocal
Maximum Aperture F/1.7

GV-EFD2101 February 22, 2018
- 2 -

Mount Ø14 mm
Horizontal FOV 102° ~ 40°
Image Format 1/2.8”
Focus Manual (w/lock)
Zoom Manual (w/lock)
Operation
Iris P ‐ Iris
Max. Torque (Focus / Zoom Screws) 0.049 N.m
IR LED Quantity 20 IR LEDs
Max. IR Distance 50 m (164.04 ft)
Operation
Video Compression H.264, MJPEG
Video Streaming Dual streams from H.264 and MJPEG
Frame Rate
30 fps at 1920 x 1080 (60/50 Hz)
* The frame rate and the performance may vary depending on the number of connections
and data bitrates (different scenes).
Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image
Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog, Low Lux
Enhancement
Audio Compression G.711, AAC (Optional)
Audio Support Two ‐way Audio
Video Resolution
4:3 1280 x 960, 640 x 480, 320 x 240
16:9 1920 x 1080 (Default), 1280 x 720, 640 x 360, 448 x 252
Main Stream
5:4 1280 x 1024, 640 x 512, 320 x 256
4:3 640 x 480, 320 x 240
16:9 640 x 360 (Default), 448 x 252
Sub Stream
5:4 640 x 512, 320 x 256
Network
Interface 10/100 Ethernet
Ethernet Protocol
DHCP, DynDNS, FTP, HTTP, HTTPS, IPv6, NTP, ONVIF (Profile S), QoS (DSCP), RTSP, SNMP,
SMTP, TCP, UDP, UPnP, 3GPP/ISMA
Mechanical
Temperature Detector
Yes
Pan 0° ~ 350°

Tilt 0° ~ 75°
Camera Angle
Adjustment
Rotate 0° ~ 340°
Power 2 ‐pin terminal block (DC 12V, 1.25A), PoE
Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45 cable
Audio
1 In (microphone phone jack, 3.5 mm / 0.14”)
1 Out (stereo phone jack, 3.5 mm / 0.14”)
Connectors
TV ‐ Out BNC connector (D1 resolution)
LED Indicator 2 LEDs: Power, Status
General
Start ‐ up
Environment
Temperature
Operation
0°C ~ 50°C (32°F ~ 122°F)
Humidity 10% to 90% (no condensation)

Power Source 12V DC / PoE (IEEE 802.3af)

Max. Power Consumption 5.8 W

Dimension ø 125 x 99.5 mm (4.92” x 3.92”)

Weight 470 g (1.04 lb)

Regulatory CE, FCC, RCM, RoHS compliant

Power over Ethernet

PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)

PoE Power Supply Type End ‐Span

PoE Power Output Per Port 48V DC, 350mA. Max. 15.4 watts

Web Interface

Installation Management Web ‐based configuration

GV-EFD2101 February 22, 2018
- 3 -

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital
PTZ

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek /
Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian /
Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian /
Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

Network Storage GV ‐DVR/NVR, GV ‐Recording Server, GV ‐VMS

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing IE, Mobile App

CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor

Note: Specifications are subject to change without prior notice.

Packing List
1. Target Fixed Dome
2. Screw x 3
3. Screw Anchor x 3
4. Torx Wrench
5. TV ‐ Out Wire
6. Installation Sticker
7. Download Guide
8. Warranty Card
Note: Power adapters can be purchased upon request.

Accessories
Model No. Name Details

GV ‐Mount100 Straight Tube and
Junction Box Kit


Dimensions: 200 x 170 x 257.5 mm (7.9” x
6.7” x 10.1”)
Weight: 3.17 kg (6.99 lb)

GV ‐Mount101 Straight T ube Kit Dimensions: 219 x 125 x 332 mm (8.6” x 4.9”


x 13.1”)
Weight: 1.8 kg (3.97 lb)

GV ‐Mount200 Wall P endant Tube Dimensions: 225 x 140 x 250 mm (8.9” x 5.5”

x 9.8”)
Weight: 900 g (1.98 lb)



GV-EFD2101 February 22, 2018
- 4 -

GV ‐Mount203 Wall Pendant Tube and
Junction Box Kit


Dimensions: 315 x 195.5 x 225 mm (12.4” x
7.7” x 8.9”)
Weight: 2.95 kg (6.5 lb)

GV ‐Mount300 Convex Corner Adapter
Kit


Dimensions: 238.6 x 409.5 mm (9.4” x 16.1”)
Weight: 4.27 kg (9.41 lb)


GV ‐Mount310 Concave Corner Adapter
Kit


Dimensions: 123.3 x 393.1 mm (4.9” x 15.5”)
Weight: 2.96 kg (6.53 lb)

GV ‐Mount400 Pole Mount Bracket Kit
(Ø 4” ~ 6”)


Bracket: 241 x 161 mm (9.5” x 6.3”)
Weight: 1.70 kg ( 3.75 lb)
Steel Strap Diameter: Ø 4” ~ 6”

GV ‐Mount410 Pole Mount Bracket Kit
(Ø 6” ~ 7.5”)


Bracket: 241 x 161 mm (9.5” x 6.3”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6” ~ 7.5”

GV ‐Mount702 Extension Tube


Four options are available.
Dimensions:
Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1” x 3.9” or 7.9” or 11.8” or 19.7”)
Weight:
180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)

GV ‐Mount909 Wall Box Mount


Dimensions: 170 x 150 x 110 mm (6.7” x 5.9”
x 4.3’’)
Weight: 610 g (1.34 lb)

GV ‐Mount910 Power Box Mount
Bracket


Dimensions: 112 x 98 x 7.5 mm (4.4” x 3.9” x
0.3”)
Weight: 105 g (0.23 lb)

GV-EFD2101 February 22, 2018
- 5 -

GV ‐Mount913 Power Box Mount
Bracket


Dimensions: Ø 146 x 7.5 mm (Ø 7.04” x 2.5”)
Weight: 180 g (0.4 lb)

GV ‐Mount915 In ‐Ceiling Mounting Kit
for GV ‐EFD2101 / 3101 /
5101



Dimensions: Ø 172.5 x 63.8 mm (Ø 7.04” x
2.5”)
Weight: 424 g (0.93 lb)

GV ‐Mount917 GV ‐EFD2101 / 3101 /
5101 Dome Housing



Dimensions: Ø 186 x 97.5 mm
(Ø 7.3” x 3.8”)
Weight: 948 g (2.09 lb)

GV ‐PA191 PoE Adapter


Dimensions (H x W x D): 43 x 69 x 40 mm
(1.69” x 2.72” x 1.57”)
Weight: 130 g (0.29 lb)

GV ‐PoE Switch
The GV ‐PoE Switch is designed to provide power along with network connection

for IP devices. The GV ‐PoE Switch is available in various models with different

numbers and types of ports.

Power Adapter
Contact our sales representatives for the countries and areas supported.
