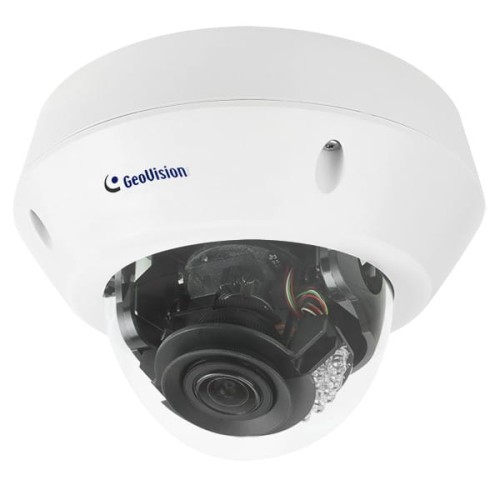

GV-EVD2100 2MP H.264 Super Low Lux WDR IR Vandal Proof IP Dome

* 1/2.8” progressive scan super low lux CMOS
* Min. illumination at 0.004 lux
* Dual streams from H.264 and MJPEG
* Up to 30 fps at 1920 x 1080
* Vandal resistance (IK10 for metal casing)
* Ingress protection (IP67)
* Megapixel varifocal lens
* P ‐ iris lens for auto iris con trol
* Intelligent IR
* IR distance up to 50 m (164 ft)
* Day and Night function (with removable IR ‐cut filter)
* 3 ‐axis mechanism (pan / tilt / rotate)
* DC 12V / PoE (IEEE 802.3af)
* Two ‐way audio
* Wide Dynamic Range (WDR)
* 3D noi se reduction
* Defog
* Motion detection
* Tampering alarm
* Text overlay
* Privacy mask
* IP address filtering
* Recording assigned by GV ‐Edge Recording Manager (Windows
& Mac )
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* More storage option ‐ NAS




Introduction
The Target Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. The camera
is equipped with an automatic IR ‐cut filter and IR LEDs for day and night surveillance. With the super low lux CMOS image sensor, the
camera is capable of providing a color liv e view in near darkness. Adjustable in 3 axis (pan, tilt and rotate), it offers an entry ‐level
surveillance solution with all the essential features and excellent image quality.

Active Tampering Alarm
Tampered Focus Change Camera Shift




GV-EVD2100 February 22, 2018
- 1 -

Dimensions



Specifications
Camera

Image Sensor 1/2.8” progressive scan super low lux CMOS

Picture Elements 1920 (H) x 1080 (V)

Color 0.005 Lux

B/W 0.004 Lux

Minimum
Illumination
IR ON 0 Lux

Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec)

White Balance Automatic, Manual (2800K ~ 8500K)

Gain Control Automatic

S/N Ratio 56 dB

WDR Yes

Dynamic Range Up to 72 dB

Lens

Megapixel Yes

Day/Night Yes (with removable IR ‐cut filter)

Focal Length 3 ~ 9 mm

Lens Type Varifocal

Maximum Aperture F/1.7

Mount Ø14 mm

Horizontal FOV 102° ~ 40°

Image Format 1/2.8”

Focus Manual (with lock)

Zoom Manual (with lock)

Operation
Iris P ‐ iris

Max. Torque (Focus / Zoom Screws) 0.049 N.m

IR LED Quantity 20 IR LEDs

Max. IR Distance 50 m (164.04 ft)

Operation

Video Compression H.264, MJPEG

Video Streaming Dual streams from H.264 and MJPEG

Frame Rate
30 fps at 1920 x 1080 (60/50 Hz)
* The frame rate and the performance may vary depending on the number of connections
and data bitrates (different scenes).

Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image
Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog, Low Lux
Enhancement

Audio Compression G.711, AAC (Optional)

Audio Support Two ‐way Audio

GV-EVD2100 February 22, 2018
- 2 -


Video Resolution
4:3 1280 x 960, 640 x 480, 320 x 240

16:9 1920 x 1080 (Default), 1280 x 720, 640 x 360, 448 x 252

Main Stream
5:4 1280 x 1024, 640 x 512, 320 x 256

4:3 640 x 480, 320 x 240

16:9 640 x 360 (Default), 448 x 252

Sub Stream
5:4 640 x 512, 320 x 256

Network

Interface 10/100 Ethernet

Ethernet Protocol
DHCP, DynDNS, FTP, HTTP, HTTPS, IPv6, NTP, ONVIF (Profile S), QoS (DSCP), RTSP, SNMP,
SMTP, TCP, UDP, UPnP, 3GPP/ISMA

Mechanical

Temperature Detector Yes

Pan 0° ~ 350°

Tilt 0° ~ 75°

Camera Angle
Adjustment
Rotate 0° ~ 340°

Power 2 ‐pin terminal block (DC 12V, 1.25A), PoE

Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45 cable

Audio
1 In (microphone jack, 3.5 mm / 0.14”)
1 Out (stereo phone jack, 3.5 mm / 0.14”)

Connectors
TV ‐ Out BNC connector (D1 resolution)

LED Indicator 2 LEDs: Power, Status

General

Start ‐ up ‐20°C ~ 50°C ( ‐ 4°F ~ 122°F) Environment
Temperature
Operation ‐30°C ~ 50°C ( ‐22°F ~ 122°F)

Humidity 10% to 90% (no condensation)

Power Source 12V DC / PoE (IEEE 802.3af)

Max. Power Consumption 6.1 W

Dimension ø160 x 108.4 mm (6.2” x 4.27”)

Weight 1.15 kg (2.54 lb)

Ingress Protection IP67

Vandal Resistance IK10

Regulatory CE, FCC, RCM, RoHS compliant

Power over Ethernet

PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)

PoE Power Supply Type End ‐Span

PoE Power Output Per Port 48V DC, 350 mA. Max. 15.4 watts

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital
PTZ

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek /
Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian /
Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian /
Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

Network Storage GV ‐DVR/NVR, GV ‐Recording Server, GV ‐VMS

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing IE, Mobile App

CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor

Note: Specifications are subject to change without prior notice.


GV-EVD2100 February 22, 2018
- 3 -

Packing List
1. Target Vandal Proof Dome
2. Screw x 4
3. Screw Anchor x 4
4. TV ‐ Out Wire
5. Audio Wires x 2
6. Installation Sticker
7. Conduit Converter
8. RJ ‐ 45 Connector
9. Waterproof rubber sets
(for RJ ‐ 45 Cat.5 and DC12V / for RJ ‐ 45 Cat.6)
10. Torx Wrench
11. Big Concave hexagon Wrench
12. Small Concave hexagon Wrench
13. Silica Gel Bag
14. Sticker (for Silica Gel Bag)
15. Ruler
16. Download Guide
17. Warranty Card
Note: Power adapters can be purchased upon request.


Accessories
Model No. Name Details

GV ‐Mount100 Straight Tube and
Junction Box Kit


Dimensions: 200 x 170 x 257.5 mm (7.9” x 6.7” x
10.1”)
Weight: 3.17 kg (6.99 lb)

GV ‐Mount101 Straight T ube Kit Dimensions: 219 x 125 x 332 mm (8.6” x 4.9” x


13.1”)
Weight: 1.8 kg (3.97 lb)

GV ‐Mount200 Wall P endant Tube Dimensions: 225 x 140 x 250 mm (8.9” x 5.5” x

9.8”)
Weight: 900 g (1.98 lb)


GV ‐Mount203 Wall P endant Tube
and Junction Box Kit

Dimensions: 315 x 195.5 x 225 mm (12.4” x 7.7” x
8.9”)
Weight: 2.95 kg (6.5 lb)


GV ‐Mount206 Wall Moun t Bracket
Kit


Dimensions: 126.5 x 211.3 x 176.85 mm (5” x 8.3”
x 6.96’’)
Weight: 0.93 kg (2.06 lb)

GV-EVD2100 February 22, 2018
- 4 -


Model No. Name Details

GV ‐Mount 208 ‐ 2 Swan Neck Mount


Dimensions: 1043 x 519 x 256 mm (41.06” x
20.43” x 10.08")
Weight 10.5 kg (23.15 lb)

GV ‐Mount300 Convex Corner Adapter
Kit


Dimensions: 238.6 x 409.5 mm (9.4” x 16.1”)
Weight: 4.27 kg (9.41 lb)

GV ‐Mount310 Concave Corner
Adapter Kit


Dimensions: 123.3 x 393.1 mm (4.9” x 15.5”)
Weight: 2.96 kg (6.53 lb)

GV ‐Mount400 Pole Mount Bracket
Kit (Ø 4” ~ 6”)


Bracket: 241 x 161 mm (9.5” x 6.3”)
Weight: 1.70 kg ( 3.75 lb)
Steel Strap Diameter: Ø 4” ~ 6”

GV ‐Mount410 Pole Mount Bracket Kit
(Ø 6” ~ 7.5”)


Bracket: 241 x 161 mm (9.5” x 6.3”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6” ~ 7.5”

GV ‐Mount702 Extension Tube


Four options are available.
Dimensions:
Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1” x 3.9” or 7.9” or 11.8” or 19.7”)
Weight:
180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)

GV-EVD2100 February 22, 2018
- 5 -


Model No. Name Details

GV ‐Mount903 GV ‐ VD Series Dome
Housing


Dimensions: Ø 186 x 97.5 mm (Ø 7.3” x 3.8”)
Weight: 600 g (1.32 lb)

GV ‐Mount916 In ‐Ceiling Mount


Dimensions: Ø 205 x 63.8 mm (Ø 8” x 2.5”)
Weight: 645 g


GV ‐ PA 191 PoE Adapter


Dimensions (H x W x D): 43 x 69 x 40 mm (1.69” x
2.72” x 1.57”)
Weight: 130 g (0.29 lb)

Plastic PG21 Conduit Connector


The plastic PG21 conduit connector is used for
running the wires of the camera through a 1/2”
conduit pipe.

Metal PG21 Conduit Connector


The metal PG21 conduit connector allows you to
run the wires through a 3/4” conduit pipe.

GV ‐PoE Switch
The GV ‐ PoE Switch is designed to provide power along with network connection for

IP devices. The GV ‐ PoE Switch is available in various models with different numbers

and types of ports.

Power Adapter Contact our sales representatives for the countries and areas supported.
