GV-GFER12800 September 16, 2025
- 1 -

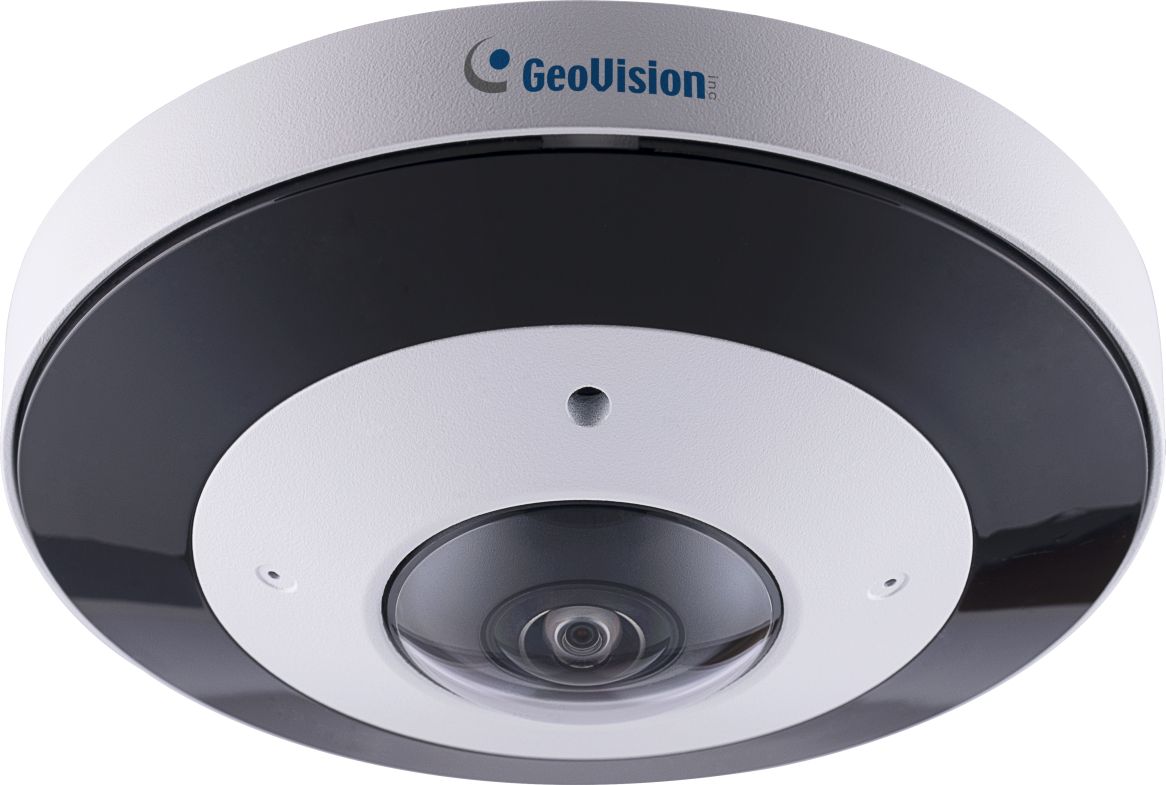

GV-GFER12800 AI 12MP H.265 Super Low Lux IR Fisheye Rugged IP Camera





Introduction
GV-GFER12800 is a 12 MP outdoor fisheye camera that allows you to monitor all angles of a location and can be installed on the
ceiling or the wall. The camera supports H.265 video codec to achieve a better compression ratio while maintaining high-quality
images at reduced network bandwidths. The camera adheres to IP67 and IK10 standards and can be powered through PoE.
Furthermore, the camera has the capability to conduct on-edge fisheye dewarping, eliminating the need to utilize recourses from
the backend devices.
Empowered by deep learning algorithms, AI technology distinguishes humans and vehicles from other moving objects. When
integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real-time alerts, events playback,
and more.

Key Features
• AI deep learning: AI Perimeter Protection & Classification
(Human, Vehicle)
• 1/1.7" progressive scan CMOS sensor
• Min. illumination at 0.01 lux
• Triple streams from H.265, H.264, or MJPEG
• Up to 30 fps at 3000 x 3000
• Day / Night functionality (with removable IR-cut filter)
• Intelligent IR
• IR distance up to 20 m (66 ft)
• Two-way audio capable
• Built-in microphone
• Built-in microSD card slot (SD / SDHC / SDXC) for local
storage
• DC 12V / PoE (IEEE 802.3af)
• Ingress protection (IP67)
• Vandal resistance (IK10)
• 360° and 180° panorama view
• AI analytics (Line Crossing, Region Entrance, Region
Exiting, Region Intrusion, Target Counting, Heat Map,
Crowd Density)
• Defog
• 3D noise reduction
• Motion detection
• Virtual PTZ function
• Auto Pan function
• Text overlay
• Privacy mask
• 19 languages supported
• ONVIF (Profile G, S) conformant





GV-GFER12800 September 16, 2025
- 2 -
Deep Learning Function
AI Perimeter Protection People Flow Counting
(Intrusion, Crossing Line,
Entering Area, Leaving Area)



Specifications
Camera
Image Sensor 1/1.7” progressive scan CMOS
Picture Elements 4000 (H) x 3000 (V)
Minimum
Illumination
Color 0.01 Lux (F2.0, AGC ON)
B/W 0 Lux
IR On 0 Lux
Shutter Speed Auto / Manual (1/3 ~ 1/100000 sec)
White Balance Auto / Manual
Gain Control Auto / Manual
S/N Ratio 50 dB
WDR Yes
Dynamic Range Up to 90 dB
Lens
Megapixel 12 MP
Day/Night Yes (with removable IR‐cut filter)
Lens Type Fixed
Focal Length 1.65 mm
Maximum Aperture F/2.0
Mount M12
Image Format 1/1.7”
FOV
Horizontal 180°
Vertical 180°
Diagonal 180°
Operation
Focus Fixed
Zoom Fixed
Iris Fixed
IR LED
Quantity 4 IR LEDs
Max. IR Distance 20 m (66 ft)
DORI Detect Observe Recognize Identify
Lens 1.65 mm 33 m (108.2 ft) 13.1 m (42.9 ft) 6.6 m (21.6 ft) 3.3 m (10.8 ft)
Operation
Video Compression H.265, H.265+, H.264, H.264+, MJPEG
Video Streaming Triple streams from H.265, H.264, or MJPEG
Frame Rate
Max. 30 fps (60 Hz) / 25 fps (50 Hz) at 3000 x 3000, 2160 x 2160, 1440 x
1440, 1080 x 1080, 960 x 960, 720 x 720, 640 x 640, 480 x 480, 360 x 360
Max. 20 fps (50 & 60 Hz) / 10 fps (50 & 60 Hz) at 4000 x 3000, 3840 x
2160, 3200 x 1800, 2560 x 1440, 1920 x 1080, 1280 x 720, 960 x 540, 640
x 480, 640 x 360
Max. 15 fps (50 & 60 Hz) at 3000 x 3000, 2160 x 2160, 1440 x 1440, 1280
x 720, 1080 x 1080, 960 x 960, 960 x 540, 720 x 720, 640 x 640, 480 x
480, 360 x 360
* The frame rate and the performance may vary depending on the
number of connections and data bitrates (different scenes).



GV-GFER12800 September 16, 2025
- 3 -
Maximum Throughput 80 Mbps
Maximum Streams
* When the total bitrate is within the maximum
throughput
6
Video Analytics Motion Detection
Smart Alarm
Motion Detection, SD Card Error, SD Card Full, IP Address Conflict, Cable
Disconnection
Image Settings
Brightness, Contrast, Hue, Saturation, Sharpness, 3D Noise Reduction,
Defog, BLC, Antiflicker, Smart IR, Image Orientation (Flip, Mirror, 0°,
180°)
Stream Mode
& Supported
Live Preview
1: Fisheye Fisheye View
2: Panoramic View Panoramic View (Ceiling / Desktop: 180° x 2, Wall: 360°)
3: Fisheye + Panoramic View + 3 PTZ
Fisheye View,
Panoramic View (Ceiling / Desktop: 180° x 2, Wall: 360°),
Fisheye View + PTZ x 3,
Panoramic View (Ceiling / Desktop: 180° x 2, Wall: 360°) + PTZ x 3
4: Fisheye + 4 PTZ
Fisheye View,
PTZ x 4
5: Fisheye + 4 PTZ Fusion
Fisheye View,
4 PTZ Fusion
Installation
Method
& Supported
Live Preview
Ceiling Mount
Fisheye View, 180° Panoramic View x 2, Fisheye View + PTZ x 3, 180°
Panoramic View x 2 + PTZ x 3, PTZ x 4, 4 PTZ Fusion
Wall Mount
Fisheye View, 360° Panoramic View, Fisheye View + PTZ x 3, 360°
Panoramic View + PTZ x 3, PTZ x 4, 4 PTZ Fusion
Desktop Mount
Fisheye View, 180° Panoramic View x 2, Fisheye View + PTZ x 3, 180°
Panoramic View x 2 + PTZ x 3, PTZ x 4, 4 PTZ Fusion
Audio Compression G.711
Audio Support Two‐way audio (external speaker required)
Digital I/O
Input 1 input, dry contact, NO / NC
Output 1 relay output (DC 30V, 1A / AC 125V, 0.3A)
Video Resolution
Hardware
(On-Edge)
Dewarping
Main
Stream
(only in
Edge IE
mode)
Fisheye View 3000 x 3000 (default), 2160 x 2160, 1080 x 1080
Panoramic View
(Ceiling / Desktop:
180° x 2, Wall: 360°)
4000 x 3000 (default), 3840 x 2160, 3200 x 1800, 2560 x 1440
PTZ 1280 x 720 (default), 960 x 540
4 PTZ Fusion 2560 x 1440 (default)
Sub
Stream
Fisheye View 1440 x 1440 (default), 720 x 720, 480 x 480
Panoramic View
(Ceiling / Desktop:
180° x 2, Wall: 360°)
1920 x 1080 (default), 960 x 540, 640 x 480
PTZ N/A
4 PTZ Fusion 640 x 360 (default)
Third
Stream
Fisheye View 960 x 960 (default), 640 x 640, 360 x 360
Panoramic View
(Ceiling / Desktop:
180° x 2, Wall: 360°)
1280 x 720 (default), 640 x 360
PTZ N/A
4 PTZ Fusion 640 x 360 (default)
Network
Interface 10/100 Ethernet
Protocol
802.1x, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, ONVIF
(Profile G, S), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, TCP/IP,
UDP, UPnP




GV-GFER12800 September 16, 2025
- 4 -

Deep Learning Function
AI Analytics
Only the following configurations of Stream Modes and Installation
Methods enable smart detection events.
Configuration 1:
Modes: 1, 3, 4, 5
Mounting: Ceiling
Functions:
➢ Human detection only: Target Counting by Line, Line Crossing, Region
Entrance, Region Exiting, Region Intrusion, Crowd Density, Heat Map
Configuration 2:
Modes: 2, 3
Mounting: Wall or Desktop
Functions:
➢ Human and vehicle detection: Target Counting by Line, Line Crossing,
Region Entrance, Region Exiting, Region Intrusion
➢ Human detection only: Crowd Density
* A maximum of 1 smart detection event is allowed at a time to ensure
comprehensive detection results and optimized performance by the
camera.
Mechanical
Connectors
Power DC jack
Ethernet RJ-45 connector
RS-485 Half-duplex
Audio
Built-in microphone Yes
External microphone required Yes (audio jack, 3.5 mm or 0.14 in)
Built-in speaker No
External speaker required Yes (audio jack, 3.5 mm or 0.14 in)
* Choose either the built-in or external microphone.
* The Audio In port only supports microphones with a power supply.
Video Output CVBS output (BNC connector x 1)
Digital I/O 4-pin terminal block pitch 3.5 mm (0.14 in)
Local Storage microSD card slot (SD / SDHC / SDXC), up to 256 GB
General
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Humidity 0% ~ 95% (no condensation)
Power Source DC 12V / PoE (IEEE 802.3af)
Max. Power Consumption 10.5 W
Dimensions Ø 130.6 x 46.3 mm (Ø 5.14 x 1.82 in)
Weight 516.2 g (1.14 lb)
Ingress Protection IP67
Vandal Resistance IK10
Certification CE, FCC, RoHS compliant
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or GV-IP Device Utility
Access from Web Browser
Live View, Playback, Image Quality, Video Recording (only in Edge IE
mode), Image Snapshot, Two-Way Audio (only in Edge IE mode), Digital
Zoom, Bandwidth Control, Virtual PTZ, Auto Pan, Text Overlay, Image
Masking, Intelligent Mark
Language
Chinese Traditional, Czech, Dutch, English, French, German, Hebrew,
Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese,
Romanian, Russian, Spanish, Spanish (Latin America), Turkish
Applications
Software Supported
GV-VMS (V17.4.8 / V18.3.5 or later, patch files required), GV-Control
Center (V4.2.1.0), GV-Edge Recording Manager for Windows (V2.2.8.0 or
later), GV-Recording Server (V2.1.1.0), GV-IP Device Utility (V9.0.3 or
later)
Smart Device Access GV-Eye for iOS and Android (V3.2.0 or later)



GV-GFER12800 September 16, 2025
- 5 -
Live Viewing
Web Browser (Edge, IE mode in Edge, Chrome, Firefox, Safari), Mobile
App
Note:
1. To avoid reflected glare by IR LED, keep a minimum distance of 1 m (3.28 ft) between the camera body and nearby walls.
2. Using a pendant or corner mount with a fisheye camera may cause IR reflection due to the camera's 360° IR illumination.
3. All specifications are subject to change without notice.

Packing List
1. GV-GFER12800
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Download Guide


Accessories
Model No. Name Details
GV-Mount112 Pendant Mount


Dimensions: Ø 131.1 x 220.7 mm
(Ø 5.16 x 8.69 in)
Weight: 0.55 kg (1.21 lb)
GV-Mount211-11 Wall Mount Bracket


Dimensions: 194.7 x 165.6 x 131.1 mm
(7.67 x 6.52 x 5.16 in)
Weight: 0.57 kg (1.26 lb)

GV-Mount470
(must be used with
Mount211-11)
Pole Mount Bracket


Dimensions: 163.3 x 54.5 x 215 mm
(6.43 x 2.15 x 8.46 in)
Weight: 1.10 kg (2.43 lb)
GV-Mount512 Junction Box


Dimensions: 131.0 x 156.9 x 33.0 mm
(5.16 x 6.18 x 1.30 in)
Weight: 0.24 kg (0.53 lb)
GV-PA191 PoE Adapter


GV-PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the
IP device through a single Ethernet cable.
GV-PA301 Gigabit PoE Adapter


GV-PA301 is a Gigabit Power over Ethernet
(PoE) adapter.
GV-POE Switch GV-POE Switch is designed to provide power along with network
connection for IP devices. The GV-POE Switch is available in various
models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas
supported.




GV-GFER12800 September 16, 2025
- 6 -
Mounting Type
Pendant Mount Wall Bracket Mount Junction Box Mount
GV-Mount112 GV-Mount211-11 GV-Mount512





Wall Bracket Mount Pole Bracket Mount
GV-Mount211-11 GV-Mount470
