GV-GFER6900 November 5, 2025
- 1 -

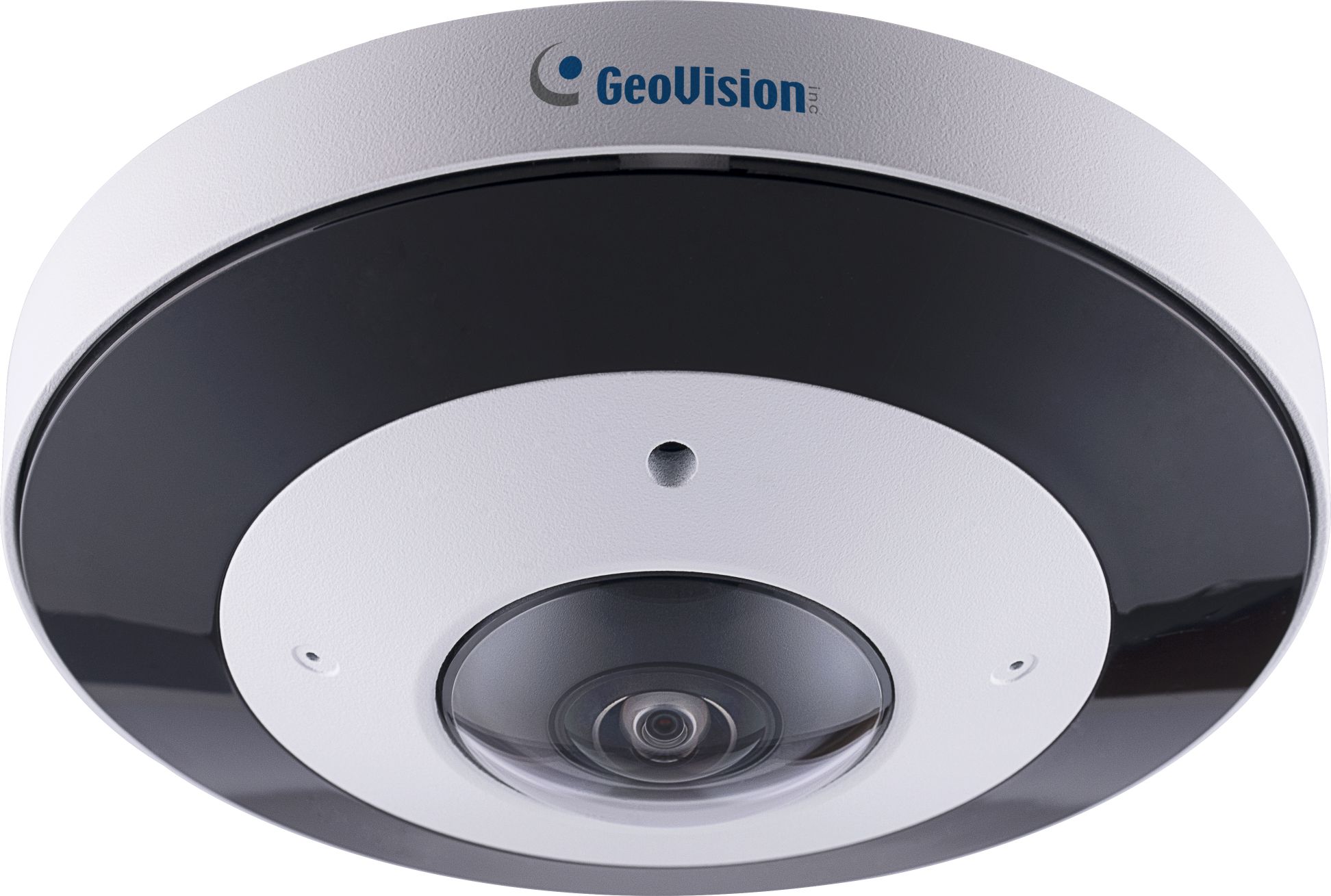

GV-GFER6900 Cloud AI 6MP H.265 Super Low Lux WDR Pro IR Fisheye Rugged
IP Camera





Introduction
GV-GFER6900 is a 6 MP fisheye camera that allows you to monitor all angles of a location and can be installed on the ceiling or the
wall. The camera supports H.265 video codec to achieve a better compression ratio while maintaining high-quality images at
reduced network bandwidths. The camera adheres to IP67 and IK10 standards and can be powered through PoE. Furthermore, the
camera has the capability to conduct on-edge fisheye dewarping, eliminating the need to utilize resources from the backend
devices.
Empowered by deep learning algorithms, AI technology distinguishes humans and vehicles from other moving objects. When
integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real-time alerts, events playback,
and more. By connecting the camera to the cloud-based data center and video surveillance solution, GV-Cloud VMS, thousands of
on-site videos, alarm devices, and AI events can be monitored and managed from a single platform.

Key Features
• Direct-to-Cloud
• AI deep learning: AI Perimeter Protection & Classification
(Human, Vehicle)
• 1/2.5" progressive scan CMOS sensor
• Min. illumination at 0.01 lux
• Triple streams from H.265, H.264, or MJPEG
• Up to 30 fps at 3200 x 1800
• Wide Dynamic Range Pro (WDR Pro)
• Day / Night functionality (with removable IR-cut filter)
• Intelligent IR
• IR distance up to 20 m (66 ft)
• Two-way audio capable
• Built-in microphone
• Built-in microSD card slot (SD / SDHC / SDXC) for local
storage
• DC 12V / PoE (IEEE 802.3af)
• Ingress protection (IP67)
• Vandal resistance (IK10)
• 360° and 180° panorama view
• GV-Center V2 connection
• AI analytics (Line Crossing, Region Entrance, Region
Exiting, Region Intrusion, Target Counting, Heat Map,
Crowd Density)
• Defog
• 3D noise reduction
• Motion detection
• Virtual PTZ function
• Auto Pan function
• Text overlay
• Privacy mask
• 19 languages supported
• ONVIF (Profile G, S) conformant




GV-GFER6900 November 5, 2025
- 2 -

Deep Learning Function
AI Perimeter Protection People Flow Counting
(Intrusion, Crossing Line,
Entering Area, Leaving Area)



Specifications
Camera
Image Sensor 1/2.5” progressive scan CMOS
Picture Elements 3200 (H) x 1800 (V)
Minimum
Illumination
Color 0.01 Lux (F2.0, AGC ON)
B/W 0 Lux
IR On 0.1 Lux
Shutter Speed Auto / Manual (1/3 ~ 1/100000 sec)
White Balance Auto / Manual
Gain Control Auto / Manual
S/N Ratio 50 dB
WDR Pro Yes
Dynamic Range 120 dB
Lens
Megapixel 6 MP
Day/Night Yes (with removable IR‐cut filter)
Lens Type Fixed
Focal Length 1.65 mm
Maximum Aperture F/2.0
Mount M12
Image Format 1/2.5”
FOV
Horizontal 180°
Vertical 180°
Diagonal 180°
Operation
Focus Fixed
Zoom Fixed
Iris Fixed
IR LED
Quantity 4 IR LEDs
Max. IR Distance 20 m (66 ft)
DORI Detect Observe Recognize Identify
Lens 1.65 mm 33 m (108.2 ft) 13.1 m (42.9 ft) 6.6 m (21.6 ft) 3.3 m (10.8 ft)
Operation
Video Compression H.265, H.265+, H.264, H.264+, MJPEG
Video Streaming Triple streams from H.265, H.264, or MJPEG
Frame Rate
Max. 30 fps (60 Hz) / 25 fps (50 Hz) at 3200 x 1800, 2160 x 2160, 1920 x
1080, 1440 x 1440, 1280 x 720, 1080 x 1080, 960 x 960, 720 x 720, 640 x
640, 640 x 360, 480 x 480, 360 x 360
Max. 20 fps (50 & 60 Hz) at 2560 x 1440
* The frame rate and the performance may vary depending on the
number of connections and data bitrates (different scenes).
Maximum Throughput 80 Mbps
Maximum Streams 10



GV-GFER6900 November 5, 2025
- 3 -
* When the total bitrate is within the maximum
throughput
* By default, 2 connections are occupied whether connected to GV-Cloud
VMS or not.
Video Analytics Motion Detection
Smart Alarm
Motion Detection, SD Card Error, SD Card Full, IP Address Conflict, Cable
Disconnection
Image Settings
Brightness, Contrast, Hue, Saturation, Sharpness, 3D Noise Reduction,
Defog, BLC, Antiflicker, Smart IR, Image Orientation (Flip, Mirror, 0°,
180°)
Stream Mode
& Supported
Live Preview
1: Fisheye Fisheye View
2: Panoramic View Panoramic View (Ceiling / Desktop: 180° x 2, Wall: 360°)
3: Fisheye + Panoramic View + 3 PTZ
Fisheye View,
Panoramic View (Ceiling / Desktop: 180° x 2, Wall: 360°),
Fisheye View + PTZ x 3,
Panoramic View (Ceiling / Desktop: 180° x 2, Wall: 360°) + PTZ x 3
4: Fisheye + 4 PTZ
Fisheye View,
PTZ x 4
5: Fisheye + 4 PTZ Fusion
Fisheye View,
4 PTZ Fusion
Installation
Method
& Supported
Live Preview
Ceiling Mount
Fisheye View, 180° Panoramic View x 2, Fisheye View + PTZ x 3, 180°
Panoramic View x 2 + PTZ x 3, PTZ x 4, 4 PTZ Fusion
Wall Mount
Fisheye View, 360° Panoramic View, Fisheye View + PTZ x 3, 360°
Panoramic View + PTZ x 3, PTZ x 4, 4 PTZ Fusion
Desktop Mount
Fisheye View, 180° Panoramic View x 2, Fisheye View + PTZ x 3, 180°
Panoramic View x 2 + PTZ x 3, PTZ x 4, 4 PTZ Fusion
Audio Compression G.711
Audio Support Two‐way audio (external speaker required)
Digital I/O
Input 1 input, dry contact, NO / NC
Output 1 relay output (DC 30V, 1A / AC 125V, 0.3A)
Video Resolution
Hardware
(On-Edge)
Dewarping
Main
Stream
(only in
Edge IE
mode)
Fisheye View 2160 x 2160 (default), 1440 x 1440, 1080 x 1080
Panoramic View
(Ceiling / Desktop:
180° x 2, Wall: 360°)
3200 x 1800 (default), 2560 x 1440, 1920 x 1080
PTZ 1280 x 720 (default)
4 PTZ Fusion 2560 x 1440 (default)
Sub
Stream
Fisheye View 960 x 960 (default), 720 x 720, 480 x 480
Panoramic View
(Ceiling / Desktop:
180° x 2, Wall: 360°)
1280 x 720 (default), 640 x 360
PTZ N/A
4 PTZ Fusion 640 x 360 (default)
Third
Stream
Fisheye View 640 x 640 (default), 360 x 360
Panoramic View
(Ceiling / Desktop:
180° x 2, Wall: 360°)
1280 x 720 (default), 640 x 360
PTZ N/A
4 PTZ Fusion 640 x 360 (default)
Network
Interface 10/100 Ethernet
Protocol
802.1x, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, ONVIF
(Profile G, S), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, TCP/IP,
UDP, UPnP



GV-GFER6900 November 5, 2025
- 4 -

Deep Learning Function
AI Analytics
Only the following configurations of Stream Modes and Installation
Methods enable smart detection events.
Configuration 1:
Modes: 1, 3, 4, 5
Mounting: Ceiling
Functions:
➢ Human detection only: Target Counting by Line, Line Crossing, Region
Entrance, Region Exiting, Region Intrusion, Crowd Density, Heat Map
Configuration 2:
Modes: 2, 3
Mounting: Wall or Desktop
Functions:
➢ Human and vehicle detection: Target Counting by Line, Line Crossing,
Region Entrance, Region Exiting, Region Intrusion
➢ Human detection only: Crowd Density
* A maximum of 1 smart detection event is allowed at a time to ensure
comprehensive detection results and optimized performance by the
camera.
* Once connected to GV-Cloud VMS / GV-Center V2, up to 1 smart
detection event is supported.
Mechanical
Connectors
Power DC jack, PoE
Ethernet RJ-45
RS-485 Half-duplex
Audio
Built-in microphone Yes
External microphone required Yes (audio jack, 3.5 mm or 0.14 in)
Built-in speaker No
External speaker required Yes (audio jack, 3.5 mm or 0.14 in)
* Choose either the built-in or external microphone.
* The Audio In port only supports microphones with a power supply.
Video Output CVBS output (BNC connector x 1)
Digital I/O 4-pin terminal block pitch 3.5 mm (0.14 in)
Local Storage microSD card slot (SD / SDHC / SDXC), up to 256 GB
General
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Humidity 0% ~ 95% (no condensation)
Power Source DC 12V / PoE (IEEE 802.3af)
Max. Power Consumption 10 W
Dimension Ø 130.6 x 46.3 mm (Ø 5.14 x 1.82 in)
Weight 516.2 g (1.14 lb)
Ingress Protection IP67
Vandal Resistance IK10
Certification CE, FCC, RoHS compliant
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or GV-IP Device Utility
Access from Web Browser
Live View, Playback, Image Quality, Video Recording (only in Edge IE
mode), Image Snapshot, Two-Way Audio (only in Edge IE mode), Digital
Zoom, Bandwidth Control, Virtual PTZ, Auto Pan, Text Overlay, Image
Masking, Intelligent Mark
Language
Chinese Traditional, Czech, Dutch, English, French, German, Hebrew,
Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese,
Romanian, Russian, Spanish, Spanish (Latin America), Turkish




GV-GFER6900 November 5, 2025
- 5 -

Applications
Software Supported
GV-VMS (V17.4.8 / V18.3.5 or later, patch files required / V20.0.0 or
later), GV-Control Center (V4.2.1 or later, patch files required), GV-Edge
Recording Manager for Windows (V2.3.0 or later), GV-Recording Server
(V2.1.1 or later, patch files required), GV-Center V2 (V18.4.1 or later,
patch files required), GV-Cloud VMS (V1.2.1 or later), GV-IP Device Utility
(V9.0.2 or later)
Smart Device Access GV-Eye for iOS (V3.1.0 or later), GV Eye for Android (V3.1.1 or later)
Live Viewing
Web Browser (Edge, IE mode in Edge, Chrome, Firefox, Safari), Mobile
App
Note:
1. To avoid reflected glare by IR LED, keep a minimum distance of 1 m (3.28 ft) between the camera body and nearby walls.
2. Using a pendant or corner mount with a fisheye camera may cause IR reflection due to the camera's 360° IR illumination.
3. To use GV-Cloud VMS, avoid connecting to other GV-Software at the same time.
4. To use GV-Cloud VMS, a microSD card must be installed. Industrial-grade microSD cards are recommended to avoid event
recording failures.
5. Upon the initial connection of GV-Cloud Camera to GV-Cloud VMS, the Standard Plan will be provided for free for 180 days.
6. GV-Center V2 Standard / Pro can only receive motion events from GV-Cloud IP Cameras. To receive AI and PVD events,
GV-Center V2 AI is required.
7. All specifications are subject to change without notice.

Packing List
1. GV-GFER6900
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Download Guide


Accessories
Model No. Name Details
GV-Mount112 Pendant Mount


Dimensions: Ø 131.1 x 220.7 mm
(Ø 5.16 x 8.69 in)
Weight: 0.55 kg (1.21 lb)
GV-Mount211-11 Wall Mount Bracket


Dimensions: 194.7 x 165.6 x 131.1 mm
(7.67 x 6.52 x 5.16 in)
Weight: 0.57 kg (1.26 lb)

GV-Mount470
(must be used with
Mount211-11)
Pole Mount Bracket


Dimensions: 163.3 x 54.5 x 215 mm
(6.43 x 2.15 x 8.46 in)
Weight: 1.10 kg (2.43 lb)
GV-Mount314
(must be used with
Mount211-11)
Corner Mount Bracket


Dimensions: 215 x 121.4 x 215 mm
(8.46 x 4.78 x 8.46 in)
Weight: 2.05 kg (4.52 lb)



GV-GFER6900 November 5, 2025
- 6 -
GV-Mount512 Junction Box


Dimensions: 131.0 x 156.9 x 33.0 mm
(5.16 x 6.18 x 1.30 in)
Weight: 0.24 kg (0.53 lb)
GV-PA191 PoE Adapter


GV-PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the
IP device through a single Ethernet cable.
GV-PA301 Gigabit PoE Adapter


GV-PA301 is a Gigabit Power over Ethernet
(PoE) adapter.
GV-POE Switch GV-POE Switch is designed to provide power along with network
connection for IP devices. The GV-POE Switch is available in various
models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas
supported.

Mounting Type
Pendant Mount Wall Bracket Mount Junction Box Mount
GV-Mount112 GV-Mount211-11 GV-Mount512





Wall Bracket Mount Pole Bracket Mount
GV-Mount211-11 GV-Mount470






GV-GFER6900 November 5, 2025
- 7 -

Wall Bracket Mount Corner Mount Bracket
GV-Mount211-11 GV-Mount314



Dimensions
