GV-GVD4810

GV-GVD4810 March 5, 2026  - 1 -  GV-GVD4810 AI 4MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Vandal  Proof IP Dome                  • AI deep learning: AI Perimeter Protection & Classification  (Human, Vehicle)  • 1/3" progressive scan CMOS sensor  • Min. illumination at 0.004 lux  • Triple streams from H.265, H.264 or MJPEG  • Up to 30 fps at 2560 x 1440  • Wide Dynamic Range Pro (WDR Pro)  • Intelligent IR  • IR distance up to 50 m (165 ft)  • Day and Night function (with removable IR-cut filter)  • Ingress protection (IP67)  • Vandal resistance (IK10 for metal casing)  • 3-axis mechanism (pan / tilt / rotate)  • Built-in microphone  • Built-in microSD card slot (SD / SDHC / SDXC) for local  storage  • DC 12V / PoE (IEEE 802.3af)  • AI analytics (Line Crossing, Region Intrusion)  • 3D noise reduction  • Motion detection  • Text overlay  • Privacy mask  • 20 languages supported  • ONVIF (Profile G, S, T, M) conformant    Introduction  GV-GVD4810 is a 4 MP vandal proof IP dome camera, equipped with an automatic IR-cut filter and IR LEDs for day and night  surveillance. The camera supports H.265 video codec to achieve a better ...

Garantie: 24 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

GV-GVD4810 March 5, 2026
- 1 -

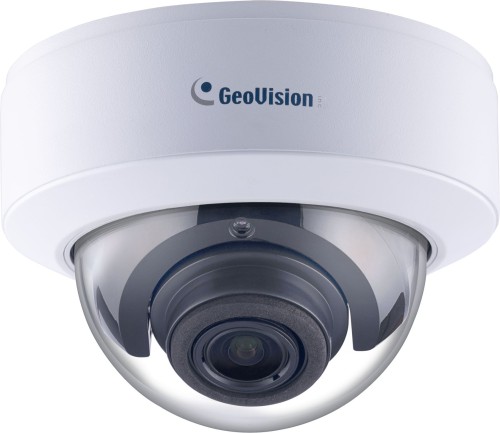

GV-GVD4810 AI 4MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Vandal
Proof IP Dome








• AI deep learning: AI Perimeter Protection & Classification
(Human, Vehicle)
• 1/3" progressive scan CMOS sensor
• Min. illumination at 0.004 lux
• Triple streams from H.265, H.264 or MJPEG
• Up to 30 fps at 2560 x 1440
• Wide Dynamic Range Pro (WDR Pro)
• Intelligent IR
• IR distance up to 50 m (165 ft)
• Day and Night function (with removable IR-cut filter)
• Ingress protection (IP67)
• Vandal resistance (IK10 for metal casing)
• 3-axis mechanism (pan / tilt / rotate)
• Built-in microphone
• Built-in microSD card slot (SD / SDHC / SDXC) for local
storage
• DC 12V / PoE (IEEE 802.3af)
• AI analytics (Line Crossing, Region Intrusion)
• 3D noise reduction
• Motion detection
• Text overlay
• Privacy mask
• 20 languages supported
• ONVIF (Profile G, S, T, M) conformant

Introduction
GV-GVD4810 is a 4 MP vandal proof IP dome camera, equipped with an automatic IR-cut filter and IR LEDs for day and night
surveillance. The camera supports H.265 video codec to achieve a better compression ratio while maintaining high-quality pictures
at reduced network bandwidth. GV-GVD4810 adheres to IP67 and IK10 standards and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes humans and vehicles from other moving objects. Integrated
with GeoVision Video Management Software (GV-VMS), it supports AI perimeter protection, real-time alert, playback, and more.


Deep Learning Function
AI Perimeter Protection
(Line Crossing, Region Intrusion)






GV-GVD4810 March 5, 2026
- 2 -
Specifications
Camera
Image Sensor 1/3" progressive scan CMOS
Picture Elements 2560 (H) x 1440 (V)
Minimum
Illumination
Color 0.004 Lux (F1.4, AGC ON)
IR On 0 Lux
Shutter Speed Auto / Manual (1 ~ 1/100000 sec)
White Balance Auto / Manual
Gain Control Auto / Manual
S/N Ratio 50 dB
WDR Pro Yes
Dynamic Range 120 dB
Lens
Megapixel 4 MP
Day / Night Yes (with removable IR-cut filter)
Lens Type Motorized
Focal Length 2.8-12 mm
Maximum Aperture F/1.4
Mount Ø14
Image Format 1/3”
FOV
Horizontal 92°-31°
Vertical 48°-17.2°
Diagonal 112°-35.6°
Operation
Focus Auto / Manual
Zoom 4.3x
Iris Fixed
IR LED
Quantity 2 IR LEDs
Max. IR Distance 50 m (165 ft)
DORI Detect Observe Recognize Identify
Lens
2.8-12 mm (W) 64 m (210.0 ft) 26 m (85.3 ft) 13 m (42.7 ft) 6 m (19.7 ft)
2.8-12 mm (T) 189 m (620.1 ft) 75 m (246.1 ft) 38 m (124.7 ft) 19 m (62.3 ft)
Operation
Video Compression H.265, H.265+, H.264, H.264+, MJPEG
Video Streaming Triple streams
Video Resolution
Main Stream 2560 x 1440 (default), 2304 x 1296, 1920 x 1080, 1280 x 720
Sub Stream 1280 x 720 (default), 704 x 480, 704 x 576, 640 x 480, 352 x 240, 352 x 288
Third Stream 704 x 480 (default), 704 x 576, 480 x 240, 352 x 240, 352 x 288
Frame Rate
Max. 30 fps (60 Hz) at 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 704 x 480,
640 x 480, 480 x 240, 352 x 240
Max. 25 fps (50 Hz) at 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 704 x 576,
640 x 480, 480 x 240, 352 x 288
* The frame rate and performance may vary depending on the number of connections
and data bitrates (different scenes).
Maximum Throughput 36 Mbps
Maximum Streams
* When the total bitrate is within the
maximum throughput
6
Video Analytics Motion Detection, Object Abandoned / Missing Detection, Video Exception
Smart Alarm
Motion Detection, SD Card Error, SD Card Full, IP Address Conflict, Cable Disconnection,
Scene Change Detection, Video Blur Detection, Abnormal Color Detection
Image Setting
Brightness, Contrast, Hue, Saturation, Sharpness, 3D Noise Reduction, BLC, Antiflicker,
White Balance, Shutter, Gain, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270° –
including Corridor format)
Audio Compression G.711
Audio Support One-way audio
Deep Learning Function
AI Analytics
Line Crossing, Region Intrusion (Human & Vehicle classification)
* The two functions can only be enabled one at a time.


GV-GVD4810 March 5, 2026
- 3 -
Network
Interface 10/100 Ethernet
Protocol
802.1x, DDNS, DHCP, FTP, HTTP POST, HTTP, HTTPS, IPv4, IPv6, NTP, ONVIF (Profile G, S,
T, M), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP
Mechanical
Camera Angle
Adjustment
Pan 0 ~ 345°
Tilt 0 ~ 77°
Rotate 0 ~ 345°
Connectors
Power DC jack
Ethernet RJ-45 connector
Audio
Built-in microphone Yes
External microphone required Yes (audio jack, 3.5 mm or 0.14 in)
Built-in speaker No
External speaker required No
* Choose either the built-in or external microphone.
* The Audio In port only supports microphones with a power supply.
Local Storage microSD card slot (SD / SDHC / SDXC), up to 256 GB
General
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Humidity 0 ~ 95% (no condensation)
Power Source DC 12V, 1.5A / PoE (IEEE 802.3af)
Max. Power Consumption 7.5 W
Dimensions Ø 141 x 100.2 mm (Ø 5.6 x 3.9 in)
Weight 0.93 kg (2.05 lb)
Ingress Protection IP67
Vandal Resistance IK10 for metal casing
Certification CE, FCC, LVD, RoHS compliant
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Live View, Playback, Video Recording, Image Quality, Bandwidth Control,
Image Snapshot, Digital Zoom, Text Overlay, Image Masking, Intelligent Mark
Language
Chinese Traditional, Czech, Dutch, English, French, German, Greek, Hungarian, Italian,
Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Spanish
(Latin America), Turkish, Ukrainian
Software Applications
Software Supported
GV-VMS (V17.4.8 / V18.3.5 / V20.0.2 or later, patch files required), GV-Control Center
(V4.3.0 or later), GV-Edge Recording Manager (V2.3.1 or later), GV-Recording Server
(V2.1.1 or later, patch files required), GV-IP Device Utility (V9.0.5 or later)
Smart Device Access GV-Eye for iOS and Android (V3.5.1 or later)
Live Viewing Web Browser (Chrome, Edge, Firefox, Safari), Mobile App
Note:
1. To avoid affecting IR LED performance, follow the cleaning guidelines below.
⚫ Do not touch or wipe the dome cover surface directly during installation or use, as acidic sweat may corrode the coating
and degrade image quality.
⚫ Remove dust with an oil-free soft brush or a hair dryer. For smudges, gently wipe from the center outward with an oil-free
cotton cloth or detergent-soaked paper. Always use a dry, soft cloth when wiping, and replace the cloth and repeat if
needed.
⚫ Avoid using hard materials or alkaline cleaners, as they may damage the surface.
2. All specifications are subject to change without notice.


Packing List
1. GV-GVD4810 Vandal Proof Dome
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Download Guide


GV-GVD4810 March 5, 2026
- 4 -
Accessories

Model No. Name Details
GV-Mount211-6
(must be used with
GV-Mount510)
Wall Mount Bracket


Dimensions: 199 x 139.3 x 140.6 mm
(7.83 x 5.48 x 5.54 in)
Weight: 0.56 kg (1.23 lb)
GV-Mount211-13 Wall Mount Bracket


Dimensions: 266 x 174.1 x 142.5 mm
(10.47 x 6.85 x 5.61 in)
Weight: 1.14 kg (2.51 lb)
GV-Mount314
(must be used with
GV-Mount211-6 + GV-Mount510,
or GV-Mount211-13)
Corner Mount Bracket


Dimensions: 215 x 121.4 x 215 mm
(8.46 x 4.78 x 8.46 in)
Weight: 2.05 kg (4.52 lb)
GV-Mount470
(must be used with
GV-Mount211-6 + GV-Mount510,
or GV-Mount211-13)
Pole Mount Bracket


Dimensions: 163.3 x 54.5 x 215 mm
(6.43 x 2.15 x 8.46 in)
Weight: 1.10 kg (2.43 lb)
GV-Mount510 Junction Box


Dimensions: 139.3 x 171.6 x 42 mm
(5.48 x 6.76 x 1.65 in)
Weight: 0.36 kg (0.79 lb)
GV-Mount925 In-Ceiling Mounting
Bracket


Dimensions: Ø 233 x 80.5 mm
(Ø 9.17 x 3.17 in)
Weight: 0.704 kg (1.55 lb)
GV-Mount927
(for standard US single and double
gang boxes only)
Power Box Mount
Bracket


Dimensions: Ø 145 x 11.2 mm
(Ø 5.71 x 0.44 in)
Weight: 0.2 kg (0.44 lb)
GV-PA191 PoE Adapter


GV-PA191 is a Power over Ethernet
(PoE) adapter designed to provide
power to the IP device through a single
Ethernet cable.
GV-PA301 Gigabit PoE Adapter


GV-PA301 is a Gigabit Power over
Ethernet (PoE) adapter.


GV-GVD4810 March 5, 2026
- 5 -
GV-POE Switch GV-POE Switch is designed to provide power along with network
connection for IP devices. The GV-POE Switch is available in
various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas
supported.


Dimensions



Mounting Type
Junction Box Mount Junction Box Mount Wall Bracket Mount
GV-Mount510 GV-Mount510 GV-Mount211-6




In-Ceiling Mount Junction Box Mount Wall Bracket Mount Pole Bracket Mount
GV-Mount925 GV-Mount510 GV-Mount211-6 GV-Mount470







GV-GVD4810 March 5, 2026
- 6 -

Wall Bracket Mount Wall Bracket Mount Pole Bracket Mount
GV-Mount211-13 GV-Mount211-13 GV-Mount470



Junction Box Mount Wall Bracket Mount Corner Bracket Mount
GV-Mount510 GV-Mount211-6 GV-Mount314



Wall Bracket Mount Corner Bracket Mount
GV-Mount211-13 GV-Mount314
