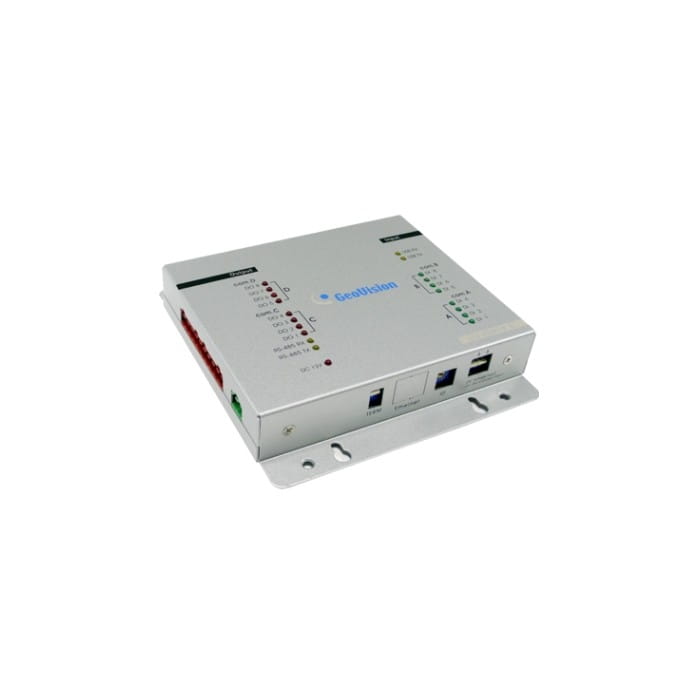

GV-IO BOX 8E

Verfügbarkeit: 11-50
Preis: 205,42 € 205.42
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: GEOVISION
Produkt-Code/SKU: 84-IOBOX08-1E4D

Beschreibung

* 8 inputs and 8 outputs are provided.  * Up to 9 pieces of GV ‐ I/O Box 4/8/16 Ports can be chained  together.  * A USB port is provided for PC connection, and it is only used  for 30 DC output voltage.  * Up to 16 connections from GeoVision software are allo wed to  control one GV ‐ I/O Box.  * Optional support for an Ethernet module.  The GV ‐ IO Box 8 provides 8 inputs and 8 relay outputs. It supports both DC and AC output voltages, and provides a USB port for PC connection.    Specifications...

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

* 8 inputs and 8 outputs are provided.
* Up to 9 pieces of GV ‐ I/O Box 4/8/16 Ports can be chained
together.
* A USB port is provided for PC connection, and it is only used
for 30 DC output voltage.
* Up to 16 connections from GeoVision software are allo wed to
control one GV ‐ I/O Box.
* Optional support for an Ethernet module.
The GV ‐ IO Box 8 provides 8 inputs and 8 relay outputs. It supports both DC and AC output voltages, and provides a USB port for PC connection.

Specifications
32‐ bit Windows 7 / 8 / 8.1 / 10 / Server 2008
OS Supported
64‐ bit Windows 7 / 8 / 8.1 / 10 / Server 2008 R2 / Server 2012 R2
Compatible S/W GV ‐DVR / NVR / VMS, GV ‐ASManager, GV ‐Control Center
Input 8
Dry Contact Input
Input Signal
Wet Contact, 9‐ 30V AC / DC
Relay Output 8
Relay Status Normal open
USB Connection 30V DC, 3A
Communication
Relay
Capacitance
RS ‐ 485 Connection
125 / 250V AC, 3A
30V DC, 3A
Ethernet RJ ‐ 45, 10/100 Mbps (Optional)
DC IN DC 12V, 1A
Address 0‐ 9, A ‐ F
Terminal Resistance 120 ohm
Environmental Conditions
0 ~ 50 °C / 32 ~ 122 °F
5% ~ 95% (non ‐condensing)
Dimensions (W x H x D) 135 x 28 x 145 (mm) / 5.31x 1.10 x 5.70 (in)
Note:
1. GV ‐ I/O Box 8 Ports can only be connected using CAT ‐ 5e cables, TIA / EIA ‐ 568‐ B, with a maximum DC resistance of 9.38 ohms / 100 m.
2. All specifications are subject to change without notice.

Packing List:
1. GV ‐ I/O Box 8 Ports
2. Power Adapter DC 12V
3. USB Cable (Type A to B)
4. Download Guide
Note: The GV ‐ I/O box 8 Ports comes with the option of an Ethernet module.

March 2, 2018
‐ 1 ‐
