GV-IP Decoder Box Optimal January 25, 2024
- 1 -
GV-IP Decoder Box Optimal





Introduction
GV-IP Decoder Box Optimal is designed to decode and display up to 64 IP videos in a single, 4-division, 6-division, 8-division, and
9-division view. It supports third-party IP cameras that adhere to RTSP or ONVIF, and can automatically search for any
ONVIF-compliant on the same LAN. With HDMI and VGA output ports, dual monitor display is made accessible, allowing the live
view of cameras to loop on the extended screen for a more effective surveillance environment. The security administrator can
monitor channels, take snapshots of critical moments, and pause a channel when events occur. GV-Joystick V2 can be installed to
control any PTZ / Speed Dome cameras connected onto the GV-IP Decoder Box Optimal.

GV-IP Decoder Box Optimal
+
Display Monitor
HDMI /
VGA
GV-IP Camera
ONVIF IP Camera
GV-Video Server
for analog cameras
GV-NVR / VMS &
GV-Mobile Server
GV-Video Gateway /
Recording Server
through GV-Mobile
Server

Video Source
Note: GV-VMS can connect directly to GV-IP Decoder Box Optimal without using GV-Mobile Server.





GV-IP Decoder Box Optimal January 25, 2024
- 2 -
Features
• Decode video streams in H.264 / H.265 codec up to 30 fps
• Decode up to 8-megapixel IP cameras
• Decode up to 64 IP streams
• Auto-search for ONVIF IP devices
• Support for third-party IP cameras that adhere to RTSP or ONVIF
• Single, 4-divsion, 6-division, 8-division, and 9-division view
• Display of Matrix view through GV-Mobile Server
• Support for 10/100 Ethernet over LAN
• DC 12V / PoE (IEEE 802.3af)
• Dual monitor display for HDMI and VGA outputs
• User interface controls using GV-IR Remote Control
• PTZ and Speed Dome camera control using GV-Joystick V2
• Remote firmware upgrade, IP address configuration, and addition of new channel
• Micro SD card and USB drive for snapshot storage and firmware upgrade
• Support for camera and layout assignment remotely from GV-VMS or GV-Control Center
• Support for 10 languages



Specifications
Video
Video Codec H.264, H.265
Audio Codec G.711
Maximum
Resolution
1-ch Division 3840 x 2160
4-ch Division (Quad View) Grid 1: 2560 x 1920; Other 3 grids: 1920 x 1080
6-ch Division 1280 x 720
8-ch Division 1280 x 720
9-ch Division 1280 x 720
Video Output
HDMI 3840 x 2160 / 1920 x 1080
VGA 1920 x 1080
Network
Interface 10/100 Ethernet
Protocol ONVIF, RTSP, TCP
Mechanical
Connectors
Power Adapter 12V DC Jack
Ethernet RJ-45
Monitor Output HDMI / VGA
Memory Card Micro SD/SDHC card slot (for Class 4 or above, FAT32 and NTFS formats)
USB 2.0 USB slot x 2 (2.0 backward compatible, FAT32 format)
General
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Operating Humidity 20% ~ 80% (with no condensation)
Weather Resistance Indoor use only
Dimensions (W x H x D) 162.3 x 112.6 x 36.5 mm (6.4” x 4.4” x 1.4”)
Net Weight 558 g (1.23 lb)
Power DC 12V / PoE (IEEE 802.3af)


GV-IP Decoder Box Optimal January 25, 2024
- 3 -
Power Consumption 36 W (max. 3 A at 12V DC)
Certification CE, FCC, RCM, LVD, UKCA compliant
Language
English / French / German / Italian / Japanese / Polish / Portuguese / Russian /
Spanish / Traditional Chinese
Applications
Software Supported
GV-VMS (V17.4.5B / V18.3.1 or later), GV-Edge Recording Manager (Windows
Version, V2.2.8, coming soon), GV-Control Center (V4.2.1, coming soon)
Note:
1. To ensure a smooth operation, the bitrate of each channel should be below 6 Mbps.
2. Support for camera and layout assignment remotely from GV-VMS or GV-Control Center is only available for GV-VMS
V17.4.5B / 18.3.1, GV-Control Center V4.2.1 or later versions.
3. Specifications are subject to change without notice.


Compatible Devices
1. GV-IP Camera and GV-Video Server
2. Third-party IP devices supporting H.264 / H.265 and adhering to RTSP or ONVIF
3. GV-Mobile Server
4. GV-VMS

To decode and display non-H.264 / H.265 IP channels or GV-FER12203 / 12700, connect the devices to GV-NVR / VMS and access
them through GV-Mobile Server.


Dimensions








GV-IP Decoder Box Optimal January 25, 2024
- 4 -

Overview

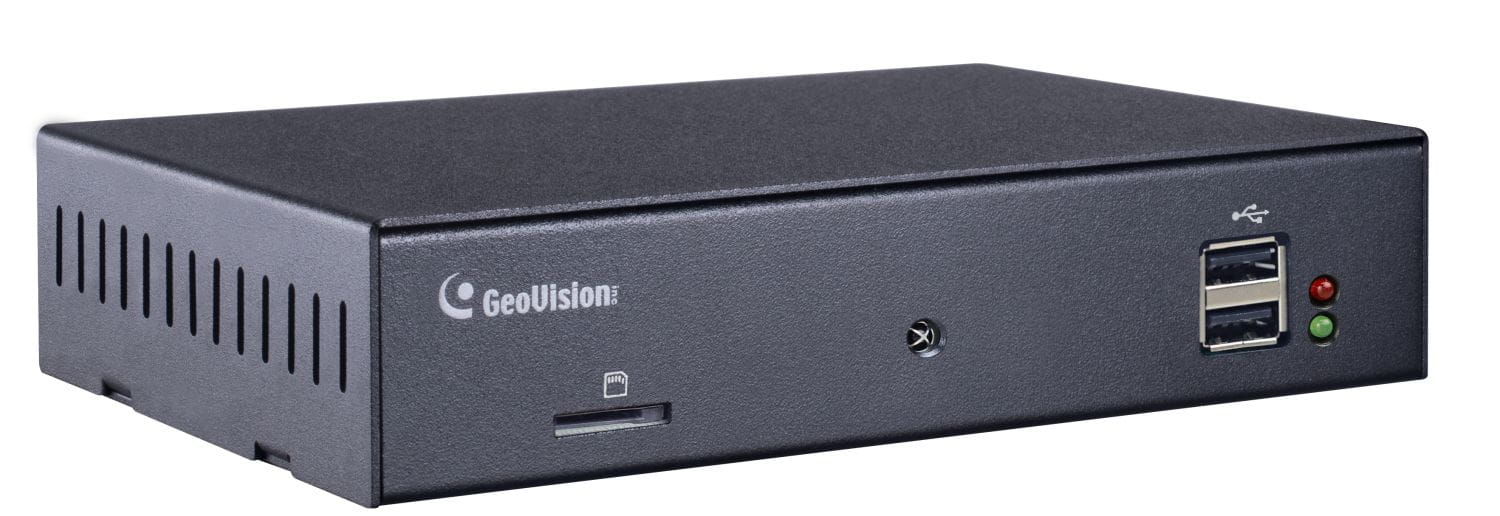

Front View



Rear View



Accessories
Name Details
GV-Joystick V2 GV-Joystick V2 facilitates focusing, zooming, panning, tilting of
GeoVision and third-party PT, PTZ and Speed Dome cameras
connected on GV-IP Decoder Box Optimal.
GV-POE Switch GV-POE Switch is designed to provide power along with network
connection for IP devices. The GV-POE Switch is available in
various models with different numbers and types of ports.
HDMI Cable Use the HDMI cable to connect GV-IP Decoder Box Optimal with
a HDMI monitor for high-quality display of images.
Length: 150 cm (4.92 ft)
Version: 1.4a
Power Adapter

Contact our sales representatives for the countries and areas
supported.
Wall Mount Kit Use the Wall Mount Kit to install your GV-IP Decoder Box
Optimal on wall.

Packing List
• GV-IP Decoder Box Optimal
• GV-IR Remote Control
• Download Guide
• Warranty Card
