GV-IP Decoder Box Ultra

Verfügbarkeit: 0
Preis: 428,81 € 428.81
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: GEOVISION
Produkt-Code/SKU: 89-IPDBXUL-A010

Beschreibung

GV-IP Decoder Box Ultra March 11, 2021  - 1 -  GV-IP Decoder Box Ultra              Introduction  GV ‐ IP Decoder Box Ultra is designed to decode and display up to 64 IP videos in Single, 4 ‐Division, 6 ‐Division, 8 ‐Division, and  9 ‐Division View. It supports third ‐ party IP cameras that adhere to RTSP or ONVIF, and can automatically search for any  ONVIF ‐compliant under the same LAN. To be used with a single monitor, the GV ‐ IP Decoder Box Ultra provides a cos...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: GV-IP Decoder Box Optimal

Ersatzproduktcode: 89-IPDBXOP-A010

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

GV-IP Decoder Box Ultra March 11, 2021
- 1 -
GV-IP Decoder Box Ultra






Introduction
GV ‐ IP Decoder Box Ultra is designed to decode and display up to 64 IP videos in Single, 4 ‐Division, 6 ‐Division, 8 ‐Division, and
9 ‐Division View. It supports third ‐ party IP cameras that adhere to RTSP or ONVIF, and can automatically search for any
ONVIF ‐compliant under the same LAN. To be used with a single monitor, the GV ‐ IP Decoder Box Ultra provides a cost ‐effective
solution for video surveillance as opposed to the traditional DVR and PC setup. The security administrator can monitor channels,
take snapshots of critical moments, and pause a channel when events occur. GV ‐Joystick V2 can be installed to control any PTZ /
Speed Dome cameras connected onto the GV ‐ IP Decoder Box Ultra.




GV-IP Decoder Box Ultra March 11, 2021
- 2 -
Features
* Decode video streams in H.264 / H.265 codec up to 30 fps
* Decode up to 8 ‐megapixel IP cameras
* Decode up to 64 IP streams
* Automatically search for ONVIF IP devices
* Support for third ‐ party IP cameras that adhere to RTSP or ONVIF
* Support for Sin gle, 4 ‐Divsion, 6 ‐Division, 8 ‐Division, and 9 ‐Division View
* Display of Matrix view through GV ‐Mobile Server
* Support for 10/100 Ethernet over LAN
* DC 12V / PoE (IEEE 802.3af)
* HDMI video output resolutions up to 4K
* Control the user interface using GV ‐ IR Remote Co ntrol
* Control PTZ and Speed Dome cameras using GV ‐Joystick V2
* Remote firmware upgrade, IP address configuration, and addition of new channel
* Micro SD card and USB drive for snapshot storage and firmware upgrade
* No SD/SDHC card slot & local storage function for Argentina.

Compatible Devices
GV ‐ IP Decoder Box Ultra is compatible with:
1. GV ‐ IP Camera and GV ‐Video Server using H.264 / H.265 codec
2. Third ‐ party IP devices supporting H.264 / H.265 and adhering to RTSP or ONVIF
3. GV ‐Mobile Server

To decode and display non ‐H.264 / H.265 IP channels, analog c hannels or GV ‐FER12203 / 12700 , connect the devices to GV ‐DVR /
NVR and access them through GV ‐Mobile Server.

Specifications
Video
Video Codec H.264, H.265

Audio Codec G.711

1 ‐ ch Division 3840 x 2160

4 ‐ ch Division (Quad View) Grid 1: 2560 x 1920; Other 3 grids: 1920 x 1080

6 ‐ ch Division 1280 x 720

8 ‐ ch Division 1280 x 720

Maximum
Resolution
9 ‐ ch Division 1280 x 720

Video Output
at 60 Hz
HDMI 720p / 1080p / 4K

Network

Interface 10/100 Ethernet

Protocol ONVIF, RTSP, TCP

Mechanical

Power Adapter 12V DC Jack

Ethernet RJ ‐ 45

Monitor Output HDMI

Memory Card Micro SD/SDHC card slot (for Class 4 or above, FAT32 and NTFS formats)

USB 3.0 USB slot (3.0 backward compatible, FAT32 and NTFS formats)

Connectors
USB 2.0 USB slot x 2 (2.0 backward compatible, FAT32 format)

General

Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)

Operating Humidity 20% ~ 80% (with no condensation)

Weather Resistance Indoor use only

Dimensions (W x H x D) 152 x 34 x 102 mm (6” x 1.35” x 4.04”)

Net Weight 500 g (1.10 lb)


GV-IP Decoder Box Ultra March 11, 2021
- 3 -
Power DC 12V / PoE (IEEE 802.3af)
Power Consumption 36 W (max. 3 A at 12V DC)

Regulatory CE, FCC, LVD, RCM compliant

Language
English, French, German, Italian, Japanese, Polish, Portuguese, Russian, Spanish,
Traditional Chinese

Note: Specifications are subject to change without notice.


Dimensions








GV-IP Decoder Box Ultra March 11, 2021
- 4 -

Overview

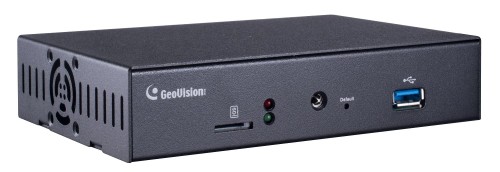

Front View



Rear View



Accessories
Name Details
GV ‐Joystick V2
GV ‐Joystick V2 facilitates focusing, zooming, panning, tilting of
GeoVision and third ‐ party PT, PTZ and Speed Dome cameras
connected on GV ‐ IP Decoder Box Ultra.
GV ‐POE Switch
GV ‐POE Switch is designed to provide power along with network
connection for IP devices. The GV ‐ POE Switch is available in
various models with different numbers and types of ports.
HDMI Cable
Use the HDMI cable to connect GV ‐ IP Decoder Box Ultra with a
HDMI monitor for high ‐quality display of images.
Length: 150 cm (4.92 ft)
Version: 1.4a
Power Adapter

Contact our sales representatives for the countries and areas
supported.
Wall Mount Kit
Use the Wall Mount Kit to install your GV ‐ IP Decoder Box Ultra
on wall.

Packing List
* GV ‐ IP Decoder Box Ultra
* GV ‐ IR Remote Control
* Download Guide
* Warranty Card
