GV-Joystick V3

GV-Joystick V3 September 24, 2025  GV-Joystick V3        GV-Joystick V3 is a plug-and-play device for panning, tilting, zooming, and focusing a PTZ camera. It is compatible not only with  GeoVision software, but also with any third-party software that supports the HID standard.    Specifications  OS Supported Windows 11 / 10 / 7 / Server 2016 / Server 2019  Joystick  3-Axis Hall Joystick  - X/Y Axis: Camera Pan/Tilt  - Z Axis: Camera Zoom  - Lifespan: Over 5 million operations  Deflection  Square Limiter  - XY Axis Angle: ±20°  - Z Axis Angle: ±30°  Buttons  - 8 programmable mechanical buttons  (2)  - Rated for over 5 million operations  Interface USB 2.0, driver-free  Power USB powered  Operating Temperature -25 ~ 60°C / 77 ~ 140°F  Humidity 5% ~ 95% (non-condensing)  Dimensions (W x H x D) 120 x 157 x 94 mm (4.7 x 6.2 x 3.7")  Weight 600 kg (1.32 lb)  Certification CE, FCC  Note:  1. When connected to GeoVision software, GV-Joystick V3 can control third-party ONVIF PTZ cameras.  2. Buttons 7 and 8 only work when using one of the following software versions: GV-Edge Recording Manager V2.3.1 or later and  GV-Control Center V4.3.0 or later. ...

Garantie: 24 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

GV-Joystick V3 September 24, 2025
GV-Joystick V3

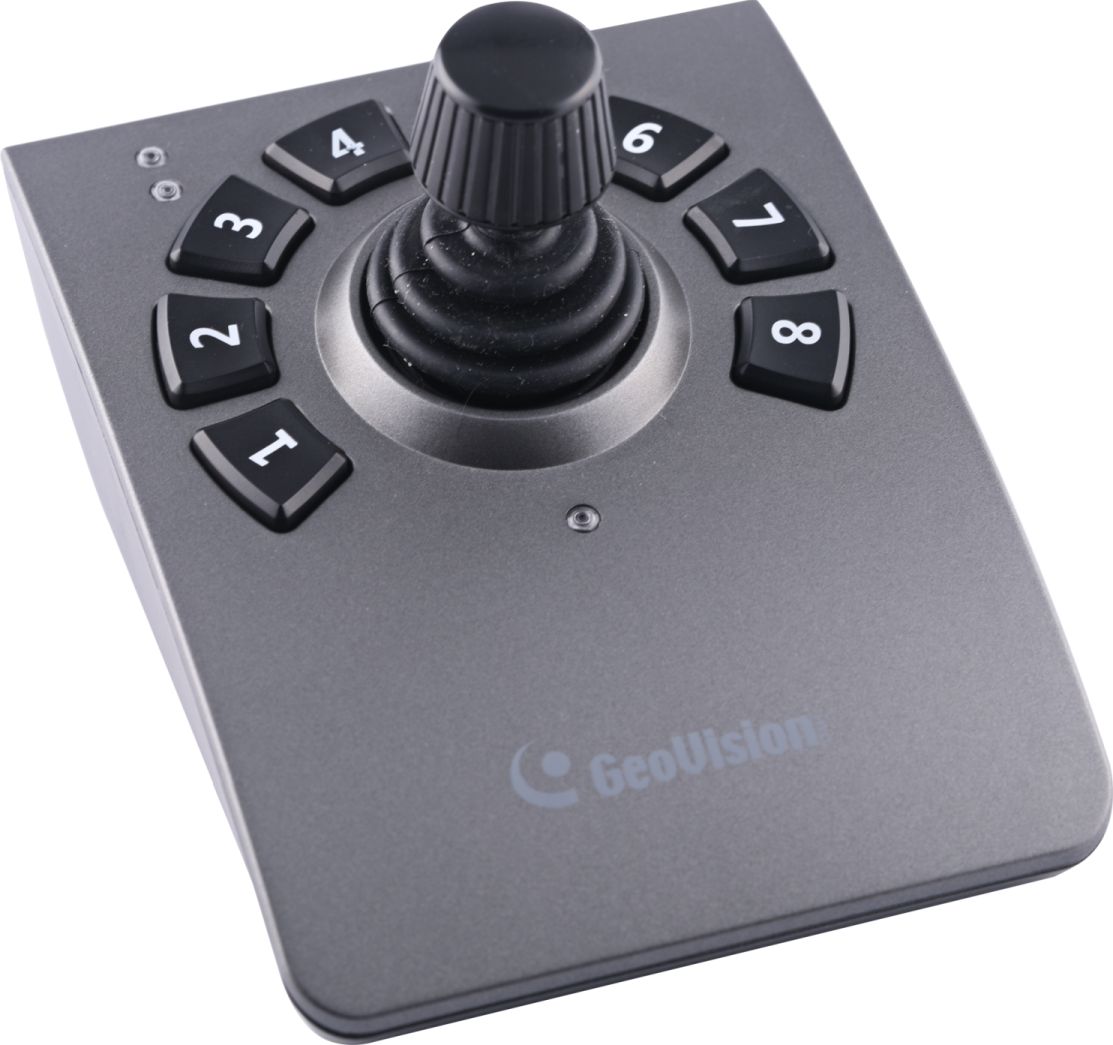

GV-Joystick V3 is a plug-and-play device for panning, tilting, zooming, and focusing a PTZ camera. It is compatible not only with
GeoVision software, but also with any third-party software that supports the HID standard.

Specifications
OS Supported Windows 11 / 10 / 7 / Server 2016 / Server 2019
Joystick
3-Axis Hall Joystick
- X/Y Axis: Camera Pan/Tilt
- Z Axis: Camera Zoom
- Lifespan: Over 5 million operations
Deflection
Square Limiter
- XY Axis Angle: ±20°
- Z Axis Angle: ±30°
Buttons
- 8 programmable mechanical buttons
(2)
- Rated for over 5 million operations
Interface USB 2.0, driver-free
Power USB powered
Operating Temperature -25 ~ 60°C / 77 ~ 140°F
Humidity 5% ~ 95% (non-condensing)
Dimensions (W x H x D) 120 x 157 x 94 mm (4.7 x 6.2 x 3.7")
Weight 600 kg (1.32 lb)
Certification CE, FCC
Note:
1. When connected to GeoVision software, GV-Joystick V3 can control third-party ONVIF PTZ cameras.
2. Buttons 7 and 8 only work when using one of the following software versions: GV-Edge Recording Manager V2.3.1 or later and
GV-Control Center V4.3.0 or later.
3. All specifications are subject to change without notice.



GV-Joystick V3 September 24, 2025
Compatible Products
• GV-VMS: Supported version coming soon
• GV-Control Center: V4.2.1 or later
• GV-Center V2: Supported version coming soon
• GV-Edge Recording Manager (Windows version): V2.3.0 or later
• GV-SNVR:
。 GV-SNVR0412: Firmware V1.24 or later
。 GV-SNVR0812: Firmware V1.27 or later


Packing List
• GV-Joystick V3

Dimensions
