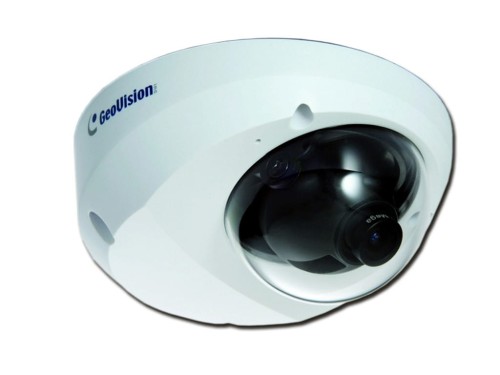

GV-MFD2501 2MP H.264 Super Low Lux WDR Mini Fixed Dome




* 1/2.8’’ progressive scan super low lux CMOS
* Megapixel lens
* Min. illumination at 0.02 lux
* Dual streams from H.264 and MJPEG
* Up to 30 fps at 1920 x 1080
* Wide Dynamic Range (WDR)
* Two ‐way audio
* USB slot for GV ‐ Wi Fi Adaptor or USB hard drive
* Built ‐ in micro SD card slot (SD/SDHC) for local storage
* DC 5V / PoE (IEEE 802.3af)
* Recording assigned by GV ‐Edge Recording Manager
(Windows , Mac ver sion)
* Day and night function (electronic)
* Tampering alarm
* 3D noise reduction
* Defog
* Motion detection
* Privacy mask
* IP address filtering
* iPhone, iPad, Android
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* More Storage Option ‐ NAS
* No Memory card slot & local storage function for Argentina.

Introduction
The GV ‐MFD2501 Series are indoor, fixed, mini ‐sized network cameras with different lens options. With super low lux CMOS image
sensors, the cameras can produce color image in low ‐light conditions. The cameras are each equipped with an USB port which
supports wireless connection through GV ‐ WiFi Adaptor (optional) or an external storage using an USB hard drive.

Active Tampering Alarm
Tampered Focus Change Camera Shift



Models
Models Iris Focal Length (mm)
Maximum Aperture Image Format
MFD2501‐ 0F 2.8 mm F/2.0

MFD2501‐ 1F 4 mm F/1.5

MFD2501‐ 2F 8 mm F/1.6

MFD2501‐ 3F 12 mm F/1.6

MFD2501‐ 5F 3.8 mm F/1.8

MFD2501‐ 6F
Fixed
2.3 mm F/2.2
1/3”

GV-MFD2501 Series January 4, 2018
- 1 -

Dimensions



Specifications
Camera
GV ‐MFD2501
‐ 0F
GV ‐MFD2501
‐ 1F
GV ‐MFD2501
‐ 2F
GV ‐MFD2501
‐ 3F
GV ‐MFD2501
‐ 5F
GV ‐MFD2501
‐ 6F
Image Sensor 1/2.8" progressive scan super low lux CMOS
Picture Elements 1920 (H) x 1080 (V)

Minimum
Illumination
Color
B/W
0.02 Lux

Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec.)

White Balance Automatic, Manual (2800K ~ 8500K)

Gain Control Automatic

S/N Ratio 52 dB

WDR Yes

Lens

Megapixel Yes

Day/Night Yes (Electronic)

Iris Fixed

Focal Length 2.8 mm 4 mm 8 mm 12 mm 3.8 mm 2.3 mm
Maximum Aperture F/2.0 F/1.5 F/1.6 F/1.6 F/1.8 F/2.2
Mount M12, Pitch 0.5 mm
Image Format 1/3"

Horizontal FOV 99° 72° 38° 25° 72° 122°
Focus Fixed
Zoom Fixed

Operation
Iris Fixed

Operation

Video Compression H.264, MJPEG

Video Streaming Dual streams from H.264 and MJPEG

Frame Rate
30 fps at 1920 x 1080 (60/50 Hz)
* The frame rate and the performance may vary depending on the number of connections
and data bitrates (different scenes).

Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less 50/60 Hz,
Image Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity, WDR, Defog,
Super Low Lux, Noise Reduction, Metering

Audio Compression G.711, AAC (optional)

Audio Support Two ‐ Way Audio

Sensor Input N/A

Alarm Output N/A

Video Resolution

4:3 1280 x 960, 640 x 480, 320 x 240

16:9 1920 x 1080 (Default), 1280 x 720, 640 x 360, 448 x 252

Main Stream
5:4 1280 x 1024, 640 x 512, 320 x 256

4:3 640 x 480, 320 x 240

16:9 640 x 360, 448 x 252 (Default)

Sub Stream
5:4 640 x 512, 320 x 256

GV-MFD2501 Series January 4, 2018
- 2 -


Network
Interface 10/100 Ethernet

Ethernet Protocol
DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), QoS (DSCP), RTSP, SNMP, SMTP,
TCP, UDP, UPnP, 3GPP/ISMA

Mechanical

Temperature Detector Yes

Pan ‐ 45° ~ 45°
Camera Angle
Adjustment
Tilt 0° ~ 90°

Power 2 ‐pin terminal block, PoE

Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45

Audio
1 In (built ‐ in microphone),
1 Out (RCA female for speaker)

USB GV ‐ WiFi Adapter or USB hard drive

Connectors
Local Storage
Micro SD card slot (SD/SDHC, SD version 2.0 only, Class 10)
* SDXC and UHS ‐ I card types are not supported.

LED Indicator 4 LEDs: Link, ACT, Power, Status

General

Camera Housing black, white
Environment Temperature 0 °C ~ 50 °C (32 °F ~ 122 °F)
Humidity 10% to 90% (no condensation)

Power Source 5V DC/PoE (IEEE 802.3af)

Max. Power Consumption 6 W

Dimension ø 106 x 53.9 mm (4.2’’ x 2.1”)

Weight 280 g (0.62 lb)

Regulatory CE, FCC, RCM, RoHS compliant

Power over Ethernet

PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)

PoE Power Supply Type End ‐Span

PoE Power Output Per Port 48V DC, 350mA. Max. 15.4 watts

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital
PTZ

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek /
Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian /
Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian /
Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

Network Storage GV ‐DVR/NVR, GV ‐Backup Center, GV ‐Recording Server, GV ‐ VMS

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing IE, Mobile App

CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor

Note:
1. Mind the following limitations and requirements for the USB port:
* The USB hard drive must be of 2.5’’ or 3.5’’, version 2.0 or above.
* The USB hard drive’s storage capacity must not exceed 2TB.
* USB flash drives and USB hubs are not supported.
* External power supply is required for using an USB hard drive.
* To connect the GV ‐WiFi Adaptor, make sure it is connected before the camera is powered on.
2. Mind the following when using an inserted memory card for recording:
* Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical
shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No
guarantee is provided for such causes.
* The stored data can be lost if the memory card is not accessed for a prolonged period of time. Back up your data periodically
if you seldom access the memory card.
GV-MFD2501 Series January 4, 2018
- 3 -

* Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are
used. Back up your data regularly and replace the memory card annually.
* To avoid power outage, it is highly recommended to apply a battery backup (UPS).
* For better performance, it is highly recommended to use Micro SD card of MLC NAND flash, Class 10.
* Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently
undetected by the camera.
3. Specifications are subject to change without notice.

Packing List
1. Mini Fixed Dome
2. Torx Wrench
3. Self Tapping Screw x 2
4. Screw Anchor x 2
5. Cable Stopper
6. Short ‐Body RJ ‐ 45 Plug
7. USB / Audio Y ‐cable
8. Power Adapter
9. Download Guide
10. Warranty Card
Note: The power adapter can be excluded upon request.

Accessories
Model No./Name
Details
GV ‐Mount909 Wall Box Mount


Dimensions: 170 x 150 x 110 mm (6.7 x 5.9 x 4.3")
Weight: 0.61 kg (1.34 lb)

GV ‐Mount910 Power Box Mount Bracket


Dimensions: 112 x 98 x 7.5 mm (4.4 x 3.9 x 0.3")
Weight: 105 g (0.23 lb)

GV ‐Mount913 Power Box Mount Bracket


Dimensions: Ø 146 x 7.5 mm (Ø 5.7 x 0.3")
Weight: 180 g (0.4 lb)

GV ‐Mount918 Wall Mount Bracket for
MFD/MDR/EFD/EDR


Dimensions: Ø 145 x 117 x 96 mm (Ø 5.71” x 4.60” x 3.78")
Weight: 350 g (0.77 lb)

GV-MFD2501 Series January 4, 2018
- 4 -



Model No./Name
Details
GV ‐PA191 PoE Adapter Dimensions (H x W x D): 43 x 69 x 40 mm (1.69” x 2.72” x 1.57”)
Weight: 130 g (0.29 lb)

Power Adapter Contact our sales representatives for the countries and areas supported.

GV ‐ PoE Switch GV ‐ PoE Switch is designed to provide power along with network connection for
IP devices. GV ‐ PoE Switch is available in various models with different numbers
and types of ports.

GV ‐ WiFi Adaptor V2 GV ‐ WiFi Adaptor V2 is designed to connect GV ‐ IP devices to the wireless
network.
