GV-NET

The GV ‐ NET Card V3.2 is a RS ‐ 485 / RS ‐ 232 interface converter that can be installed inside a PC. It also supports connection via USB port.    Specifications  32‐ bit Windows XP / Vista / 7 / 8 / 8.1 / 10 / Server 2008    OS Supported  64‐ bit Windows 7 / 8 / 8.1 / 10 / Server 2008 / Server 2012 / Server 2012 R2    RJ ‐ 11 to DB9 (RS ...

Garantie: 36 mon.

Datentabelle

Textinhalt des PDF-Datenblattes:

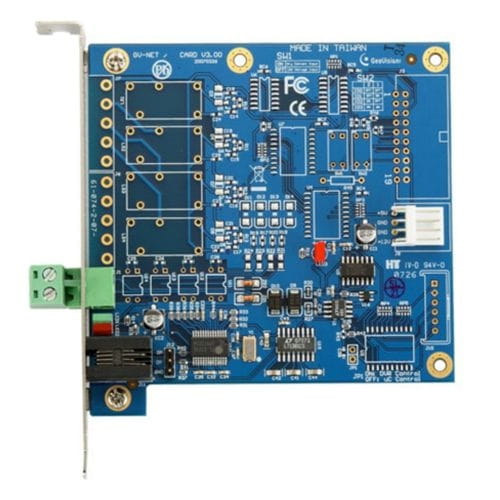

The GV ‐ NET Card V3.2 is a RS ‐ 485 / RS ‐ 232 interface converter that can be installed inside a PC. It also supports connection via USB port.

Specifications
32‐ bit Windows XP / Vista / 7 / 8 / 8.1 / 10 / Server 2008

OS Supported
64‐ bit Windows 7 / 8 / 8.1 / 10 / Server 2008 / Server 2012 / Server 2012 R2

RJ ‐ 11 to DB9 (RS ‐ 232)

RJ ‐ 11 to USB

3‐ pin internal USB to internal USB

Interface
RS ‐ 485+ / RS ‐ 485‐

Communication RS ‐ 485 1,200~115,200 bps; USB

Environmental Conditions 0~50°C / 32~122°F, 5%~95% (non ‐ condensing)

Dimensions (W x H) 97 x 90 ( mm) / 3.82 x 3.54 (in)

Installation Guide GV ‐ NET Card V3.2



Ordering Info

Item No. (Sales Part No.)
Description
400‐ NETCR ‐ 000 GV ‐ NET Card V3.2


Note: All specifications are subject to change without notice.



March 9, 2016
‐ 1 ‐
