GV-PA902BT November 25, 2020

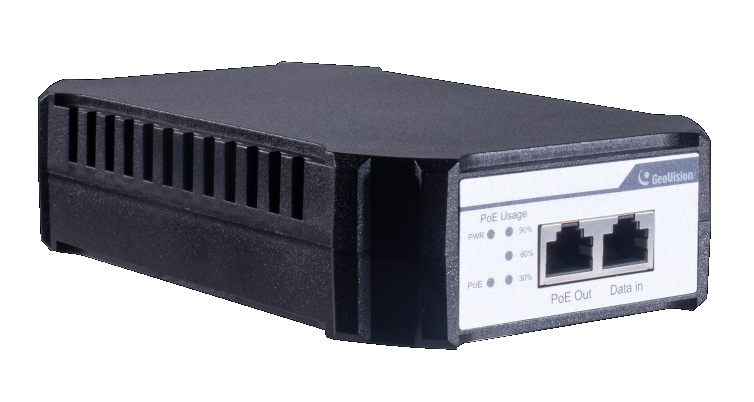

GV-PA902BT Gigabit BT PoE++ Adapter




Introduction
GV ‐PA902BT is a 1 ‐ Port 10/100/1000 Mbps Gigabit Power over Ethernet (PoE) adapter. The adapter supports IEEE802.3af/at/bt Power
over Ethernet standard, with a maximum power output of 95 W through a single Ethernet cable. Adopting the PoE adapter enables
you to mount an IP camera anywhere in a building where po wer outlets are not available.

Specifications
Port
Data in port: 1 x 10/100/1000 Mbps RJ ‐ 45 port
PoE out port: 1 x 10/100/1000 Mbps RJ ‐ 45 port

Power Source High Power Over Ethernet (Max. 95 W)

PoE Power Output DC 54V (Max. 95 W)

Ethernet Cable Length Max 100 m (328 ft) from GV ‐PA902BT to IP device, CAT5e, 6

Power Input AC 100V ~ 240V, 50/60Hz

Operation Temperature
Operating Temperature: 0°C ~ 40 °C (32 °F ~104°F )
Storage Temperature: ‐ 40 °C ~ 70 °C ( ‐ 40 °F ~158°F )

Humidity
Operating Humidity: 10% ~ 90% non ‐condensing
Storage Humidity: 5% ~ 90% non ‐condensing

Dimensions (L x W x H) 170 x 102 x 40 mm (6.69” x 4.01” x 1.57”)

Weight 0.95 kg (2.09 lb)

Standard IEEE802.3af/at/bt

Energy Efficiency Grade 6


Dimensions

















GV-PA902BT November 25, 2020

Packing List
1. GV ‐PA902BT x 1
2. Power Cord x 1
3. Rubber Feet x 4

Compatible GV ‐ IP Devices
* GV ‐LPR2800 ‐ DL
* GV ‐PPTZ7300 / 14021 / 14031
* GV ‐QSD5731 ‐ IR
* GV ‐SD2301 V2 / 2411 V2 / 2723 ‐ IR / 2733 ‐ IR
* GV ‐SV48000
