GV-POE0801 8-Port 802.3at Web Management PoE Switch




 8 ‐ port 10/100BaseTX, PSE plus 2 ‐ port Gigabit Uplink (1*TP,
1*SFP)
 IEEE 802.3at Compliant (8 Ports at Full 15.4 W)
 Web‐based Configuration and Management
 VLAN, QoS, RSTP, IGMP Snooping, LACP, Port Security,
Bandwidth Control, Broadcast Storm Control
 Max. 130 W power consumption
 11” Metal Case
 Up to 8 GV ‐ IP Cameras support
Introduction
GV ‐POE0801 is an 8 ‐ port 10/100BaseTX, PSE plus 2 ‐ port Gigabit Uplink (1xTP, 1xSFP) Desktop Web Smart PoE Switch. The switch
supports IEEE 802.3at Power over Ethernet standard, up to 30 W per port and maximum 130 W power consumption per system, and
no special network cable is required for con necting your powered devices (PD), such as IP cameras. The switch also provides
exceptionally smart Web management features, such as VLAN, QoS, RSTP ,IGMP Snooping, LACP, Port Security, etc. The switch is
designed for small or medium network environment to strengthen its network connection and efficiency. It also gives you the option
of installing it in a 19" cabinet with a rack mount kit or underneath a desk.

Dimensions


GV-POE0801 March 23, 2018
- 1 -

GV-POE0801 March 23, 2018
- 2 -
Specifications
Ethernet
Layer Supported L2

Ports

Number of Ports
10 ports
8 ‐ port Fast Ethernet 10/100BaseTX, IEEE 802.3at PSE
2 ‐ port Gigabit Uplink (1xTP, 1xSFP)

Performance

MAC Address 4 K

Buffer Memory 2.75 M bits

Transmission Method Store and Forward

Transmission Media
10BaseT Cat. 5 UTP/STP
100BaseTX Cat. 5 UTP/STP
1000BaseT Cat. 5e, 6 UTP/STP

Filtering/Forwarding Rates
10 Mbps port ‐ 14,880 pps
100 Mbps port ‐ 148,800 pps
1000 Mbps port ‐ 1,488,000 pps

Backplane Capacity 5.6 Gbps

Smart Features

Port Based VLAN 10

Tagged Based VLAN 32, VID = 1 ~ 4094

IGMP Snooping V1 & V2

Link Aggregation 1, Gigabit ports

Quality of Service (QoS) High & Low priority queues, 802.1p

Security Port & MAC binding, 3 MAC per port

Port Management
Port State, Speed/Duplex, Flow Control Configuration, Port Mirroring,
Bandwidth Control, Broadcast Storm Control, PoE

Administrator Management
Web Management, Password Protection, Configuration Backup/Restore,
Firmware Upgrade

Mechanical Characteristics

LED Indicators
Per Port: Link/Act
PoE Act/Status
Power

Electrical Characteristics

Input 100 ~ 240 V/AC, 50 ~ 60 Hz

PoE Power
Output
IEEE 802.3at Compliant Voltage, Per Port Max. 30 watts
(8 Ports at Full 15.4 W / 4 Ports at Full 30 W)

PoE Power Supply Type Mid ‐Span

Max. Power Consumption 130 W

General

Dimensions (H x W x D) 44 x 266 x 160 mm (1.73" x 10.47" x 6.3")

Weight 1.8 kg (3.97 lb)

Operating Temperature 0°C ~ 45°C (32°F ~ 113°F)

Storage Temperature ‐20°C ~ 90°C ( ‐ 4°F ~ 194°F)

Humidity 10 to 90% RH (non ‐condensing)




Standards and Regulatory
Standards
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.ab 1000BaseT
IEEE 802.3z 1000BaseSX/LX
IEEE 802.3x Flow Control
IEEE 802.3ad Link Aggregation Control Protocol
IEEE 802.1Q VLAN
IEEE 802.1p Class of Service
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.3at Power Over Ethernet (PoE+)

Regulatory CE, FCC Class A, RoHS compliant

Note:
1. The switch is a plug ‐ and ‐play device and compatible with all SFP modules.
2. Specifications are subject to change without notice.

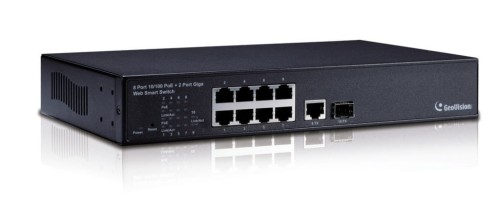

Front View



Accessories
Name Details
GV ‐ LC


The SFP transceiver complies with IEEE 802.3z 1000BaseSX Ethernet,
and provides the media transmission distance up to 220 / 550 m.
GV ‐LC10


The SFP transceiver complies with IEEE 802.3z 1000BaseLX Ethernet,
and provides the media transmission distance up to 10 km.

Packing List
1. GV ‐POE0801
2. Screw x 8
3. Rack Mount Kit
4. AC Power Cord
5. Software CD
6. GV ‐POE0801 Quick Start Guide
