GV-QFER12700 June 25, 2021
- 1 -

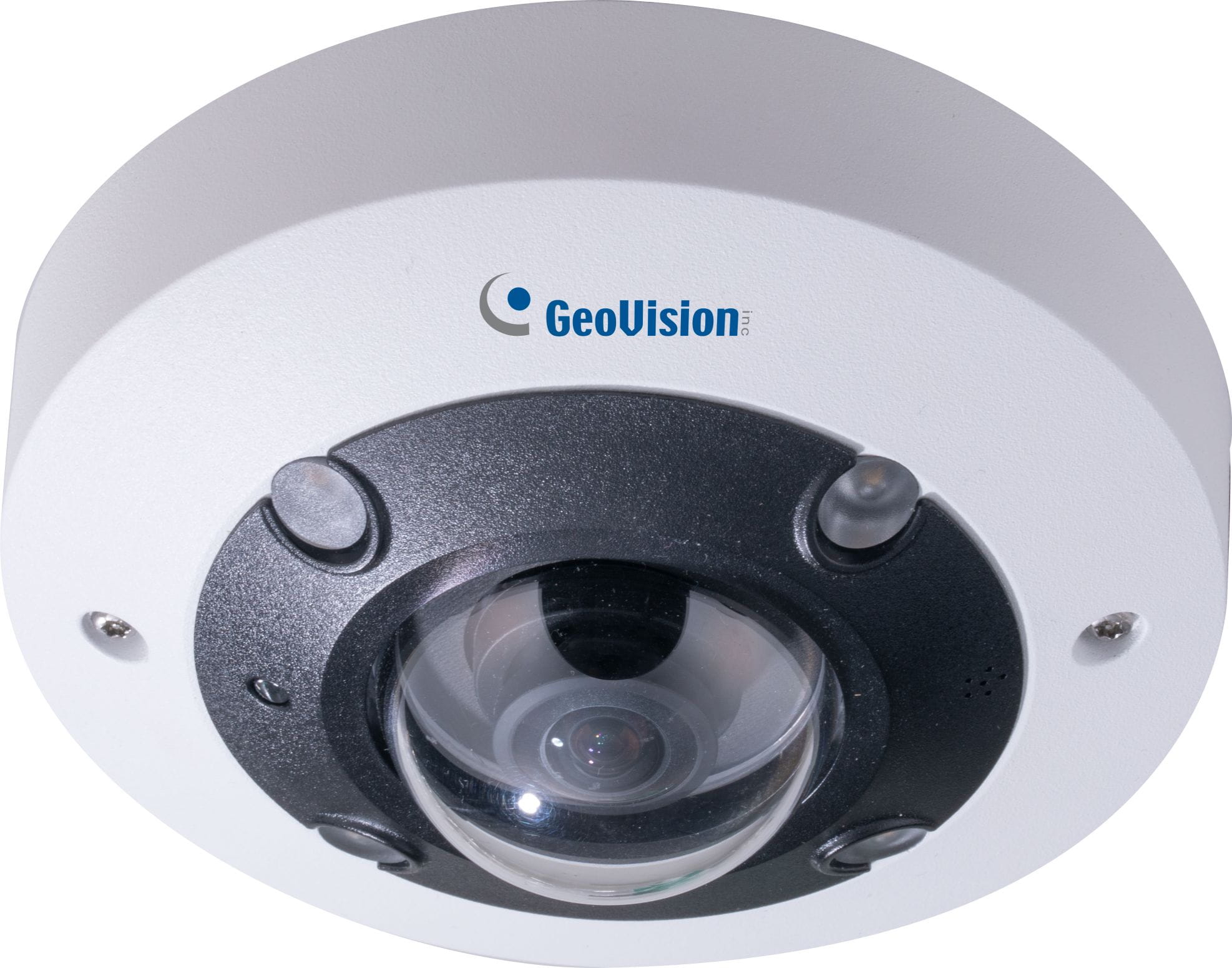

GV-QFER12700 12MP H.265 Low Lux WDR IR Fisheye IP Camera



Introduction
GV-QFER12700 is a 12 MP outdoor fisheye camera allowing you to monitor all angles of a location and can be installed to the ceiling
or t he wall. GV-QFER12700 supports H.265 video codec to achieve better compression ratio while maintaining high video quality at
reduced network bandwidths. The live view of the camera can be accessed from up to 20 connections through the web interface.
Equipped with automatic IR -cut filter and IR LEDs, GV-QFER12700 is capable of day and night surveillance. In addition, the
embedded edge dewarping engine enables the camera to dewarp images by the camera itself rather than consuming resources from
the backend devices.

Key Features
• 1/1.7" progressive scan CMOS
• Quad streams from H.265, H.264 or MJPEG
• Up to 20 fps at 4000 x 3000
• On -edge dewarping up to 8 MP; software dewarping up to 12 MP
• Day and Night function (with removable IR-cut filter)
• Vandal resistance (IK10 for metal casing)
• Ingress protection (IP66)
• One sensor input and one alarm output
• Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
• Two-way audio
• DC 12V/ PoE (IEEE 802.af)
• Provides 360° and 180° panorama view
• Different angle of view accessible by multiple users at the same time
• Playback from any view angle and zoom level
• No mechanical moving parts
• Low lux enhancement
• 3D noise reduction
• Virtual PTZ function
• 12 languages on Web interface
• ONVIF Profile S / G/ T support










GV-QFER12700 June 25, 2021
- 2 -

Dimensions



Specifications
Camera
Image Sensor 1/1.7” progressive scan CMOS
Picture Elements 4000 (H) x 3000 (V)
Minimum
Illumination
Color 0.1 Lux
B/W 0.01 Lux
IR On 0 Lux
Shutter Speed (1 ~ 1/10000 sec)
White Balance Auto / Manual
S/N Ratio 52dB
WDR Yes
Dynamic Range 77dB
Optics Lens
Megapiel es
DayNight es with removable IRcut filter
Lens ype Fied
Focal Length . mm
Maimum Aperture F .
Image Format .
oriontal FOV
Operation
Focus Fied
oom Fied
Iris Fied
IR LED uantity IR LEDs
Ma. IR Distance m ft
Operation
Video Compression . . MPEG
Video Streaming uad streams from . . or MPEG
Frame Rate
fps at
he frame rate and the performance may vary depending on the number of
connections and data bitrates different scenes.
Image Setting
rightness Contrast Saturation Sharpness ue White alance Shutter
Speed DN Sensitivity acklight Compensation WDR Denoise
Audio Compression G.
Audio Support woway Audio eternal microphone and speaker reuired
Sensor Input input
Sensor Output output




GV-QFER12700 June 25, 2021
- 3 -

Video Resolution
Software
Dewarping
Main Stream 4000 x 3000 (Default), 1920 x 1080
Sub Stream 1024 x 768 (Default), 800 x 600, 640 x 480, 320 x 240
Third Stream (Closed by Default) 800 x 600, 720 x 576, 640 x 480, 352 x 288, 320 x 240
Quad Stream (Closed by Default) 800 x 600, 720 x 576, 640 x 480, 352 x 288, 320 x 240
On -Edge
Dewarping
Main Stream
Fisheye 2976 x 2976, 2048 x 2048, 2048 x 1536, 1920 x 1080
Single View 2976 x 2976, 2048 x 2048, 2048 x 1536, 1920 x 1080
Dual 180
Degree
2048 x 1536, 1920 x 1080
Quad View 2976 x 2976, 2048 x 2048, 2048 x 1536, 1920 x 1080
Sub Stream
Fisheye
2048 x 2048, 2048 x 1536, 1920 x 1080, 1600 x 1200, 1408 x 1408, 960 x 960,
960 x 720, 960 x 544
Single View
2048 x 2048, 2048 x 1536, 1920 x 1080, 1600 x 1200, 1408 x 1408, 960 x 960,
960 x 720, 960 x 544
Dual 180
Degree
2048 x 1536, 1920 x 1080, 1600 x 1200, 960 x 720, 960 x 544
Quad View
2048 x 2048, 2048 x 1536, 1920 x 1080, 1600 x 1200, 1408 x 1408, 960 x 960,
960 x 720, 960 x 544
Third Stream
(Closed by Default)
Single View 480 x 360
Network
Interface Ethernet
Protocol
ARP IPvv CPIP DP RP RSP P PS ICMP FP SMP DCP
PPPoE PnP IGMP SNMP oS ONVIF Profile SG
Security Feature
No default ID and Password
. authentication
PS with a SSL certificate stored in the camera
Mechanical
Connectors
Power DC ack
Ethernet R
Audio
In eternal microphone
Out Stereo phone ack . mm .
Digital IO pin terminal block pitch . mm .
Local Storage
Micro SD card slot SDSDCSDCSI Class
Support recording to NAS
General
Operating
Temperature
Start-up -20⁰C ~ 70⁰C (









Power over Ethernet
PoE Standard PoE IEEE .af Power over Ethernet PD
PoE Power Supply ype EndSpan Mid Span
PoE Power Output Per Port V DC mA Ma. . W
Web Interface
Installation Management Webbased configuration
Maintenance Firmware upgrade through Web rowser or GVIP Device tility
Language
Cech English French German ungarian Italian apanese Portuguese
Russian Spanish raditional Chinese Simplified Chinese




GV-QFER12700 June 25, 2021
- 4 -

Applications
Software Supported
GV-VMS (V17.4.1 / V18.2.1)
*It is required to apply patch files to all the supported software .
*Currently only GV-VMS, applied with the patches, supports GV-QFER12700.
Smart Device Access GV-Eye for iOS and Android
Live Viewing
Internet Explorer, Non-IE browser (Edge, Chrome, Firefox, Safari), Mobile App
*The non-IE browsers only support displaying live view with MJPEG.
Note:
1. Do not use clothes or an y ordinary material to clean the camera cover since they may result in scratches.
2. Mind the following when using an inserted memory card for recording:
• Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical
shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No
guarantee is provided for such causes.
• The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if
you seldom access the memory card.
• Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are
used. Back up your data regularly and replace the memory card annually.
• To avoid power outage, it is highly suggested to apply a battery backup (UPS).
• For better performance, it is highly suggested to use micro SD card of MLC NAND flash, Class 10.
• Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently
undetected by the camera.
3. Specifications are subject to change without notice .

Packing List
1. GV -QFER12700
2. Self -Tapping Screw x 3
3. Plastic Anchor x 3
4. Torx Wrench
5. Waterproof Rubber Set
6. 4 -Pin Terminal Block
7. Download Guide
8. Warranty Card

Accessories
Model No. Name Details
GV-Mount100
Straight Tube and
Junction Box Kit


Dimensions: 200 x 170 x 257.5 mm (7.9” x
6.7” x 10.1” )
Weight: 3.17 k g (6.99 lb )
GV-Mount101 Straight Tube Kit


Dimensions: 219 x 125 x 332 mm (8.6” x
4.9” x 13.1” )
Weight: 1.8 kg (3.97 lb )
GV-Mount200 Wall Pendant Mount


Dimensions: 225 x 140 x 250 mm (8.9” x
5.5” x 9.8”)
Weight: 900 g (1.98 lb )
Note: To ensure the image quality, leave a distance
of 1 M or more between the camera body and the
wall.



GV-QFER12700 June 25, 2021
- 5 -
GV-Mount203
Wall Mount and
Junction Box


Dimensions: 315 x 195.5 x 225 mm
(12.4 x 7.7 x 8.9”)
Weight: 2.95 kg (6.5 lb)
G V -Mount206 - 1 Wall Box Mount


Dimensions: 126.5 x 211.3 x 176.85 mm /
5 x 8.3 x 6.96"
Weight: 1.06 kg (2.33 lb)
GV-Mount208 - 2 Swan Neck Mount


Dimensions: 1043 x 519 x 256 mm (41.06”
x 20.43” x 10.08”)
Weight 10.5 kg (23.15 lb)
GV-Mount702 Extension Tube


Four options are available.
Dimensions:
Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1” x 3.9” or 7.9” or 11.8” or 19.7” )
Weight:
180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21 lb or 1.76 lb )
G V -Mount903 - 2 Dome Housing Mount


Dimensions: Ø 185.5 x 165.3 mm (Ø 7.3" x
6.5")
Weight: 1.03 k g (2.27lb)
G V -Mount904 - 2
Tilting Wall Mount
Bracket


Dimensions: Ø 159.1 x 40.5 mm (Ø 6.3 x
1.6")
Weight: 0.48 k g ( 1.05 lb)
G V -Mount912 - 1
Power Box Mount
Bracket


Dimensions: Ø 130 mm (Ø 5.1 ")
Weight: 180 g (0.4 lb)
G V -Mount919 In -Ceiling Mount


Dimensions: Ø 189 x 75.9 mm (Ø 7.44 x
2.98")
Weight: 525 g (1.15 lb)
GV-PA191
Power over Ethernet
(PoE) Adapter


GV-PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the
IP device through a single Ethernet cable.
GV-PoE Switch
GV-PoE Switch is designed to provide power along with network connection for IP devices.
GV -PoE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
