GV-TBLP8800 July 4, 2024

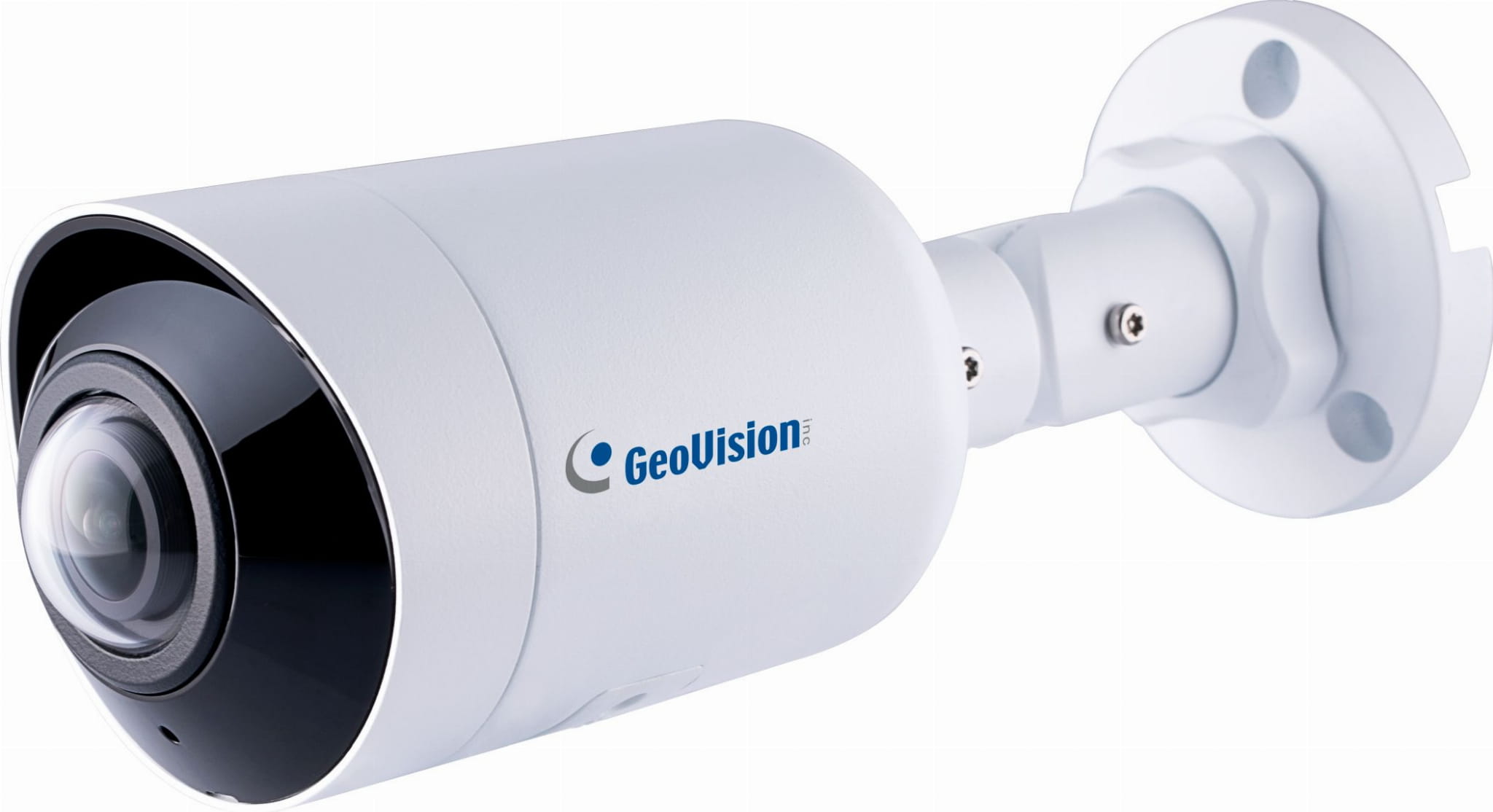

GV-TBLP8800 AI 180° Panoramic 8MP H.265 Super Low Lux WDR Pro IR Fixed
Bullet IP Camera





• AI deep learning: AI Perimeter Protection & Classification
(Human, Vehicle)
• 1/2.7” progressive scan CMOS
• Min. illumination at 0.01 lux
• Triple streams from H.265, H.264 and MJPEG
• Up to 30 fps at 3840 x 2160
• Intelligent IR
• IR distance up to 20 m (65 ft)
• Day and Night function (with removable IR-cut filter)
• 180° panoramic view
• Ingress protection (IP67)
• DC 12V / PoE (IEEE 802.3af)
• Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10)
for local storage
• Built-in microphone
• Wide Dynamic Range Pro (WDR Pro)
• AI analytics (Intrusion, Crossing Line, Entering Area, Leaving
Area)
• 3D noise reduction
• Motion detection
• Tampering Alarm
• Defog
• Text overlay
• Privacy mask
• 12 languages supported
• ONVIF (Profile G, S, T) conformant

Introduction
The panoramic bullet IP camera is an outdoor, network camera that captures 180° horizontal coverage, providing a wide
coverage of view for open and large areas with just one camera. It is equipped with an automatic IR-cut filter and IR LEDs for day
and night surveillance. GV-TBLP8800 adheres to IP67 standards, and can be powered through PoE. The camera supports H.265
video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated
with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.

180 Degree Panoramic View



GV-TBLP8800 July 4, 2024


Deep Learning Function

AI Perimeter Protection
(Intrusion, Crossing Line, Entering Area, Leaving Area)

Dimensions
Specifications
Camera
Image Sensor 1/2.7” progressive scan CMOS
Picture Elements 3840 (H) x 2160 (V)
Minimum
Illumination
Color 0.01 Lux (F2.0, AGC ON)
IR On 0 Lux
Shutter Speed Automatic, Manual (1 ~ 1/100000 sec)
White Balance Automatic, Manual
Gain Control Automatic, Manual
S/N Ratio 52 dB
WDR Pro Yes
Dynamic Range 120 dB
Lens
Megapixel 8 MP
Day/Night Yes (with removable IR-cut filter)
Focal Length 1.68 mm
Lens Type Fixed
Maximum Aperture F/2.0
Mount M12
Horizontal FOV 180°
Operation
Focus Fixed
Zoom Fixed
Iris Fixed
IR LED Quantity 2 IR LEDs
Max. IR Distance 20 m (65 ft)
DORI Detect Observe Recognize Identify
Lens 1.68mm 37.8 m (124.0 ft) 15.1 m (49.6 ft) 7.6 m (24.8 ft) 3.8 m (12.4 ft)
Operation
Video Compression H.265, H.264, MJPEG



GV-TBLP8800 July 4, 2024
Video Streaming Triple streams
Video Resolution
Main Stream 3840 x 2160 (Default), 3072 x 1728, 2560 x 1440, 1920 x 1080
Sub Stream 1280 x 720, 720 x 576, 640 x 480, 640 x 360 (Default), 704 x 288, 352 x 288
Third Stream
(Closed by
Default)
640 x 360, 352 x 288
Frame Rate
30 fps at 3840 x2160, 3072 x 1728, 2560 x 1440, 1920 x 1080 (50/60 Hz)
*The frame rate and performance may vary depending on the number of connections and
data bitrates (different scenes).
Maximum throughput 50 Mbps
Maximum stream
*When the total bitrate is within
the maximum throughput
20
Video Analytics
Motion Detection, Audio Alarm, Tamper Detection.
*Tampering detection and audio alarm are only accessible through the camera’s Web
interface, which can be used to trigger alerts such as e‐mail and FTP
Image Setting
Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image
Orientation (Flip, Mirror, 0°, 180°).
Audio Compression G.711
Audio Support One‐way audio
Deep Learning Function
AI Analytics Intrusion, Crossing Line, Entering Area, Leaving Area (Human & Vehicle classification)
Network
Interface 10M/100M Ethernet
Protocol
IPv4, IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP,
NTP, SMTP, SNMP, PPPoE, 802.1x, QoS, IGMP, ONVIF Profile (G, S, T)
Mechanical
Camera Angle
Adjustment
Pan 0° ~ 360°
Tilt 0° ~ 90°
Rotate 0° ~ 360°
Connectors
Power DC Jack, PoE
Ethernet RJ-45
Audio
Built-in microphone Yes
External microphone required No
Built-in speaker No
External speaker required No
*For devices with microphone or speaker, choose either the built-in or external option.
*If equipped with an audio in port, it only supports microphones with power supply.
Local Storage
Micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10), up to 256 GB
*UHS-II card type is not supported.
General
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Humidity 0 ~ 95% (no condensation)
Power Source 12 V DC / PoE (IEEE802.3af)
Max. Power Consumption 7 W
Dimensions 198 x 71 x 71 mm (7.8 x 2.8 x 2.8”)
Weight 0.42 kg (0.93 lb)
Ingress Protection IP67
Certification CE, FCC, LVD, RoHS, UL compliant
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Text Overlay, Image Masking
Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian,
Spanish, Traditional Chinese



GV-TBLP8800 July 4, 2024
Software Applications
Software Supported
GV‐VMS (V17.4.7 or later / V18.3.2 or later), GV‐Control Center (V4.2.0 or later), GV‐Edge
Recording Manager Windows Version (V2.2.8 or later), GV‐Recording Server / Video
Gateway (V2.1.1 or later)
Smart Device Access GV-Eye for iOS and Android (V3.2.0 or later)
Live Viewing Browser (IE, Edge, Chrome, Firefox)
Note: All specifications are subject to change without notice.

Packing List
1. GV-TBLP8800 IR Bullet
2. Waterproof Rubber Set
3. Screw kit
4. Drill Template Paster
5. Torx Wrench
6. Download Guide

Accessories
Model No. Name Details
GV-Mount300-2
(must be used with
GV-Mount504)
Convex Corner Mount


Dimensions: 137 x 233 x 160 mm
(5.4” x 9.17” x 6.3”)
Weight: 1.65 kg (3.64 lb)
GV-Mount310-2
(must be used with
GV-Mount504)
Concave Corner Mount


Dimensions: 111.2 x 369.9 x 210 mm
(2.6” x 11.4” x 6.6”)
Weight: 1.65 kg (3.64 lb)
GV-Mount440
(must be used with
GV-Mount504)
Pole Mount


Dimensions: 127 x 136 x 62.5 mm
(5.0” x 5.4” x 2.5”)
Weight: 0.34 kg (0.75 lb)
Steel Strap Diameter: Ø 67 ~ 127 mm
(Ø 2.6" ~ 5")

GV-Mount504 Wall Mount Bracket Dimensions: 104.4 x 54.5 mm (4.11” x 2.15”)
Weight: 0.36 kg (0.79 lb)
GV-Mount924 (for
standard US single and
double gang boxes only)
Power Box Mount Bracket

Dimensions: Ø 128 x 18.5 mm (Ø 5” x 0.7”)
Weight: 0.15 kg (0.33 lb)
GV-PA191 Power over Ethernet (PoE)
Adapter
GV-PA191 is a Power over Ethernet (PoE) adapter
designed to provide power to the IP device
through a single Ethernet cable.



GV-TBLP8800 July 4, 2024
GV-PA301 Gigabit PoE Adapter

GV-PA301 is a Gigabit Power over Ethernet (PoE)
adapter.
GV-PoE Switch GV-POE Switch is designed to provide power along with network connection
for IP devices. It is available in various models with different numbers and
types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.

Mounting Type
Convex Corner Mount Wall Mount Bracket Pole Mount Power Box Mount Bracket
GV-Mount300-2 +
GV-Mount504
GV-Mount310-2 +
GV-Mount504
GV-Mount504
GV-Mount440 +
GV-Mount504
GV-Mount924
