GV-TDR2704 July 2, 2021
- 1 -

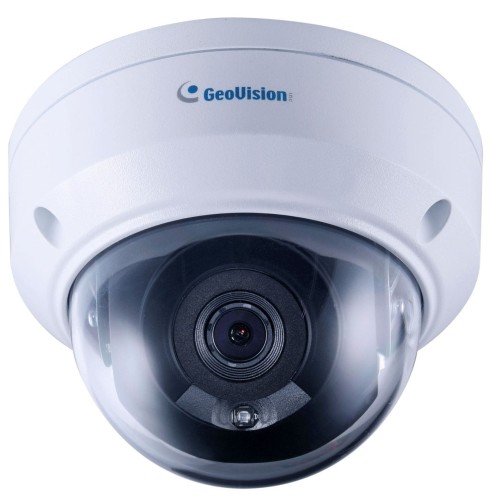

GV- TDR270 4 2MP H.26 5 Low Lux WDR Pro IR Mini Fixed Rugged IP Dome


• 1/2.7" progressive scan low lux CMOS sensor
• Min. illumination at 0.0 1 lux
• Dual streams from H.265, H.264 or MJPEG
• Up to 30 fps at 1920 x 1080
• Intelligent IR
• IR distance up to 30 m (100 ft)
• Built‐in micro SD card slot (SD / SDHC / SDXC / UHS‐I, Class
10) for local storage
• 3‐axis mechanism (pan / tilt / rotate)
• Day and night function (with removable IR ‐cut filter)
• Ingress protection (IP67 )
• Vandal Resistance (IK10)
• DC 12 V / PoE (IEEE 802.3af)
• Wide Dynamic Range (WDR Pro )
• Defog
• 3D noise reduction
• Motion detection
• Text overlay
• Privacy mask
• 12 languages supported
• ONVIF (Profile G, S , T) conformant


Introduction

The Mini Fixed Rugged IP Dome is an outdoor, fixed, network camera equipped with an automatic IR ‐cut filter and an IR LED for day
and night surveillance . The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality
pictures at reduced network bandwidths. It adheres to IP67 and IK10 standard s , and can be powered through PoE.

Models
Model Iris Focal Length (mm) Horizontal FOV Maximum Aperture Image Format
GV‐TDR2704‐2F
Fixed
2.8 mm 113°
F/2.0 1/2.7 ”
GV‐TDR2704‐4F 4.0 mm 91°


Dimensions







GV-TDR2704 July 2, 2021
- 2 -
Specifications
Camera
Image Sensor 1/2.7" progressive scan low lux CMOS
Picture Elements 1920 (H) x 1080 (V)
Minimum
Illumination
Color 0.01 Lux (F2.0, AGC ON)
IR ON 0 Lux
Shutter Speed Auto / Manual (1 ~ 1/100,000 sec)
White Balance Auto / Manual
Gain Control Auto / Manual
S/N Ratio 52 dB
WDR Pro Yes
Dynamic Range Up to 120 dB
Lens GV‐TDR2704‐2F GV‐TDR2704‐4F
Megapixel Yes
Day / Night Yes (with removable IR‐cut filter)
Lens Type Fixed
Focal Length 2.8 mm 4 mm
Maximum Aperture F/2.0
Mount M12
Horizontal FOV 113° 91°
Operation
Focus
Fixed Zoom
Iris
IR LED Quantity 1 IR LED
Max. IR Distance 30 m (100 ft)
Operation
Video Compression H.2 H.24 MPG
Video Streaming Dual streams from H.2 H.24 or MPG
Video Resolution
Main Stream 20 x 00 (Default) 20 x720
Sub Stream 20 x 720 720 x 7 704 x 2 40 x 40 40 x 0 (Default) 2 x 2
Frame Rate
0 fps at 20 x 00 (0 0 Hz)
The frame rate and performance ma ar depending on the number of connections
and data bitrates (different scenes).
Video Analtics
Motion Detection Tampering Alarm Crossing line Intrusion.
Tampering alarm Cross Line and Intrusion are onl accessible through the cameras
Web interface which can be used to trigger alerts such as e-mail and FTP
Image Setting
rightness Contrast Saturation Sharpness Flicker-less Image Orientation (Flip
Mirror 0 0 0 270-including Corridor format)
Network
Interface 000 thernet
Protocol
02.x ARP DHCP DDNS DNS DnDNS FTP HTTP HTTPS ICMP IGMP IP4 NTP
PPPo oS RTCP RTP RTSP SMTP SNMP TCP DP PnP ONVIF (Profile G S T)
Mechanical
Temperature Detector No
Camera Angle
Adustment
Pan 0
Tilt 0
Rotate 0
Connectors
Power DC ack (DC 2 V .2 A) Po
thernet R-4 connector
Local Storage
Micro SD card slot (SD SDHC SDC HS-I Class 0)
HS-II card tpe is not supported.
General
Operating Temperature -0 C 0 C (-22 F 40 F)
Humidit 0 0 (no condensation)
Power Source 2 V DC Po (I02.af)
Max. Power Consumption .0 W
Dimensions 0.7 x . mm ( 4. x .2)



GV-TDR2704 July 2, 2021
- 3 -
Weight 0.36 kg (0.79 lb)
Ingress Protection IP67
Vandal Resistance IK10
Regulatory FCC, CE, RoHS compliant
Web Interface
Installation Management Web‐based configuration
Maintenance Firmware upgrade through Web Browser or GV‐IP Device Utility
Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Defog, Text Overlay, Image Masking
Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese,
Russian, Spanish, Traditional Chinese
Applications
Software Supported
GV-VMS (V7.4. V.2.) GV-DVR NVR (V..) GV-Control Center (V..0)
GV-Recording Serer Video Gatewa (V.4.0) GV-dge Recording Manager Win
ersion (V2.0.0) GV-Redundant Failoer Serer (V..0.0) GV-Mobile Serer (V..)
Lie Viewing rowser (I dge Chrome Firefox Safari) Mobile App

Note:
1. It is required to apply patch files to some or all of the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.

Packing List
1. GV‐TDR2704 Dome
2. Waterproof Rubber Set
3. Screw Kit
4. Torx Wrench
5. Drill Template Paster
6. Download Guide
7. Warranty Card

Accessories

Model No. Name Details
GV‐Mount107 (must be used
with GV‐Mount213)
Pendant Bracket


Dimensions: Ø 120 x 334 mm (Ø 4.72”
x 13.15”)
Weight: 0.74 kg (1.63 lb)
GV‐Mount211P Wall Mount and
Junction Box


Dimensions: Ø 233 x 126 x 126 mm (Ø
9.2” x 5” x 5”)
Weight: 1 kg ( 2. 2 lb)
GV‐Mount213 Wall / Ceiling Box
Mount


Dimensions: Ø 109 x 39 mm (Ø 4.3” x
1.5”)
Weight: 0.2 kg (0.44 lb)
GV‐Mount300‐2 Convex Corner
Mount


Dimensions: 137 x 233 x 160 mm
(5.4” x 9.17” x 6.3”)
Weight: 1.65 kg (3.64 lb)
GV‐Mount310‐2 Concave Corner
Mount


Dimensions: 111.2 x 369.9 x 210 mm
(2.6” x 11.4” x 6.6”)
Weight: 1.65 kg (3.64 lb)



GV-TDR2704 July 2, 2021
- 4 -
GV‐Mount420
(must be used with
GV‐Mount211P)
Pole Mount
Bracket


Dimensions: Ø 120 x 120 x 53.4 mm (Ø
4.7” x 4.7” x 2.1”)
Weight: 0.45 kg (0.99 lb)
Steel Strap Diameter: Ø 67 ~ 127 mm
(Ø 2.6” ~ 5”)
GV‐Mount704 (must be used
with GV‐Mount107)
Extension Tube


Dimensions: Ø 3.5 x 10 or 20 or 30 or
50 cm (Ø 1.38 x 3.9 or 7.9 or 11.8 or
19.7” )
Weight: 225g or 360g or 500g or 780g
(0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb)
GV‐PA191 Power over
Ethernet
(PoE) Adapter


The GV‐PA191 is a Power over
Ethernet (PoE) adapter designed to
provide power to the IP device
through a single Ethernet cable.
GV‐POE Switch The GV‐POE Switch is designed to provide power along with network connection
for IP devices. The GV‐POE Switch is available in various models with different
numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
