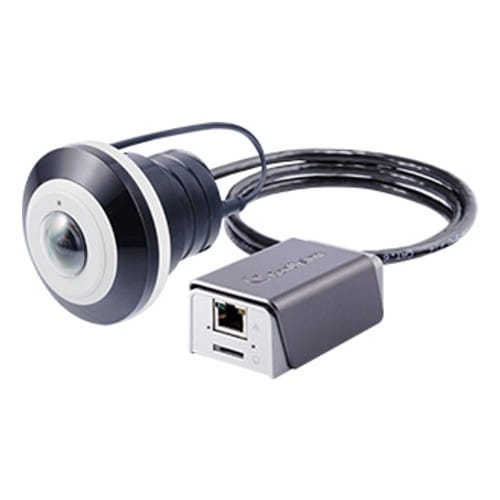

GV-UNFE2503

Verfügbarkeit: 0
Preis: 464,14 € 464.14
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: GEOVISION
Produkt-Code/SKU: 84-UNFE250-3010

Beschreibung

GV-UNFE2503 January 4, 2018  - 1 -  GV- UN FE 2503 2MP H.264 Super Low Lux WDR IR Fisheye Camera          • 1/2.8" progressive scan super low lux CMOS  • Minimum illumination at 0.02 lux  • Dual streams from H.264 and MJPEG  • Up to 30 fps at 192 0 x 1 080  • Megapixel lens  • Day and night function (with removable IR -cut filter )  • Intelligent IR  • PoE (IEEE 802.3af)  • Ingress protection (IP67)  • Built -in micro SD card slot (SD/SDHC) for local storage  • One -way audio  • No mechanical moving parts  • Provides 360° and 180° panorama view  • Different angle of view accessible by multiple users at the same  time  • Playback from an...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

GV-UNFE2503 January 4, 2018
- 1 -
GV- UN FE 2503 2MP H.264 Super Low Lux WDR IR Fisheye Camera




• 1/2.8" progressive scan super low lux CMOS
• Minimum illumination at 0.02 lux
• Dual streams from H.264 and MJPEG
• Up to 30 fps at 192 0 x 1 080
• Megapixel lens
• Day and night function (with removable IR -cut filter )
• Intelligent IR
• PoE (IEEE 802.3af)
• Ingress protection (IP67)
• Built -in micro SD card slot (SD/SDHC) for local storage
• One -way audio
• No mechanical moving parts
• Provides 360° and 180° panorama view
• Different angle of view accessible by multiple users at the same
time
• Playback from any view angle and zoom level
• Digital Object Tracking
• Virtual PTZ function
• Auto Pan function
• 3D noise reduction
• Wide Dynamic Range (WDR)
• Defog
• Motion detection
• Tampering alarm
• Privacy mask
• Text overlay
• Supports iPhone, iPad, Android & 3GPP
• 31 languages on Web interface
• ONVIF (Profile S) conformant
• Recording assigned by GV -Edge Recording Manager (Windows
& Mac)
• More storage option - NAS

* No Memory card slot & local storage function for Argentina.

Introduction
The IR Fisheye Camera is an outdoor fisheye camera that allows you to monitor all angles of a location. The camera is equipped with
an IR LED ring that provides infrared illumination under low -light situations. It consists of a main body for processing and a separate
camera lens for capturing images. The compact camera lens can be installed in outdoor surveillance sites with limited space .



GV-UNFE2503 January 4, 2018
- 2 -
Photos












GV-UNFE2503 January 4, 2018
- 3 -
Dimensions
 Camera Body


 Camera Lens



Specifications
Camera
Image Sensor 1/2.8" progressive scan super low lux CMOS
Picture Elements 1920 (H) x 1080 (V)
Minimum
Illumination
Color
0.02 Lux
B/W
IR ON 0
Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec.)
White Balance Automatic, Manual (2800K ~ 8500K)
Gain Control Automatic
S/N Ratio 52 dB
WDR Yes
Lens
Megapixel Yes
Day/Night Yes (with removable IR-cut filter )
Iris Fixed
Focal Length 1.19 mm
Maximum Aperture F/2.0
Mount M12
Image Format 1/2.3"
Horizontal FOV 180°
Operation
Focus Fixed
Zoom Fixed
Iris Fixed
IR LED Quantity 8 IR LEDs
Max. IR Distance 10 m (32.81 ft)


GV-UNFE2503 January 4, 2018
- 4 -
Operation
Video Compression H.264, MJPEG
Video Streaming Dual streams from H.264 and MJPEG
Frame Rate
30 fps at 1920 x 1080 (60/50 Hz)
* The frame rate and the performance may vary depending on the number of connections
and data bitrates (different scenes).
Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image
Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity, WDR, Defog, Denoise,
Metering
Audio Compression AAC 32K
Audio Support One-Way Audio
Sensor Input No
Alarm Output No
Video Resolution
Main Stream
4:3 1600 x 1200 (Default), 1280 x 960
16:9 1920 x 1080, 1280 x 720
Sub Stream
4:3 640 x 480 (Default)
16:9 640 x 360
Network
Interface 10/100M Ethernet
Ethernet Protocol
DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), QoS (DSCP), RTSP, SNMP, SMTP,
TCP, UDP, UPnP, 3GPP/ISMA
Mechanical
Temperature Detector Yes
Connectors
Power PoE (IEEE 802.3af)
Ethernet RJ-45
Audio 1 In (built -in microphone)
Local Storage
Micro SD card slot (SD/SDHC, SD version 2.0 only, Class 10)
* SDXC and UHS-I card types are not supported.
Camera Unit
Connection
RJ - 12
LED Indicator 4 LEDs: Link, ACT, Camera Status, RJ-12 Status
General
Environment Temperature -5 °C ~50 °C (23 °F ~ 122 °F)
Humidity 10% to 90% (no condensation)
Power Source PoE (IEEE 802.3af)
Max. Power Consumption 7.7 W
Dimension
Main Body 78.5 x 47.36 x 32.5 mm (3.09" x 1.86" x 1.28")
Camera Lens Ø 80.35 x 115.12 mm (3.16" x 4.53")
Cable Length 1 m (3.28 ft)
Weight (with main body mount) 480 g (1.06 lb)
Ingress Protection IP67
Vandal Resistance N/A
Regulatory CE, FCC, RCM, RoHS compliant
Power over Ethernet
PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)
PoE Power Supply Type End-Span
PoE Power Output Per Port 48V DC, 350mA. Max. 15.4 watts
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm,
Text Overlay, Digital PTZ
Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek /
Hebrew / Hungarian / Indonesian / Italian / Japanese / Lithuanian / Norwegian / Persian /
Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian /
Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish


GV-UNFE2503 January 4, 2018
- 5 -


Applications
Network Storage GV-VMS / DVR / NVR, GV-Backup Center, GV-Recording Server, and GV-VMS
Smart Device Access GV-Eye for iOS and Android
Live Viewing IE, mobile App
CMS Server support GV-Control Center, GV-Center V2, GV-Vital Sign Monitor
Note:
1. Mind the following when using an inserted memory card for recording:
• Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical shock,
power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No guarantee is
provided for such causes.
• The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if you
seldom access the memory card.
• Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are
used. Back up your data regularly and replace the memory card annually.
• To avoid power outage, it is highly suggested to apply a battery backup (UPS).
• For better performance, it is highly suggested to use Micro SD card of MLC NAND flash, Class 10.
• Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently
undetected by the camera.
2. Specifications are subject to change without notice.


Packing List
1. IR Fisheye Camera
2. Installation Sticker
3. Main Body Mount
4. Main Body Adhesive Tape
5. M3 Screw x 2
6. M2 Screw
7. Warning Label
8. Download Guide
9. Warranty Card

Accessories
Model No. Details
GV-PA191 PoE Adapter
The GV -PA191 PoE adapter is designed to provide power and network connection to the
cameras over a single Ethernet cable.
GV-PoE Switch

The GV - P oE Switch is designed to provide power along with network connection for IP
devices. The GV - P oE Switch is available in various models with different numbers and
types of ports.
