GV-VR360 October 5, 2018
- 1 -

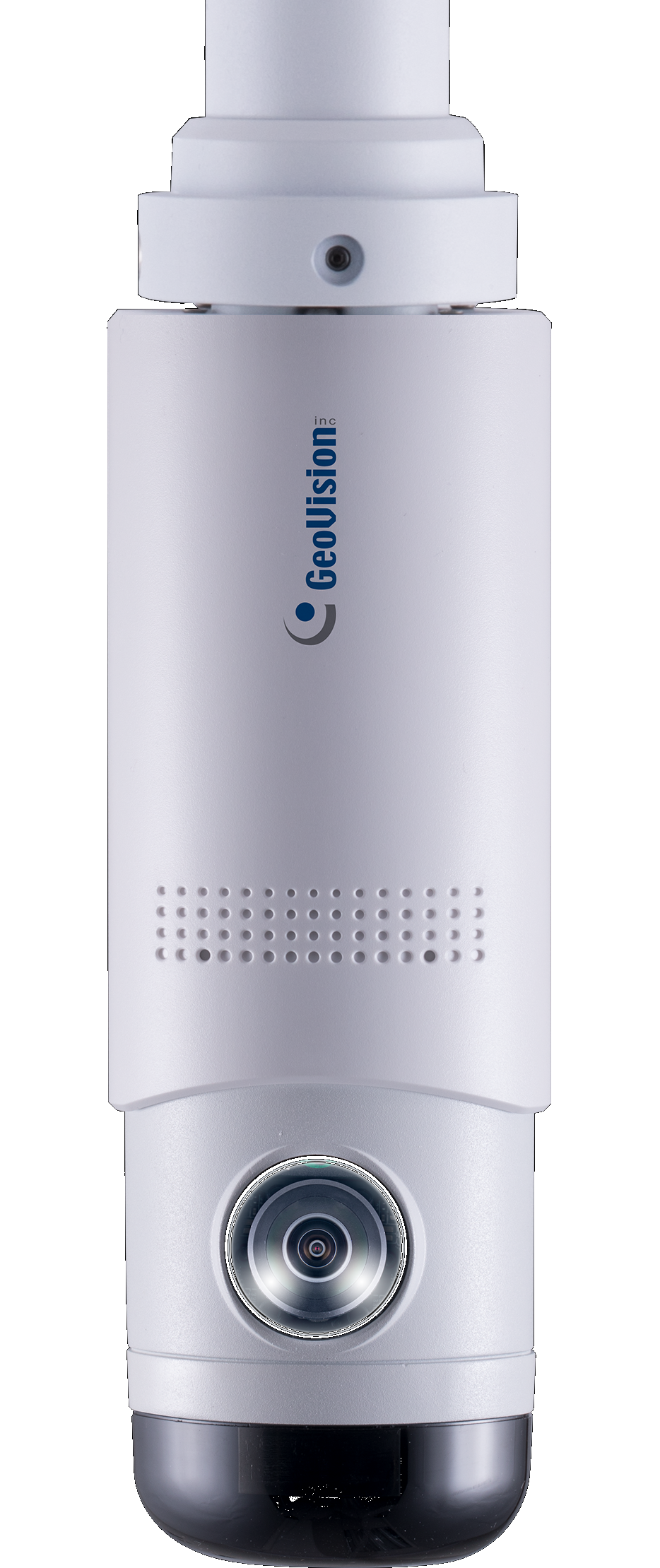

GV-VR360 8MP H.265 Low Lux WDR IR Virtual Reality IP Camera


Key Features
* Dual 4MP fisheye provides 720° panoramic view
with no blind spots
* 1/2.9’’ progressive scan low lux CMOS
* Dual streams from H.265 or H.264
* Up to 30 fps at 3840 x 2160
* Day and night (with removable IR ‐cut filter)
* Intelligent IR
* 4 IR LEDs
* IR distance up to 10 m (32 ft)
* One ‐way audio
* Built ‐ in / external microphone
* 1 sensor input and 1 alarm output
* DC 12V / PoE (PoE+, IEEE 802.3at)
* Vandal resistance (IK10 for metal casing)
* Ingress protection (IP67)
* VR Mode for YouTube & GV ‐ Eye
* Smart device APP support
* Live streaming via YouTube
* Defog
* 3 languages on Web interface
* ONVIF (Profile S) conformant

Introduction
GV ‐VR360 is a Virtual Reality IP camera made true with two 4 MP fisheye panoramic cameras. The camera provides a live view of the
surveillance area with an all ‐inclusive 720° angle range of view and extended depth of field, enabling a total coverage of wide open
areas. When streamed on line or viewed through the GV ‐ Eye or YouTube mobile app, users can watch the 720°, VR video from the
camera for an immersive experience. Equipped with IR ‐cut filter and IR LEDs, GV ‐VR360 is capable of day and night surveillance
under contrasting illumination conditions. Utilizing H.265 video codec, the cam era allows better compression ratio while
maintaining high image quality at reduced network bandwidths. The camera adheres to IK10 and IP67 standards.


VR Mode







GV-VR360 October 5, 2018
- 2 -
Dimensions


Specifications
System Requirements
OS Windows 7 Service Pack / Windows 10 or above

CPU Intel® 6
th
generation Core
TM
i3

RAM 4 GB Memory or above

Graphics Intel® HD Graphics 500 series or above

Camera

Image Sensor 1/2.9” progressive scan CMOS

Picture Elements 3840 (H) x 2160 (V)

Color 0.05 Lux

B/W 0.04 Lux

Minimum
Illumination
IR ON 0 Lux

Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec.)

White Balance Automatic, Manual

Gain Control Automatic

S/N Ratio 50 dB

WDR Yes

Dynamic Range 96 dB


GV-VR360 October 5, 2018
- 3 -
Optical Lens
Megapixel Yes

Day/Night Yes (with removable IR ‐cut filter)

Lens Type Fixed

Focal Length 1.05 mm

Maximum Aperture F/2.25

Mount M12

Horizontal FOV 360°

Focus Fixed

Zoom Fixed

Operation
Iris Fixed

IR LED Quantity 4 IR LEDs

Max. IR Distance 10 m (32 ft)

Operation

Video Compression H.265, H.264

Video Streaming
Stream 1 from H.265 or H.264
Stream 2 from H.264

Frame Rate
30 fps at 3840 x 2160 (50/60 Hz)
*The frame rate and the performance may vary depending on the number of connections
and data bitrates (different scenes).

Image Setting
Brightness, Contrast, Saturation, Sharpness, White Balance, Flicker ‐less, Image Orientation,
D/N Sensitivity, WDR, Defog, Metering

Audio Compression G.711, AAC

Audio Support One ‐way Audio

Sensor Input 1 Input (Dry Contact)

Alarm Output 1 Digital Output (200 mA 5V DC)

Video Resolution

Main Stream 3840 x 2160 (Default), 2560 x 1440, 1920 x 1080, 1280 x 720

Sub Stream
16:9
Closed (Default), 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 720
Network

Interface 10/100 Ethernet

Protocol DHCP, DNS, DynDNS, HTTP, HTTPS, IPv4, NTP, ONVIF (Profile S), RTSP, SMTP, TCP/IP, UDP

Mechanical

Temperature Detector N/A

Power DC 12V, 1.25A, DC Jack / PoE

Ethernet 10/100 Base ‐ T, RJ ‐ 45 Connector

Audio 1 in (built ‐ in or external microphone with power supply)

Digital I/O I/O wires

Connectors
Local StorageN/A

General

Start ‐ up ‐20°C ~ 50°C ( ‐ 4°F ~ 122°F)

Environment
Temperature
Operation ‐30°C ~ 50°C ( ‐22°F ~ 122°F)

Humidity 10% ~ 90% (no condensation)

Power Source DC 12V / PoE (PoE+, IEEE 802.3at)

Max. Power Consumption 12 W

Dimension (Straight Tube Mount) Ø 164 x 64 x 45.2 mm (6.46” x 2.52” x 1.78”)

Weight 0.58 kg (1.28 lb)

Ingress Protection IP67

Vandal Resistance IK10 for metal casing

Regulatory CE, FCC, LVD, RCM compliant


GV-VR360 October 5, 2018
- 4 -
Power over Ethernet
PoE Standard PoE+ (IEEE 802.3at) / PD

PoE Power Supply Type Mid ‐span

PoE Power Output Per Port 48V DC, 600 mA. Max. 25.5 watts

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, One ‐ Way Audio, Picture in Picture

Language English / Japanese / Traditional Chinese

Applications

Software Supported
GV ‐ VMS (V18.1), GV ‐Control Center (V3.6.0.0), GV ‐Edge Recording Manager (V1.4.0.0),
GV ‐Recording Server (V1.4.0.0 + Patch for live stream only)

Mobile Phone Support GV ‐ Eye for iOS (V2.5.2) and Android (V2.5.1)

Live Viewing Internet Explorer, Mobile App


Note:
1. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
2. H.265 video codec is not supported for YouTube streaming.
3. Stream 2 is disabled by default. Change the FPS of stream 1 to 25 or lower to enable stream 2.
4. To view the dewarped image of GV ‐VR360 on GV ‐ VMS, the graphic card must support DirectX 10.1 or above.
5. Up to 2 GV ‐VR360 can be connected to a GV ‐ VMS with a total frame rate of 24 fps.
6. Specifications are subject to change without noti ce.

Packing List
1. IR Virtual Reality IP Camera
2. Mount Kit
3. Silica Gel Bag
4. Hex Key
5. Torx Wrench
6. Screw x 3
7. Screw Anchor x 3
8. Download Guide
9. Warranty Card
Note: Power adapters can be purchased upon request.

Accessories
Model No. Name Details
GV ‐ POE Switch
GV ‐POE Switch is designed to provide power along with
network connection for IP devices. GV ‐ POE Switch is available
in various models with different numbers and types of ports.
GV ‐Relay V2 GV ‐Relay V2


The GV ‐Relay V2 is designed to expand the voltage load of
GV ‐ IP devices. It provides 4 relay outputs, and each can be set
as normally open (NO) or normally closed (NC) independently
as per your requirement.
Power Adapter
Contact our sales representatives for the countries and areas
supported.
