Ultra Series | DH-HAC-EBW3802

System Overview
The 4K HDCVI fisheye camera adopts a panoramic fisheye lens and 1/2"
8MP high performance image sensor, as well as a 15m IR range, enabling
a full overview and superior image details with 4K resolution. That makes
it easy to collect evidence at any time of day for effective playback and
analysis. With the use of advanced algorithms, more than 10+ dewarping
modes are available on the XVR (select models) and mobile client. Its
panoramic view and 4K resolution makes the camera an ideal choice for
large-size businesses and places such as airports, stadiums, parking lots,
and shopping malls.
Functions
Fisheye Panoramic View
HAC-EBW3802 offers a panoramic view based on three installation
modes(ceiling/ground/wall)with up to 95% sensor pixel utilization.As a
result you can recognize a person's face over 10 meters away.The camera
is able to provide a crystal clear image and broad coverage of wide and
open areas, such as airports, shopping malls, retail stores, offices and
more.So you wil get a overall sight just with one fisheye camera over coax.
Fisheye-Dewarping
Fisheye dewarping is a function to solve the serious distortion problem of
the circular panoramic view and you will use up to 10-modes dewarping
mode for different installations with HDCVR,Web and SmartPSS.Every
dewarping area is adjustable and optional as you want.
On-Device Lens Distortion Correction
On-device lens distortion correction is another great innovation of HDCVI
technology for correcting the fisheye panoramic image to a 16:9 full screen
with two optional modes by the camera itself.One is Vertical&Horizontal
(V&H)mode which can provide an image without any distortion and angle
of view is about H:170°,V:88 °.Another is Vertical(V) mode that can enable
the camera to output an image with H:176°,V:73 ° view angle.
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial
cable simultaneously, i.e. video, audio*, data and power. Dual-way data
transmission allows the HDCVI camera to interact with the HCVR, such as
sending control signal or triggering alarm. Moreover, HDCVI technology
supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.
Long Distance Transmission
HDCVI technology guarantees real-time transmission at long distance
without any loss. It supports up to 700m transmission for 4K and 4MP HD
video via coaxial cable, and up to 300m via UTP cable.*
*Actual results verified by real-scene testing in Dahua's test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional analog
system without replacing existing coaxial cabling. The plug and play approach
provides full HD video surveillance without the hassle of configuring a
network.
Multi-outputs
The camera supports HDCVI and CVBS signal outputs simultaneously with
two BNC connectors. Multi-outputs facilitates construction in situations such
as debugging with a tester. It also offers the possibility for cooperating with
multiple devices including analog matrix or monitor.
Wide Dynamic Range
Embedded with industry leading wide dynamic range (WDR) technology,
vivid pictures are achieved even in the most intense contrast lighting con-
ditions. True WDR (120dB) optimizes both the bright and dark areas of a
scene at the same time to provide usable video.
Advanced 3DNR
3DNR is noise reduction technology that detects and eliminates random
noises by comparing two sequential frames. Dahua’s advanced 3DNR
technology allows remarkable noise reduction with little impact to sharp-
ness, especially under limited lighting condition. Besides, the advanced
3DNR effectively decreases the band width and saves the storage space.
Protection
The camera's outstanding reliability is unsurpassed due to its rugged
design. The camera is protected against vandalism with IK10-rated, making
it suitable for most environment such as retail stores,manufacturing and
commercial facilities.
Supporting ±25% input voltage tolerance, this camera suits even the most
unstable power supply conditions. Its 4KV lightning rating provides protection
against the camera and its structure from the effects of outdoor lightning.
www.dahuasecurity.com
· 1/2” 8Megapixel progressive scan CMOS
· Panoramic fisheye lens
· Max. 15fps@4K
· 120db true WDR,2D&3D NR
· On-device lens distortion correction
· Max.15m IR distance
· IP67&IK10 ingress protection
· Up to 500m transmission with RG59 coaxial cable

DH-HAC-EBW3802

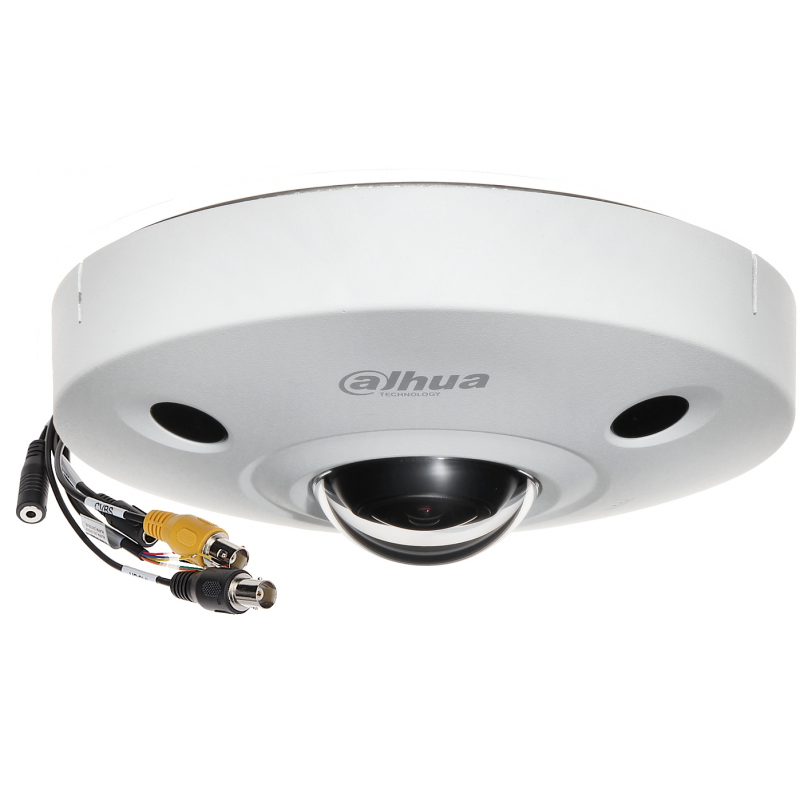

8MP HDCVI IR-Fisheye Camera

DC 12V
Vandal-proof

IP6 7
Fisheye

360°


www.dahuasecurity.com
Ultra Series | DH-HAC-EBW3802

Technical Specification
Camera
Image Sensor1/1.8" 8MP CMOS
Effective Pixels
3840(H)x2160(V)
Scanning SystemProgressive
Electronic Shutter Speed
PAL:1/4s~1/100,000s
NTSC:1/3s~1/100,000s
Minimum Illumination0.005Lux/F2.0 (Color), 30IRE,0lux IR on
S/N RatioMore than 65dB
IR Distance15m
IR On/Off ControlAuto (ICR)/Color/B/W
IR LEDs3
AudioBuilt-in mic
Lens
Lens TypeFixed lens / Fixed iris
Mount TypeBoard-in
Focal Length2.5mm
Max ApertureF2.0
Angle of ViewH: 180°,V:100°
Focus ControlN/A
Close Focus Distance0.6m(23.6'')
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DORI
Definition
Distance
Detect
25px/m
(8px/ft)
53m(173.8ft)
Observe
63px/m
(19px/ft)
21.2m(69.6ft)
Recognize
125px/m
(38px/ft)
10.6m(34.7ft)
Identify
250ppm
(76px/ft)
5.3m(17.4ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: NA
Tilt: NA
Rotation: NA
Video
Resolution8MP (3840x2160)/4M(2560x1440)
Frame Rate
PAL:3840x2160@12.5fps,2560x1440@25fps;
NTSC:3840x2160@15fps,2560x1440@30fps;
Video Output
1-channel HDCVI 4K video output & 1-channel
CVBS video output

Day/NightAuto (Electronic) / Manual
OSD MenuMulti-language
BLC ModeBLC / HLC / WDR
WDR120dB
Gain ControlAGC
Noise Reduction2D/3D
White BalanceAuto / Manual
Smart IRAuto / Manual

Certifications
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Alarm I/O2/1
Eelectrical
Power Supply DC12V ±25%
Power Consumption7.4W (IR ON)
Environmental
Operating Conditions
-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH
* Start up should be done at above -30°C (-22°F)
Storage Conditions-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal
Resistance
IP67&IK10
Construction
CasingAluminium
DimensionsΦ149.8mm x 47.7mm(Φ5.9"x 1,88")
Net Weight0.56kg (1.23lb)
Gross Weight0.92kg (2.02lb)

Ultra Series | DH-HAC-EBW3802
Rev 001.001© 2017 Dahua
®
. All rights reserved.
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
8MP Camera
DH-HAC-EBW3802P-0250B8MP HDCVI IR-Fisheye Camera, PAL
DH-HAC-EBW3802N-0250B8MP HDCVI IR-Fisheye Camera, NTSC
Accessories
PFA100Mount Adapter
PFB302S
Wall mount (For use with PFA100
mount adapter or with PFA100 &
PFA152-E pole mount)
PFA152-E
Pole mount (For use with PFA100&
PFB302S wall mount)
PFB300C Ceiling Mount
PFM800-E 1 Channel Passive HDCVI Balun
FM320 12V 2A Power Adapter
FM321 12V 1A Power Adapter
PFM320D-01512V 1.5A Power Adapter

Dimensions (mm/inch)
Dimensions (mm/inch)
Optional:

W all Moun t
Ceiling Moun t
P ole Moun t

PF A100+PFB302S+PFA 152-E
PFA100+PFB300C
PF A100+PFB302S

PFA100
Mount adapter
PFB302S
Wall mount

PFB300C
Ceiling Mount

PFA152-E
Pole mount

PFM800-E
Passive HDCVI Balun

PFM320D-015
Power Adapter
PFM321
12V 1A Power Adapter

PFM320
12V 2A Power Adapter
