HAC-HDW2241TL-0280B

Verfügbarkeit: 0
Preis: 76,31 € 76.31
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: DAHUA
Produkt-Code/SKU: HAC-HDW2241TL-0280B

Beschreibung

Pro Series | DH-HAC-HDW2241TL    www.dahuasecurity.com  DH-HAC-HDW2241TL  2MP Starlight HDCVI IR Eyeball Camera    System Overview  Experience 1080P full HD video and the simplicity of reusing existing  coaxial infrastructure with HDCVI. The Starlight HDCVI camera with  120dB true WDR presents a high quality image with rich details even in  extreme low-light conditions. It offers various motorized/fixed lens mod-  els with a multi-language OSD and HD/SD switchable output. Its superior  image performance and starlight feature makes the camera an ideal  choice for mid to large-size businesses and projects where both highly  reliable surveillance and construction flexibility are needed.  Functions  4 Signals over 1 Coaxial Cable  HDCVI technology supports 4 signals to be transmitted over 1 coaxial  cable simultaneously, i.e. video, audio*, data and power. Dual-way data  transmission allows the HDCVI camera to interact with the HCVR, such  as sending control signal or triggering alarm. Moreover, HDCVI technol-  ogy supports PoC for construction flexibility.  *Audio input is available for some models of HDCVI cameras.  Long Distance Transmission  HDCVI technology guarantees long-distance and real-time...

Warnung! Produkt aus der Produktion genommen!

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

Pro Series | DH-HAC-HDW2241TL

www.dahuasecurity.com
DH-HAC-HDW2241TL

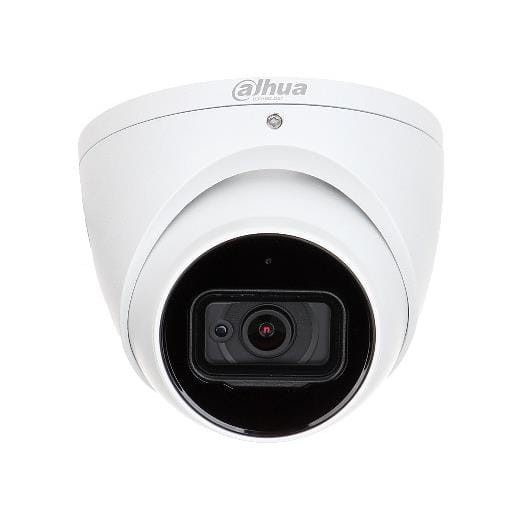

2MP Starlight HDCVI IR Eyeball Camera

System Overview
Experience 1080P full HD video and the simplicity of reusing existing
coaxial infrastructure with HDCVI. The Starlight HDCVI camera with
120dB true WDR presents a high quality image with rich details even in
extreme low-light conditions. It offers various motorized/fixed lens mod-
els with a multi-language OSD and HD/SD switchable output. Its superior
image performance and starlight feature makes the camera an ideal
choice for mid to large-size businesses and projects where both highly
reliable surveillance and construction flexibility are needed.
Functions
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial
cable simultaneously, i.e. video, audio*, data and power. Dual-way data
transmission allows the HDCVI camera to interact with the HCVR, such
as sending control signal or triggering alarm. Moreover, HDCVI technol-
ogy supports PoC for construction flexibility.
*Audio input is available for some models of HDCVI cameras.
Long Distance Transmission
HDCVI technology guarantees long-distance and real-time transmission
without any loss. It supports up to 800m for 1080P Full HD video via
coaxial cable, and up to 300m via UTP cable.*
*Actual results verified by real-scene testing in Dahua's test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional analog
system without replacing existing coaxial cabling. The plug and play
approach enables full HD video surveillance without the hassle of con-
figuring a network.
Starlight
With the adoption of high performance sensor, the camera is able
to provide incomparable performance even under extreme lowlight
environment. The starlight feature allows more details to be captured
and accurate color to be recognized at night or in scenes with limited
illumination.
Multiple-formats
The camera supports multiple video formats including HDCVI, CVBS, and
other two common HD analog formats in the market. A DIP switch locat-
ed on the cable allows you to quickly toggle formats, further simplifying
installation and debugging. This feature makes the camera compatible
with not only XVRs, but also most existing HD/SD DVRs.
Wide Dynamic Range
Embedded with industry leading wide dynamic range (WDR) technology,
vivid pictures are achieved even in the most intense contrast lighting
conditions. True WDR (120dB) optimizes both the bright and dark areas
of a scene at the same time to provide usable video.
Advanced 3DNR
3DNR is noise reduction technology that detects and eliminates random
noises by comparing two sequential frames. Dahua’s advanced 3DNR
tech¬nology allows remarkable noise reduction with little impact to
sharpness, especially under limited lighting condition. Besides, the
advanced 3DNR effectively decreases the band width and saves the
storage space.
Protection
The camera's outstanding reliability is unsurpassed due to its rugged de-
sign. The camera is protected against water and dust with IP67 ranking,
making it suitable for indoor or outdoor environments. Supporting ±30%
input voltage tolerance, this camera suits even the most unstable power
supply conditions. Its 4KV lightning rating provides protection against
the camera and its structure from the effects of lightning.
· Starlight, 120dB true WDR, 3DNR
· Max.30fps@1080P
· HD/SD output switchable
· 3.6mm fixed lens (2.8mm optional)
· Max. IR length 30m, Smart IR
· IP67, DC12V±30%

IP67

DC 12V

1080p

Starlight

30m IR

Pro Series | DH-HAC-HDW2241TL

Technical Specification
Camera
Image Sensor1/2.8 inch CMOS
Effective Pixels1920 (H)x1080 (V), 2MP
Electronic Shutter Speed
PAL: 1/3s–1/100000s
NTSC: 1/4s–1/100000s
Minimum Illumination0.004Lux/F2.0, 30IRE, 0Lux IR on
Fill Light KindIR
Fill Light Working Distance30 m (98 ft)
IR On/Off ControlAuto; manual
IR LED Number1
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length2.8mm; 3.6mm
Max. ApertureF2.0
Angle of View
2.8mm: 121° x 102° x 57° (diagonal x horizontal x
vertical)
3.6mm: 103.6° x 86.9° x 46.3° (diagonal x horizontal x
vertical)
Iris TypeFixed iris
Close Focus Distance500 mm/900 mm
DORI
Distance
LensDetectObserveRecognizeIdentify
2.8mm
38.6 m
(127 ft)
15.4 m
(51 ft)
7.7 m
(25 ft)
3.9 m
(13 ft)
3.6mm
55.2 m
(181 ft)
22.1 m
(73ft)
11.0 m
(36ft)
5.5 m
(18ft)
Video
Frame Rate
CVI:
PAL: 1080P@25fps, 720P@25fps, 720P@50fps;
NTSC: 1080P@30fps, 720P@30fps, 720P@60fps
AHD:
PAL: 1080P@25fps, 720P@25fps;
NTSC: 1080P@30fps, 720P@30fps
TVI:
PAL: 1080P@25fps, 720P@25fps, 720P@50fps;
NTSC: 1080P@30fps, 720P@30fps, 720P@60fps
CVBS
PAL: 960 x 576H;
NTSC: 960 x 480H
Resolution
1080P (1920x1080); 720P (1280x720); 960H (704x
576/704x480)
BLCBLC/HLC/WDR
WDR120dB/WDR
White BalanceAuto; manual
Gain ControlAuto; manual
Noise Reduction2D & 3D NR
Smart IRYes

www.dahuasecurity.com

Electronic DefogYes
Digital Zoom4x
MirrorOff/On
Privacy MaskingOff/On (8 area, rectangle)
Certifications
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one
BNC port
Power
Power Supply12V ±30% DC
Power ConsumptionMax 4.1W (12V DC, IR on)
Environment
Operating Temperature
-40°C to +60°C (-40°F to +140°F);
<95% (non-condensation)
Storage Temperature
-40°C to +60°C (-40°F to +140°F);
<95% (non-condensation)
Protection GradeIP67
Structure
CasingCover: plastic; inner core: metal + plastic
DimensionsΦ97mmx85.8mm (Φ3.82"x3.38")
Net Weight0.23kg (0.51lb)
Gross Weight0.29kg (0.64lb)


PFA12A
Plastic Junction Box

PFA135
Water-proof Junction Box
PFA135+PFA152-E
Pole Mount

Pro Series | DH-HAC-HDW2241TL
www.dahuasecurity.com

Rev 001.001 © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

Dimensions (mm[inch])

Junction Mount

PFA135

Wall Mount

PFA12A

Ceiling Mount

PFA106+PFB220C

Pole Mount

PFA135+PFA152-E


voW

vPv(uv
Type Part Number
Description
2MP Camera
DH-HAC-HDW2241TLP-
0280B
2MP Starlight HDCVI IR Eyeball Camera, PAL
DH-HAC-HDW2241TLP-
0360B
DH-HAC-
HDW2241TLN-0280B
2MP Starlight HDCVI IR Eyeball Camera,
NTSC
DH-HAC-
HDW2241TLN-0360B
Accessories
PFA130-E
Water-proof Junction Box
PFA12A
Plastic Junction Box
PFA135
Water-proof Junction Box
PFA135+PFA152-E
Pole Mount
PFM820
UTC
PFM800-4K
1-CH Passive Video Balun
PFM900-E
Integrated Mount Tester
PFM321D
DC12V1A Power Adapter
PFM300
DC12V2A Power Adapter

PFM820
UTC
PFM800-4K
1-CH Passive Video Balun
PFM900-E
Integrated Mount Tester

PFM321D
DC12V1A Power Adapter

PFM300
DC12V2A Power Adapter
PFA130-E
Water-proof Junction Box
