IPC-CB2C40-ZS-2812
product unavailable
zur Wunschliste hinzufügenBeschreibung
www.dahuasecurity.com • 1/3” 4 Megapixel progressive CMOS • H.265+ & H.265 dual-stream encoding •20fps@4M(2560x1440) &25/30fps@3M(2304x1296) •DWDR, Day/Night (ICR), 3DNR, AWB, AGC, BLC • Mulple network monitoring: Web viewe r, CMS (DSS/PSS) & DMSS • 2.8~12 mm varifocal lens •Max IR LEDs Length 40 m •Micro SD card memory, IP67, PoE Smart Codec (H.265+ & H.264+) - pression (H.265 & H.264) that uses a straining the network. Smart Codec technology reduces bit rate and storage requirements by up to 70% when compared to the standard video compression. True Day/Night A - scene darkens Regions of interest Regions of Interest (ROI) is a - Smart IR total darkness. The camera's Smart IR technology adjusts to the inten- sity of camera's infrared LEDs to compensate for the distance of an as they come closer to the camera. The camera's integrated infrared - Capturing unnecessary data such as surrounding hallway walls can feature allows the camera's i...
Warnung! Produkt aus der Produktion genommen!
Garantie: 36 mon.
Datentabelle
Textinhalt des PDF-Datenblattes:
www.dahuasecurity.com
• 1/3” 4 Megapixel progressive CMOS
• H.265+ & H.265 dual-stream encoding
•20fps@4M(2560x1440) &25/30fps@3M(2304x1296)
•DWDR, Day/Night (ICR), 3DNR, AWB, AGC, BLC
• Mulple network monitoring: Web viewe r, CMS (DSS/PSS)
& DMSS
• 2.8~12 mm varifocal lens
•Max IR LEDs Length 40 m
•Micro SD card memory, IP67, PoE
Smart Codec (H.265+ & H.264+)
-
pression (H.265 & H.264) that uses a
straining the network. Smart Codec technology reduces bit rate and
storage requirements by up to 70% when compared to the standard
video compression.
True Day/Night
A
-
scene darkens
Regions of interest
Regions of Interest (ROI) is a
-
Smart IR
total darkness. The camera's Smart IR technology adjusts to the inten-
sity of camera's infrared LEDs to compensate for the distance of an
as they come closer to the camera. The camera's integrated infrared
-
Capturing unnecessary data such as surrounding hallway walls can
feature allows the camera's image to be rotated in 90° increments for
Environmental
Dahua cameras operate in extreme temperature environments, rated
for use in temperatures from -30°C to +60°C (-22°F to +140°F) with 95%
humidity.
The camera allows for ±25% input voltage tolerance, suitable for the
-
immersion tests (IP67).
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
video products regardless of manufacturer
Cooper IP Series is perfect for small to medium size applications like
home/residential security, small retail shops, and other typical SMB
applications. It offers a perfect alternative to migrate from analog to an
IP system with its easy to use nature and cost effectiveness. Cooper IP
Series is fully in line with Dahua’s quality. Stable and reliable com-
ponents are utilized and Various tests such as anti-vibration, water
resistance, and aging tests are performed to ensure Dahua quality
standards.
Cooper IP Series | IPC-CB2C40-ZS-2812
IPC-CB2C40-ZS-2812

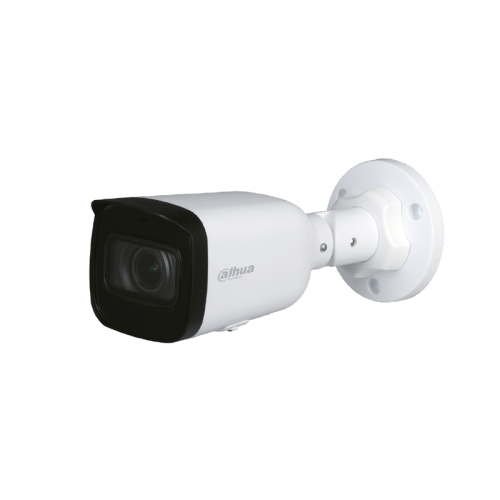

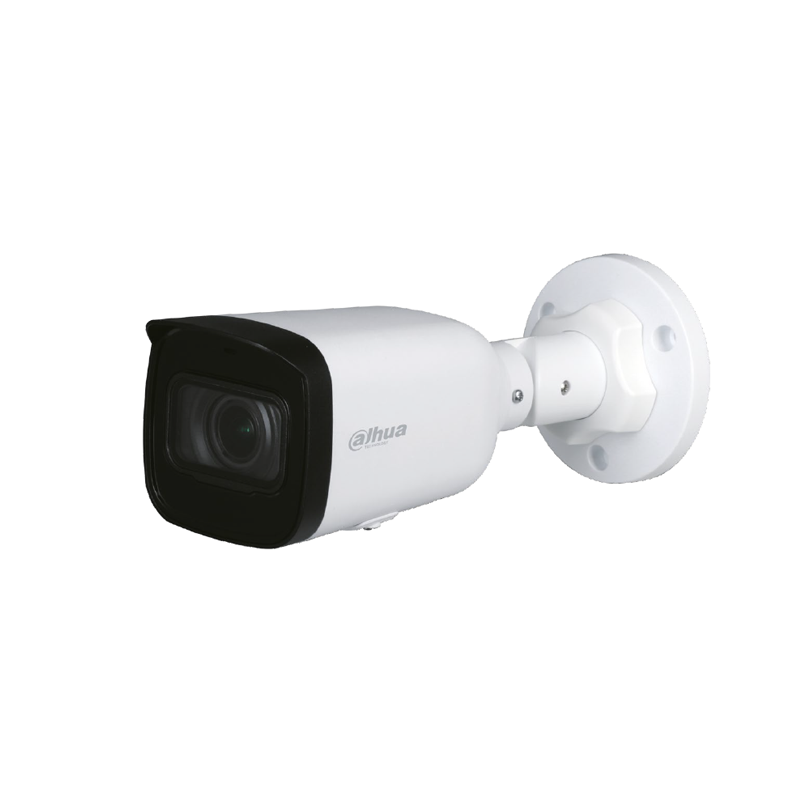

4 MP IR Mini-Bullet Network Camera
4Mp
www.dahuasecurity.com
Cooper IP Series | IPC-CB2C40-ZS-2812
technical specification
Video
CompressionH.265/H.264/H.264B/MJPEG (Sub Stream)
Smart Codec Support H.265+/H.264+
Streaming Capability2 Streams
Resolution
4M(2560x1440)/3M(2304x1296)/1080P(1920x1080)
/720P(1280x720)/VGA(640x480)/
D1(704x576/704x480)/CIF(352x288/352x240)
Frame Rate
Main Stream: 1080P (1~25/30 fps)
Sub Stream: D1 (1~25/30 fps)
Bit Rate Control CBR/VBR
Bit RateH.264: 16K~6144K H.265: 6K~6144K
Day/NightAuto (ICR)/Color/b/w
BLC ModeBLC/HLC/DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Network
EthernetRJ-45 (10/100Base-T)
Protocol
HTTP; HTTPS; TCP; ARP; RTSP; RTP; RTCP; UDP;
SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS;
UPnP; NTP; Bonjour; IEEE 802.1X; Multicast; ICMP;
IGMP; TLS; SSH
Interoperability ONVIF Profile S&G, API
Streaming MethodUnicast/Multicast
Max. User Access 10 Users/20 Users
Edge Storage
NAS (Network Attached Storage)
Local PC for instant recording
Micro SD Card 128 GB
Web ViewerIE, Chrome, Firefox, Safari
Management
Software
Smart PSS, DSS, DMSS
Smart PhoneiOS, Android
Certifications
Certifications
CE: (EN 60950:2000)
UL:UL60950-1 FCC:
FCC Part 15 Subpart B
Environmental
Operating Conditions-30°C ~ +60°C (-22°F ~ +140°F)/Less than 95% RH
Strorage Conditions-30°C ~ +60°C (-22°F ~ +140°F)/Less than 95% RH
Ingress ProtectionIP67
Construction
CasingMetal+Plastic
Dimensions 243.6 x 90.7 x 90.2 mm (9.59 x 3.57 x 3.55”)
Net Weight0.434 kg (0.957 lb)
Gross Weight0.693 kg (1.53 lb)
Electrical
Power Supply DC 12 V, PoE (802.3af) (Class 0)
Power Consumption
DC 12 V: 1.8 W, 5.8 W (IR On)
PoE: 2.1 W, 6.7 W (IR On)
Technical Specification
CameraH.265/H.264H/MJPEG (Sub Stream)
Image Sensor1/3” 4 Megapixel progresive CMOS
Effective Pixels2560 (H) x 1440 (V)
RAM/ROM256MB/16 MB
Scanning System Progressive
Electronic Shutter
Speed
Auto/Manual, 1/3~1/100000 s
Minimum Illumination
0.05 lx; f/1.8 (Color, 1/3 s,30IRE)
0.3 lx; f/1.8 (Color, 1/30 s,30IRE)
0 lx; f/1.8 (IR on)
S/N RatioMore than 40dB
IR DistanceDistance up to 40 m (131 ft)
IR On/Off ControlAuto/Manual
IR LEDs 2
Lens
Lens TypeMotorized
Mount TypeBoard-in
Focal Length2.8 mm~12 mm
Max. Aperture f/1.8
Angle of ViewH: 105°~33°, V: 56°~18°
Focus Control Motorized
Close Focus Distance0.2 m (0.66 ft)
DORI
distance
Lens DetectObserveRecognizeIdentify
W 44 m 17.6 m 8.8 m 4.4 m
T 133 m 53 m 27 m 13 m
PTZ
Pan/tilt range Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360°
Intelligence
Event Trigger
Motion detection, Video tampering , Network di-
sconnection, Scene change, IP address conflict, Illegal
Access, Storage anomaly
Video
Noise Reduction3D DNR
Motion Detetion Off/On (4 Zone, Rectangle)
Region of InterestOff/On (4 Zone)
"Electronic Image
Stabilization (EIS)"
N/A
Smart IR Support
Digital Zoom16x
Flip 0°/90°/180°/270°
MirrorOff/On
Privacy MaskingOff/On (4 Area, Rectangle)
www.dahuasecurity.com
Cooper Series | IPC-CB2C40-ZS-2812
© 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
ACCessoriesdimensions (mm)
Junction mountPole mount
PFA130-EPFA130-E + PFA152-E
Corner mount
PFA130-E + PFA151
PFA130-E PFA151 PFA152-E
Accessories
PFA130-EWater-proof Junction Box
PFA151Corner Mount Bracket
PFA152-EPole Mount Bracket
