System Overview
Cooper IP is perfect for small to medium size applications like
home/residential security, small retail shops, and other typical SMB
applications. It offers a perfect alternative to migrate from analog
to an IP system with its easy to use nature and cost effectiveness.
Cooper IP is fully in line with Dahua’s quality. Stable and reliable
components are utilized and Various tests such as anti-vibration, water
resistance, and aging tests are performed to ensure Dahua quality
standards.
Functions
Smart Codec (H.265+ & H.264+)
Smart Codec is the optimized implementation of standard video
compression (H.265 & H.264) that uses a scene-adaptive encoding
strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference
structure and intelligent noise reduction to deliver high-quality video
without straining the network. Smart Codec technology reduces bit rate
and storage requirements by up to 70% when compared to the standard
video compression.
True Day/Night
A day/night mechanical IR cut filter makes this camera ideal for
applications with fluctuating lighting conditions, delivering color images
during the day and automatically switching to monochrome as the scene
darkens
Regions of interest
Regions of Interest (ROI) is a user defined feature that allows the
operator to monitor specific areas of a scene while still maintaining
overall situational awareness of less important areas
Smart IR
With IR illumination, detailed images can be captured in low light or
total darkness. The camera's Smart IR technology adjusts to the intensity
of camera's infrared LEDs to compensate for the distance of an object.
Smart IR technology prevents IR LEDS from whiting out images as they
come closer to the camera. The camera's integrated infrared illumination
provides high performance in extreme low-light environments up to 30m
(98ft).
Image flip
Capturing unnecessary data such as surrounding hallway walls can
increase storage requirements without any added value. The image flip
feature allows the camera's image to be rotated in 90° increments for
better video optimization.
Environmental
Dahua cameras operate in extreme temperature environments, rated for
use in temperatures from -30° C to +60° C (-22° F to +140° F) with 95%
humidity.
Protection (IP67, wide voltage)
The camera allows for ±25% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 2KV lightning
rating provides effective protection for both the camera and its structure
against lightning. Subjected and certified to rigorous dust and immersion
tests (IP67) .
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network video
products regardless of manufacturer.
· 1/3” 4Megapixel progressive CMOS
· H.265+ & H.265 dual-stream encoding
· 20fps@4M (2560x1440) & 25/30fps@3M (2304x1296)
· DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS)
& DMSS
· 2.8~12mm varifocal lens
· Max IR LEDs Length 30m
· Micro SD card memory, IP67, PoE

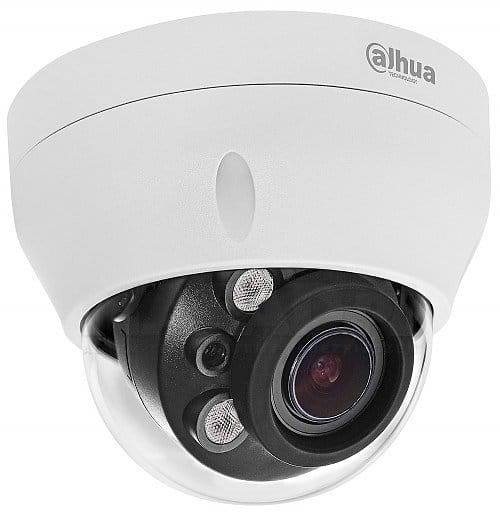

IPC-CD2C40-ZS-2812
4MP IR Mini-Dome Network Camera

IP67
H.265+
30m IR
4Mp

www.dahuasecurity.com
Cooper IP Series | IPC-CD2C40-ZS-2812

Technical Specication
Camera
Image Sensor1/3” 4Megapixel progresive CMOS
Effective Pixels
2560(H)x1440(V)
RAM/ROM
256MB/16MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/100000s
Minimum Illumination
0.05Lux/F1.8( Color,1/3s,30IRE)
0.3Lux/F1.8( Color,1/30s,30IRE)
0Lux/F1.8(IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 30m(98ft)
IR On/Off Control
Auto/ Manual
IR LEDs
2
Lens
Lens TypeMotorized
Mount TypeBoard-in
Focal Length2.8mm~12mm
Max. ApertureF1.8
Angle of ViewH:97°~31°, V:54°~17°
Focus ControlFixed
Close Focus Distance0.2m(0.66ft)
DORI Distance
LensDetectObserveRecognizeIdentify
W 66m(216.5ft)26.4m(86.6ft)13.2m(43.3ft)6.6m(21.7ft)
T 200m(656.2ft)80m(262.5ft)40m(131.2ft)20m(65.6ft)
PTZ
Pan/Tilt RangePan:0° ~355° ;Tilt:0° ~75° ;Rotation:0° ~355°
Intelligence
Event Trigger
Motion detection, Video tampering , Network disconnection,
Scene change, IP address conflict, Illegal Access, Storage
anomaly
Video
CompressionH.265/H.264/H.264B/MJPEG(Sub Stream)
Smart Codec Support H.265+/H.264+
Streaming Capability2 Streams
Resolution
4M(2560x1440)/3M(2304x1296)/1080P(1920x1080)/
720P(1280x720)/VGA(640x480)/D1(704x576/704x480)/
CIF(352x288/352x240)
Frame Rate
Main Stream: 4M(1 ~ 20fps)
Sub Stream: D1(1 ~ 25/30fps)
Bit Rate ControlCBR/VBR
Bit Rate
H.264: 32K~6144K
H.265: 12K~ 6144K


Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / DWDR
White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetetionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image Stabilization
(EIS)
N/A
Smart IRSupport
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionN/A
Network
EthernetRJ-45 (10/100Base-T)
Protocol
HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;
FTP;DHCP;DNS;DDNS;IPV4/V6;QoS;UPnP;
NTP;Bonjour;Multicast;ICMP;IGMP;TLS;SSH
InteroperabilityONVIF Profile S&G, API
Streaming MethodUnicast / Multicast
Max. User Access10 Users/20 Users
Edge Storage
NAS(Network Attached Storage)
Local PC for instant recording
Micro SD Card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS,DMSS
Smart PhoneIOS, Android
Certifications
Certifications
CE: (EN 60950:2000)
FCC: FCC Part 15 Subpart B
Interface
Video InterfaceN/A
Audio InterfaceN/A
RS485N/A
AlarmN/A
Electrical
Power SupplyDC12V, PoE (802.3af)(Class 0)
Power Consumption
DC12V: 1.8W, 5.6W(IR On)
PoE: 2.1W, 6.5W(IR On)

www.dahuasecurity.com
Cooper IP Series | IPC-CD2C40-ZS-2812

Ordering Information
TypePart NumberDescription
4MP Camera
IPC-CD2C40P-ZS
4MP IR Mini-Dome Network Camera,
PAL
IPC-CD2C40N-ZS
4MP IR Mini-Dome Network Camera,
NTSC
Accessories
(optional)
PFA137Junction box
PFB203W Wall mount
PFA152-E Pole mount
PFA106 Ceiling mount
PFB220CCeiling mount
PFA200WRain Shade

Environmental
Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal ResistanceN/A
Construction
CasingPlastic
DimensionsΦ122mm x 98.1mm (4.8" x3.86")
Net Weight0.381Kg (0.84lb)
Gross Weight0.562Kg (1.24lb)
Dimensions (mm/inch)

t

Wa t

Po

PFB203W+ PF A152-E

PFB203W

PF A137
PF A106+PFB220C

t

Wa
BJO4IBEF

PF A200W

}Œ]
K‰Ÿ}voW

PFA137
Junction Box
PFB203W
Wall mount
PFA152-E
Pole mount
PFA106
Ceiling Mount

PFB220C
Ceiling Mount
PFA200W
Rain Shade
