Panoramic Series | DH-IPC-EBW8630-IVC

System Overview
The fisheye camera incorporates Panamorph Technology from
ImmerVision Enables®, an industry leader in 360° solutions and
applications. Panomorph technology is comprised of patented
panomorph optics and viewing functionality for optimal 360° image
quality. The panomorph optic includes magnified zones of interest based
on an innovative distortion control concept. The viewing functionality
removes all added distortion and enables 360° immersive navigation
within live or recorded 360° video.ImmerVision Enables® is the only
universally-accepted 360° dewarping standard; all major VMS platforms
and camera vendors support this technology. This support gives you the
freedom to choose the VMS platform of your video surveillance system
that best meet your requirements.
Functions
True Day/Night
A day/night mechanical IR cut filter makes this camera ideal for
applications with fluctuating lighting conditions, delivering color images
during the day and automatically switching to monochrome as the scene
darkens.
Panoramic
Panoramic cameras provide 180 °, 360 ° full range of video scene,
bringing people a new sense of real live and interactive experience.
Dahua provides two kinds of panoramic camera, single lens fisheye
camera and multi-lens camera, both of them can offer 180-degree
& 360-degree panoramic image. Through working together with PTZ
camera which offer whole scene and region details at same time. It
provided new surveillance experience to end user and improved the
surveillance quality.
Business intelligent analysis (Heatmap)
Dahua fisheye camera also supports advanced intelligent feature like
heat map besides basic IVS functions. The heatmap function can be
applied to business intelligence and bring extra values to customers. The
heat map function based on a moving object in time of space movement
for analysis, find the most active area and output the report, which is to
provide valuable data support for commercial applications.
Smart IR
With IR illumination, detailed images can be captured in low light or
total darkness. The camera's Smart IR technology adjusts the intensity of
camera's infrared LEDs to compensate the distance of an object. Smart
IR technology prevents IR LEDs from whitening out images as they come
closer to the camera. The camera's integrated infrared illumination
provides high performance in extreme low-light environments up to 10m
(33ft).
HEVC(H.265)
H.265 ITU-T VCEG is a new video coding standard. H.265 Following
standard developed around the existing video coding standard H.264
, some retain the original technology , while some of the relevant
technology to improve the new technology uses advanced technology
to improve the relationship between the code stream , encoding quality
, and the delay between algorithm complexity , optimize settings
specific contents include : Improve compression efficiency , improve the
robustness and error recovery capabilities, real-time to reduce the delay,
reduce channel acquisition time and a random access delay , reduce
complexity , etc
Protection (IP67, IK10, wide voltage)
Supporting ±25% input voltage tolerance, this camera suits even the
most unstable conditions for outdoor applications. Its 6KV lightning
rating provides effective protection for both the camera and its structure
against lightning.IP67 is supported by the camera, which makes it
suitable for both indoor and outdoor environments. IK10 compliance
enables the camera to sustain the equivalent of 55 kg (120lbs) force.
www.dahuasecurity.com
· 1/1.8” 6Megapixel progressive scan STARVIS™ CMOS
· H.265/H.264 triple-stream encoding
· Max 25/30fps@6M(3072x2048)
· Multiple dewarped Mode
· Day/Night(ICR), 3DNR, AWB, AGC, BLC
· Smart detection
· Intelligent Function
· Max. IR LEDs length 10m
. Micro SD memory, IP67, IK10, PoE
. Panamorph Lens RPL: B4QQV
DH-IPC-EBW8630-IVC

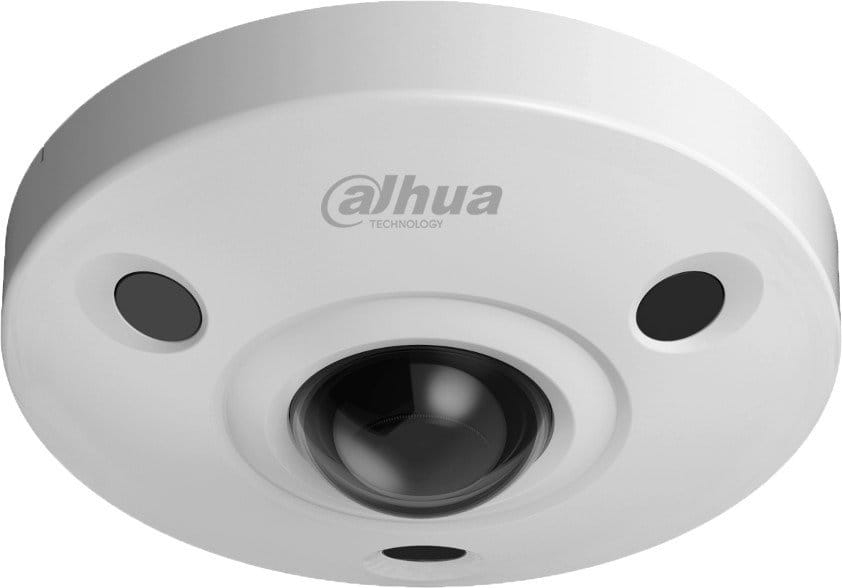

6MP Panoramic Network IR Fisheye Camera with Panamorph Lens

Vandal-proof

ICR D/N

IP6 7
H.265

Fisheye

360°

Heatmap


www.dahuasecurity.com
Panoramic Series | DH-IPC-EBW8630-IVC

Technical Specification
Camera
Image Sensor 1/1.8” 6Megapixel progressive scan CMOS
Effective Pixels
3072(H)x2048(V)
RAM/ROM
1024MB/128MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/100000s
Minimum Illumination
0.005Lux/F2.8( Color,1/3s,30IRE)
0.05Lux/F2.8( Color,1/30s,30IRE)
0Lux/F2.8(IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 10m(33ft)
IR On/Off Control
Auto/ Manual
IR LEDs
3
Lens
Lens TypeFixed
Mount TypeBoard-in
Focal Length1.3mm
Max. ApertureF2.8
Angle of ViewH: 180˚, V:180˚
Optical ZoomN/A
Focus ControlFixed
Close Focus DistanceN/A
DORI Distance
DetectObserveRecognizeIdentify
21m(69ft)8m(26ft)4m(13ft)2m(7ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation RangeN/A
Intelligence
IVSTripwire, Intrusion
Advanced Intelligent FunctionsHeat Map
Video
CompressionH.265/H.264
Streaming Capability3 Streams
Resolution
6M(3072x2048)/ 4M(2048x2048)/ 3M(2048x1536)/
UXGA(1600x1200)/ 1.3M(1280x960)/
D1(704x576/704x480)/ CIF(352x288/352x240)
Frame Rate
Main Stream: 6M(1~25/30fps)
Sub Stream: D1(1 ~ 25/30fps)
Third Stream: 1.3M(1 ~ 25/30fps)
Bit Rate ControlCBR/VBR
Bit Rate
H.265: 3Kbps~ 9984Kbps
H.264: 8Kbps~ 16384Kbps


Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / DWDR
White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetetionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image
Stabilization(EIS)
N/A
Smart IRSupport
DefogSupport
Digital Zoom16x
FlipN/A
MirrorN/A
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionG.711a/G.711Mu/AAC/ G.726
Network
EthernetRJ-45 (100/1000Base-T)
Protocol
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHC
P;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour
;802.1x;Multicast;ICMP;IGMP;SNMP
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access10 Users/20 Users
Edge Storage
NAS
Local PC for instant recording
Mirco SD card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, Easy4ip
Smart PhoneIOS, Android
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video InterfaceN/A
Audio Interface1/1 channel In/Out
RS485N/A
Alarm
2 channel In: 5mA 5VDC
2 channel Out: 1A 30VDC / 0.5A 50VAC
Electrical
Power SupplyDC12V, PoE (802.3af)(Class 0)
Power Consumption<12W

Panoramic Series | DH-IPC-EBW8630-IVC

Ordering Information
TypePart NumberDescription
6MP camera
DH-IPC-EBW8630P-
IVC
6MP Panoramic Network IR Fisheye
Camera, PAL
DH-IPC-EBW8630N-
IVC
6MP Panoramic Network IR Fisheye
Camera,NTSC
IPC-EBW8630P-IVC
6MP Panoramic Network IR Fisheye
Camera, PAL
IPC-EBW8630N-IVC
6MP Panoramic Network IR Fisheye
Camera,NTSC
Accessories
(optional)
PFA100Mount Adapter
PFB302S Wall Mount
PFA152Pole Mount
PFA105Mount Adapter
PFA110Mount Adapter
PFB300C Ceiling Mount
www.dahuasecurity.com

Environmental
Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection
IP67
Vandal ResistanceIK10
Construction
CasingMetal
DimensionsΦ149.8mmx50.7mm(Φ5.9”x2”)
Net Weight0.58kg(1.28lb)
Gross Weight1.0kg(2.2lb)
Accessories
Dimensions (mm/inch)

PF A100
M PVOU"EBQUFS
PF A105
Po le Moun t
PF A152PFB302S
Ceiling Moun t
PFB300C
W all Moun t
PF A110

Moun t Adapte rM ou nt Adapte r

Wa ll Moun t
Ceiling Moun t
Po le Moun t
PF A100+PFB302S+P FA 152
PF A105+PFA110+PFB300C
PF A100+PFB302S

Rev 001.001© 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice.
