IPC-HDBW2231E-S-0360B-S2

Verfügbarkeit: 0
Preis: 119,09 € 119.09
bez 23.00% VAT i kosztów dostawy
quantity szt.

product unavailable

zur Wunschliste hinzufügen
Anbieter: DAHUA
Produkt-Code/SKU: IPC-HDBW2231E-S-0360B-S2

Beschreibung

www.dahuasecurity.com  DH-IPC-HDBW2231E-S-S2  2MP IR Mini Dome Network Camera    · 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition  · Outputs 2MP (1920 x 1080) @ 25/30 fps  · H.265 coding, high compression ration, low bit rate  · Built-in IR LED, max IR distance: 30 m  · ROI, SMART H.264/H.265, flexible coding, applicable to various   bandwidth and storage environments  · Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,   applicable to various monitoring scenes  · Intelligent detection: Intrusion, tripwire  · Abnormality detection: Motion detection, video tampering, no SD card,   SD card full, SD card error, network disconnected, IP conflict, illegal ac-   cess, voltage detection  · Max. 256 GB SD card  · 12V DC/POE power support  · IP67, IK10 protection grade  Lite Series | DH-IPC-HDBW2231E-S-S2   System Overview  With updraded H.265 encoding technology, Dahua Lite series camera  has efficient video encoding capacity, which saves bandwidth and  storage space. This camera adopts the latest starlight technology and  displays better colorful image in the environment of low illumination. It  supports SD card storage, waterproof function, dust-proof...

Warnung! Produkt aus der Produktion genommen!

Ersatzprodukt: IPC-HDBW2231E-S-0280B-S2

Garantie: 36 mon.

Datentabelle PDF


Textinhalt des PDF-Datenblattes:

www.dahuasecurity.com
DH-IPC-HDBW2231E-S-S2

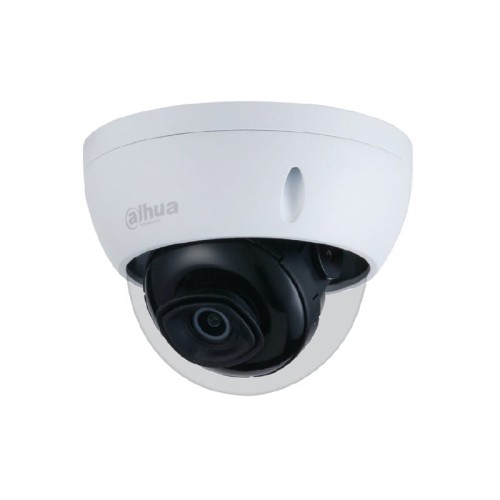

2MP IR Mini Dome Network Camera

· 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
· Outputs 2MP (1920 x 1080) @ 25/30 fps
· H.265 coding, high compression ration, low bit rate
· Built-in IR LED, max IR distance: 30 m
· ROI, SMART H.264/H.265, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tampering, no SD card,
SD card full, SD card error, network disconnected, IP conflict, illegal ac-
cess, voltage detection
· Max. 256 GB SD card
· 12V DC/POE power support
· IP67, IK10 protection grade
Lite Series | DH-IPC-HDBW2231E-S-S2
System Overview
With updraded H.265 encoding technology, Dahua Lite series camera
has efficient video encoding capacity, which saves bandwidth and
storage space. This camera adopts the latest starlight technology and
displays better colorful image in the environment of low illumination. It
supports SD card storage, waterproof function, dust-proof function and
tamper-proof function, complying to the standards of IP67 and IK10.
Functions
Smart (H.265+ & H.264+)
Adopting advanced algorithm of auto stream control according to the
environment, Dahua smart encoding technology realizes the higher
efficiency than (H.265 & H.264 ), providing high-quality video, and
reducing the cost of storage and transmission.
Wide dynamic range (WDR)
Dahua adopts advanced Wide Dynamic Range (WDR) technology. You
can get clear details in the environment of strong brightness contrast.
In high brightness and back-light environment, bright region and dark
region with strong light source, you can also get clear images.
Starlight
Dahua Starlight technology mainly applies to the environment of
low illumination, and it can provide clear colorful video. Even in the
environment of min. illumination, the technology can guarantee the
good image effect.

2Mp

IP67
H.265+

Vandal-proof

StarlightIVS

Intelligent Video Analysis (IVS)
With advanced video algorithm, Dahua camera supports intelligent
detection, such as tripwire and intrusion and so on.
Protection (IP67, IK10, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg
hammer falling from a height of 40 m (Impact energy is 20J).
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
instable voltage.

www.dahuasecurity.com

Technical Specification
Camera
Image Sensor1/2.8”2Megapixel progressive CMOS
Effective Pixels
1920 (H) x1080 (V)
ROM128 MB
RAM128 MB
Scanning SystemProgressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100000 s
Min. Illumination0.002 Lux @F1.6
IR Distance30 m (98.4 ft)
IR On/Off ControlAuto/Manual
IR LEDs Number3 (IR LED)
Pan/Tilt/Rotation Range
Horizonal: 0°–355°
Vertical: 0°–65°
Rotation: 0°–355°
Lens
Lens TypeFixed focal
Mount TypeM12
Focal Length
2.8 mm
3.6 mm
Max. ApertureF1.6
Field of View
2.8 mm:
Horizontal:106°
Vertical: 56°
Diagonal: 126°
3.6 mm:
Horizontal:87°
Vertical: 46°
Diagonal: 104°
Iris TypeFixed aperture
Close Focus Distance
2.8 mm: 0.6 m (2.0 ft)
3.6 mm: 1.2 m (3.9 ft)
DORI Distance
LensDetectObserveRecognizeIdentify
2.8 mm
38.6 m
(126.6 ft)
15.4 m
(50.5 ft)
7.7 m
(25.3 ft)
3.9 m
(12.8 ft)
3.6 mm
55.2 m
(181.1 ft)
22.1 m
(72.5 ft)
11.0 m
(36.1 ft)
5.5 m
(18.0 ft)
Smart Event
General IVS AnalyticsIntrusion; tripwire
Video
Video Compression H.265; H.264; H.264B; MJPEG
Smart Codec
H.264: Yes
H.265: Yes
Video Frame Rate
50 Hz
Main stream (1920 x 1080@25 fps); sub stream(704 x
576@25 fps)
60 Hz
Main stream (1920 x 1080@30 fps), sub stream(704 x
480@30 fps)
Stream Capability2 streams
Resolution
1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280
x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF
(352 x 288/352 x 240)

Bit Rate ControlCBR; VBR
Video Bit Rate
H.264: 32 Kbps–6144 Kbps
H.265: 12 Kbps–6144 Kbps
Day/NightICR auto switch
BLCYes
WDR120 dB
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest(RoI)Yes (4 areas)
Smart IRYse
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 1080p
resolution.)
MirrorYes
Privacy Masking4 areas
Network
NetworkRJ-45 (10/100 Base-T)
Protocol
HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP;
DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP;
RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP
InteroperabilityONVIF (Profile S/Profile G); CGI; Milestone; Genetec
User/Host20
Edge Storage
Dahua Cloud; FTP; Micro SD Card (support max. 256
GB); NFS
BrowserIE; Chrome; Firefox
Management SoftwareSmart PSS; DSS; DMSS
Mobile PhoneIOS; Android
Certification
Certifications
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply12V DC/PoE
Power Consumption
Basic power consumption: 1.9W (12V DC); 2.4W (PoE)
Max. power consumption (H.265 + max. resolution +
max. stream + WDR + IR full intensity + IVS enabled):
4.5W (12V DC); 5.4W (PoE)
Environment
Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than≤95%
Storage Temperature-40°C to +60°C (-40°F to +140°F)
Protection GradeIP67, IK10
Structure
CasingMetal
Lite Series | DH-IPC-HDBW2231E-S-S2

Dimensions81 mm x Φ109.9 mm (3.2" x Φ4.3")
Net Weight0.35 kg (0.77lb)
Gross Weight0.48 kg (1.06lb)

Ordering Information
TypePart NumberDescription
2MP
Camera
DH-IPC-HDBW2231EP-S-S2
2MP IR Mini Dome Network Camera,
PAL
DH-IPC-HDBW2231EN-S-S2
2MP IR Mini Dome Network Camera,
NTSC
Accessories
(optional)
PFA136Junction Box
PFA200W Rain Shade
PFB203W Wall Mount
PFA152-E Pole Mount
PFA106Mount Adapter
PFB220CCelling Mount
PFM321DDC12V1A Power Adapter
LR1002-1ET/1EC
Single-port Long Reach Ethernet
Over Coax Extender
PFM900-EIntegrated Mount Tester
PFM114TLC SD Card

Dimensions (mm[inch])

Rev 001.001© 2019 Dahua . All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

www.dahuasecurity.com
Accessories
Optional:
PFA136
Junction Box
PFA200W
Rain Shade
PFA106
Mount Adapter
PFA152-E
Pole Mount
PFM114
TLC SD card
PFB220C
Celling Mount
PFM321D
DC12V1A Power
Adapter
LR1002-1ET/1EC
Single-port long
reach ethernet over
coax extender
PFM900-E
Integrated Mount
tester
PFA106
Wall Mount

Junction MountWall Mount
Ceiling Mount
Wall Mount
PFA36PFB23W
PFA36PFA2W
PFA6PFB22C

Pole Mount
PFB23WPFA2E

Lite Series | DH-IPC-HDBW2231E-S-S2
