www.dahuasecurity.com

· 4MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
· Outputs max. 4MP (2688 x 1520)@30 fps
· H.265 codec, high compression rate, low bit rate
· Built-in IR LED, max. IR distance: 40 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments
· Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Intelligent detection: Intrusion, tripwire
· Abnormality detection: Motion detection, video tampering, scene
changing, audio abnormality detection, no SD card, SD card full, SD card
error, network disconnection, IP conflict, illegal access, voltage detection
· Alarm: In, out; Audio: In, out; Supports max. 256 G Micro SD card
· 12V DC/POE power support
· IP67, IK10 protection
· SMD

4Mp

IP67
H.265+

Starlight
Perimeter

System Overview
With advanced deep learning algorithm, Dahua Lite AI series network
camera supports some intelligent functions, such as perimeter
protection and smart motion detection. It adopts starlight solution,
which makes a better image effect in low illuminance.
Functions
Smart (H.265+ & H.264+)
Adopting advanced algorithm of auto stream control according to the
environment, Dahua smart encoding technology realizes the higher
efficiency than (H.265 & H.264 ), providing high-quality video, and
reducing the cost of storage and transmission.
Wide dynamic range (WDR)
Dahua adopts advanced Wide Dynamic Range (WDR) technology. You
can get clear details in the environment of strong brightness contrast.
In high brightness and back-light environment, bright region and dark
region with strong light source, you can also get clear images.
Starlight
Dahua Starlight technology mainly applies to the environment of
low illumination, and it can provide clear colorful video. Even in the
environment of min. illumination, the technology can guarantee the
good image effect.
Intelligent Video Analysis (IVS)
With advanced video algorithm, Dahua camera supports intelligent
detection, such as tripwire and intrusion and so on.
Smart Motion Detection (SMD)
With intelligent algorithm, Dahua Smart Motion Detection technology
can effectively recognize the target types, flitting the motion detection
alarm triggered by non-concerned target types. It can realize effective
and accurate alarm.
Protection (IP67, IK10, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg
hammer falling from a height of 40 m (Impact energy is 20J).
Wide voltage: The camera allows ±30% input voltage tolerance (wide
voltage range), and it is widely applied to outdoor environment with
instable voltage.

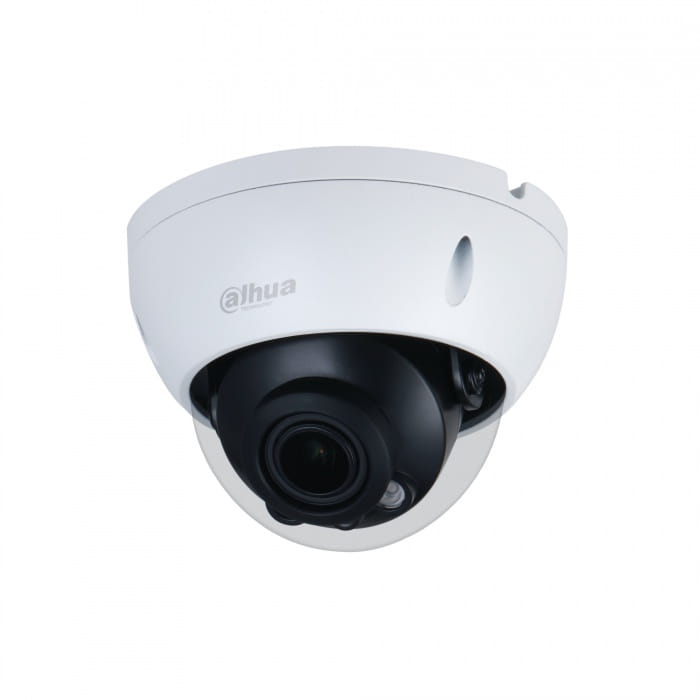

DH-IPC-HDBW3441R-ZAS
4MP Lite AI IR Vari-focal Dome Network Camera
Lite AI Series | DH-IPC-HDBW3441R-ZAS

www.dahuasecurity.com

Technical Specification
Camera
Image Sensor1/2.7”4Megapixel progressive CMOS
Effective Pixels
2688 (H) x1520 (V)
ROM128 MB
RAM512 MB
Scanning SystemProgressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100000 s
Min. Illumination0.005 Lux@F1.5
IR Distance40 m (131.23 ft)
IR On/Off ControlAuto/Manual
IR LEDs Number2 (IR LEDs)
Pan/Tilt/Rotation RangeHorizontal: 0°–355°; vertical: 0°–75°; rotation: 0°–355°
Lens
Lens TypeMotorized vari-focal
Mount Typeφ14
Focal Length2.7 mm–13.5 mm
Max. ApertureF1.5
Field of View
Horizontal: 104°–27°
Vertical: 55° –15°
Diagonal: 124° –31°
Iris TypeFixed aperture
Close Focus Distance0.8 m (2.6 ft)
DORI Distance
LensDetectObserveRecognizeIdentify
W
64.0 m
(210.0 ft)
25.6 m
(84.0 ft)
12.8 m
(42.0 ft)
6.4 m
(21.0 ft)
T
222.0 m
(728.3 ft)
88.8 m
(291.3 ft)
44.4 m
(145.7 ft)
22.2 m
(72.8 ft)
Professional, Intelligent
Perimeter ProtectionTripwire; intrusion (Recognition of human and vehicle)
Intelligent Search
Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to event
videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG
Smart CodecYes
Video Frame Rate
Main stream (2688 x 1520@1–25/30 fps)
sub stream (704 x 576@1–25/30 fps)
third stream (1280 x 720@1–25/30 fps)
Stream Capability3 streams
Resolution
4M (2688 x 1520); 3M (2304 x 1296); 1080p (1920 x
1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704
x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352
x 240)
Bit Rate ControlCBR/VBR
Video Bit Rate
H.264: 3 Kbps–8192 Kbps
H.265: 3 Kbps–8192 Kbps

Day/NightAuto(ICR)/Color/B/W
BLCYes
HLCYes
WDR120 dB
White Balance
Auto/natural/street lamp/outdoor/manual/regional
custom
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest(RoI)Yes (4 areas)
Smart IRYes
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 1920 x 1080
resolution.)
MirrorYes
Privacy Masking4 areas
Audio
Audio CompressionG.711a; G.711Mu; G726; AAC
Network
NetworkRJ-45 (10/100 Base-T)
Protocol
HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP;
DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP;
NTP
InteroperabilityONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec
Scene Self-adaptation Yes
User/Host20 (Total bandwidth: 64 M)
Edge Storage
FTP; Micro SD Card (support max. 256 G); Dahua Cloud;
NAS
Browser
IE: IE8, IE9, IE11
Chrome
Firefox
Management SoftwareSmart PSS, DSS, DMSS
Mobile PhoneIOS; Android
Certification
Certifications
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio Input1-channel (RCA port)
Audio Output1-channel (RCA port)
Alarm Input1 channel in: 5mA 3V–5V DC
Alarm Output1 channel out: 300mA 12V DC
Power
Power Supply12V DC/PoE (802.3af)
Lite AI Series | DH-IPC-HDBW3441R-ZAS

Power Consumption<8.5W
Environment
Operating Conditions-30°C to +60°C (-22°F to +140°F)/less than≤95%
Strorage Conditions-40°C to +60°C (-40°F to +140°F)
Ingress ProtectionIP67; IK10
Structure
CasingMetal + plastic
DimensionsΦ122 mm x 88.9 mm (Φ4.8" x 3.5")
Net Weight492 g (1.1 lb)
Gross Weight663 g (1.5 lb)

Rev 001.001© 2019 Dahua . All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

www.dahuasecurity.com
Lite AI Series | DH-IPC-HDBW3441R-ZAS

Ordering Information
TypePart NumberDescription
4MP
Camera
DH-IPC-HDBW3441RP-ZAS
4MP Lite AI IR Vari-focal Dome
Network Camera,PAL
DH-IPC-HDBW3441RN-ZAS
4MP Lite AI IR Vari-focal Dome
Network Camera,NTSC
Accessories
(optional)
PFA137Junction Box
PFB203W Wall Mount
PFA152-E Pole Mount
PFA200W Rain Shade
PFA106Mount Adapter
PFB220CCelling Mount
PFB200CIn-Celling Mount
PFM321DDC12V1A Power Adapter
LR1002-1ET/1EC
Single-port Long Reach Ethernet
over Coax Extender
PFM900-EIntegrated Mount Tester
PFM114TLC SD Card

Dimensions (mm[inch])

Accessories
Optional:
PFA137
Junction Box
PFB203W
Wall Mount
PFA200W
Rain Shade
PFA106
Mount Adapter
PFA152-E
Pole Mount
PFM114
TLC SD card
PFB220C
Celling Mount
PFB200C
In-Celling Mount
PFM321D
DC12V1A Power
Adapter
LR1002-1ET/1EC
Single-port long
reach ethernet over
coax extender
PFM900-E
Integrated Mount
tester

Junction MountWall Mount
Ceiling Mount
Wall Mount
PFAPFBW
PFAPFAW
PFAPFBC

In-Ceiling Mount
PFBC

Pole Mount
PFBWPFA-E
