Eco Savvy 3.0 | DH-IPC-HDBW4239R-ASE

System Overview
With upgraded H.265 encoding technology, Eco-savvy series brings
high efficient video compression capability. It can save bandwidth and
storage. Meanwhile, the series features starlight, full-color starlight,
smart IR technology and intelligent image analysis techniques. This series
supports reminder function, meanwhile fully protected from dust and
water, certified to IP67 and vandal resistant to IK10 standard.
Functions
Full-color Starlight
With the adoption of high performance sensor and large-sized aperture
lens, the camera is able to provide a more colorful image even under
lowlight environment. Full-color starlight cameras are prefect for
applications of low-light conditions which is over 1 lux, such as parking
lots, urban streets, schools, museums, etc.
*Full-color starlight cameras can not work in total darkness environment.
ePoE technology
The ePoE technology of Dahua, designed internally, adopts advanced
2D-PAM3 coding modulation from physical layer, and realizes full duplex
transmission over 800 meters at the speed of 10Mbps, or 300 meters
at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides,
it supports PoE and PoC power supply technology which has greatly
simplified construction and wiring. Dahua ePoE technology offer a new
way to accomplish long distance transmission between IP camera and
network switch. It allows more flexible surveillance system design,
improves reliability and saves construction and wiring cost.
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range (WDR)
technology. For applications with both bright and low lighting conditions
that change quickly, true WDR (120 dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Intelligent Video System (IVS)
IVS is a built-in video analytic algorithm that delivers intelligent functions
to monitor a scene for Tripwire violations, intrusion detection, and
abandoned or missing objects. A camera with IVS quickly and accurately
responds to monitoring events in a specific area. In addition to scene
analytics, the camera supports face detection to quickly capture a
face and upload the image to a server. The camera also offers tamper
detection by recognizing a dramatic scene change and generating a
warning message to inspect the camera.
Protection(IP67, IK10, wide voltage)
The camera allows for ±30% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 6KV lightning
rating provides effective protection for both the camera and its structure
against lightning. Subjected and certified to rigorous dust and immersion
tests (IP67) and impact tests (IK10), the camera is the choice for
installation in even the most unforgiving environments.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that
uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,
flexible multi-frame reference structure and intelligent noise reduction to
deliver high-quality video without straining the network. Smart H.265+
technology reduces bit rate and storage requirements by up to 70%
when compared to standard H.265 video compression.
www.dahuasecurity.com
· 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
· H.265&H.264 triple-stream encoding
· 25/30fps@1080(1920x1080)
· Smart Detection supported
· WDR(120dB), Day/Night(Electronic), 3DNR, AWB, AGC, BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) &
DMSS
· 3.6mm fixed lens (6mm optional)
· 1/1 Alarm in/out, 1/1 audio in/out
· Micro SD memory, IP67, IK10, PoE

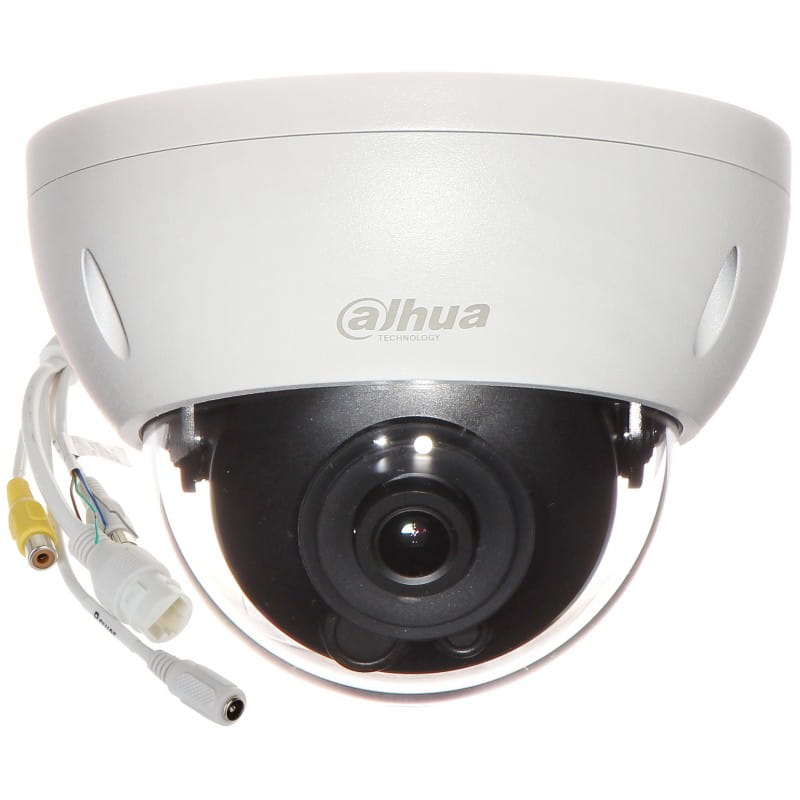

DH-IPC-HDBW4239R-ASE
2MP WDR Full-color Starlight Dome Network Camera

1080p

50/60fps

1080P

H.265+

Temperature

IP67

Vandal-proof


www.dahuasecurity.com
Eco Savvy 3.0 |DH-IPC-HDBW4239R-ASE

Technical Specification
Camera
Image Sensor1/2.8” 2Megapixel progressive scan CMOS
Effective Pixels
1920(H) x 1080(V)
RAM/ROM
256MB/32MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/100000s
Minimum Illumination
0.001ux/F1.0 ( Color,1/3s,30IRE)
0.006Lux/F1.0 ( Color,1/30s,30IRE)
S/N Ratio
More than 50dB
IR LEDs
N/A
Lens
Lens TypeFixed
Mount TypeBoard-in
Focal Length3.6mm (6mm optional)
Max. ApertureF1.0(F1.0)
Angle of ViewH: 87°/54°, V:47°/20°
Optical ZoomN/A
Focus ControlFixed
Close Focus Distance1.6m(5.3ft)/3.5m (11.5ft)
DORI
Distance
LensDetectObserveRecognizeIdentify
3.6 mm 53m(174ft)21m(69ft)11m(36ft)5m(16ft)
6.0 mm83m(289ft)33m(108ft)17m(56ft)8m(26ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation RangePan:0˚~360˚; Tilt:0˚~80˚; Rotation:0˚~360˚
Intelligence
Event Trigger
Motion detection, Video tampering , Scene changing,
Network disconnection , IP address conflict, Illegal
Access,Storage anomaly
IVS Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent FunctionsFace Detection
Video
CompressionH.265/H.264/H.264B/H.264H/MJPEG(Sub Stream)
Smart CodecSupport H.265+/H.264+
Streaming Capability3 Streams
Resolution
1080P(1920x1080)/1.3M(1280x960)/
720P(1280x720)/D1(704x576/704x480)/
VGA(640x480)/CIF(352x288/352x240)
Frame Rate
Main Stream: 1080P(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Third Stream: 1080P(1~25/30fps)
Bit Rate ControlCBR/VBR
Bit Rate
H.264: 24K ~ 10240Kbps
H.265: 14K ~ 9984Kbps


Day/NightColor(default) /Auto(Electronic) / B/W
BLC ModeBLC / HLC / WDR(120dB)
White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetetionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image Stabilization
(EIS)
N/A
Smart IRSupport
DefogN/A
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionG.711a/ G.711Mu/ AAC/ G.726
Network
EthernetRJ-45 (10/100Base-T)
Protocol
HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;PPPOE;IE
EE802.1X;SMTP;SNMP;FTP;DHCP;DNS;DDNS;PPPoE;
IPV4/V6;QoS;UPnP;NTP;Bonjour;IEEE 802.1X;Multic
ast;ICMP;IGMP;TLS;SSH;NFS
InteroperabilityONVIF Profile S&G, API
Streaming MethodUnicast / Multicast
Max. User Access10 Users /20 Users
Edge Storage
NAS
Local PC for instant recording
Mirco SD card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, DMSS
Smart PhoneIOS, Android
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video InterfaceN/A
Audio Interface1/1 channel In/Out
RS485N/A
Alarm
1 channel In: 5mA 5VDC
1 channel Out: 300mA 12VDC
Electrical
Power SupplyDC12V, PoE(802.3af)(Class 0)
Power Consumption<3.7W

Eco Savvy 3.0 | DH-IPC-HDBW4239R-ASE

Ordering Information
TypePart NumberDescription
2MP camera
DH-IPC-
HDBW4239RP-ASE
2MP Full-color Starlight Dome Network
Camera,WDR, PAL
DH-IPC-
HDBW4239RN-ASE
2MP Full-color Starlight Dome Network
Camera WDR,NTSC
IPC-HDBW4239RP-
ASE
2MP Full-color Starlight Dome Network
Camera,WDR, PAL
IPC-HDBW4239RN-
ASE
2MP Full-color Starlight Dome Network
Camera WDR,NTSC
Accessories
(optional)
PFB203W Wall mount
PFA137Junction box
PFB200C In-ceiling mount
PFA152-EPole Mount
LR1002 ePoE Over Coax Converter
www.dahuasecurity.com

Environmental
Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection
IP67
Vandal ResistanceIK10
Construction
CasingMetal
DimensionsΦ122mmx88.9mm (4.8”x3.5”)
Net Weight0.44kg (0.97lb)
Gross Weight0.58kg (1.29lb)
Accessories
Optional:
Dimensions (mm/inch)
PFA152-E
Pole Mount
PFB200C
In-ceiling Mount
PFA137
Junction Box
PFB203W
Wall Mount

t
t

Wa t
Po

PFB203W + PF A152
PFB203W

PF A137
PFB200 C

Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.

LR1002
ePoE Over Coax Converter
