Pro AI Series |DH-IPC-HDBW5241R-ASE

DH-IPC-HDBW5241R-ASE

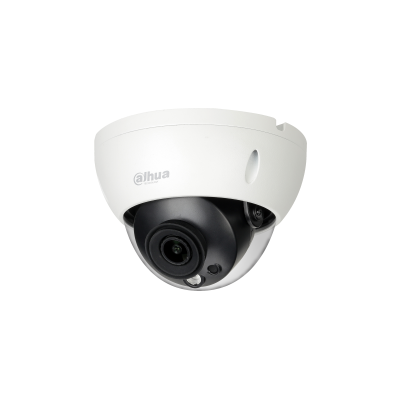

2MP WDR IR Dome AI Network Camera

www.dahuasecurity.com
Dahua AI series products adopt the most advanced AI technologies,
including deep learning algorithms that primarily target people and
vehicles, which provides higher flexibility and accuracy for end-users.
This enables the Dahua AI series to offer various advanced applications
such as Face Recognition, ANPR, Metadata, People Counting, traffic data
statistics, etc.The complete lineup of Dahua AI includes network (PTZ)
cameras, network video recorders, servers, and platform management
products. Beyond seeing the world, the power of AI allows devices to
perceive the environment and understand the world in a better way.
System Overview
Pro AI series contains Face Capture, Perimeter Protection and People
Counting functions.Powered by deep-learning Artificial Intelligence algo-
rithms, significantly improved accuracy. Meanwhile, the series features
starlight and smart IR technology. This series fully protected from dust
and water, certified to IP67 and vandal resistant to IK10 standard.

Functions
Face Capture
Face capture is a software application that automatically captures faces
from within a digital image or a video frame from a video source. Dahua
cameras use advanced deep learning algorithms and are trained by a
large number of face data sources, enabling the camera to locate faces
quickly and accurately from the video source and capture facial images.
Perimeter Protection
Dahua’s Perimeter Protection functions significantly improved accuracy.
Perimeter Protection reduces false alarms and decreases pixel count
requirements for object detection. Perimeter Protection features
custom tripwires based on object type for automation in limited access
areas such as pedestrian or vehicle-only zones. This combination of
advanced AI analytics and real-time alerts to a desktop or to a mobile
client reduces system requirements and resources resulting in greater
surveillance system efficiency.
· 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
· H.265 & H.264 triple-stream encoding
· 25/30 fps@1080P (1920 x 1080)
· WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
· Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
· 2.8 mm fixed lens (3.6 mm, 6.0 mm optional)
· 1/1 Alarm in/out, 1/1 audio in/out
· Max. IR LEDs Length 50 m
· Micro SD memory, IP67, IK10

People Counting
People Counting function uses advanced image processing technology
to capture depth information from within images. The camera pairs this
information with deep learning algorithms to analyze and detect human
bodies and track target objects in real time. The camera provides statis-
tics for separate individuals’ entrance and exit with up to 95% counting
accuracy.
ePoE technology
The ePoE technology of Dahua, designed internally, adopts advanced
2D-PAM3 coding modulation from physical layer, and realizes full duplex
transmission over 800 meters at the speed of 10Mbps, or 300 meters at
the speed of 100Mbps via Cat 5 or coaxial cable media. Besides, it sup-
ports PoE and PoC power supply technology which has greatly simplified
construction and wiring. Dahua ePoE technology offer a new way to
accomplish long distance transmission between IP camera and network
switch. It allows more flexible surveillance system design, improves reli-
ability and saves construction and wiring cost.
Protection(IP67, IK10, wide voltage)
The camera allows for ±30% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 6KV lightning rat-
ing provides effective protection for both the camera and its structure
against lightning. Subjected and certified to rigorous dust and immer-
sion tests (IP67) and impact tests (IK10), the camera is the choice for
installation in even the most unforgiving environments.

Technical Specification
Camera
Image Sensor1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
Effective Pixels
1920 (H) x 1080 (V)
RAM/ROM
512 MB/128 MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3 s–1/100000 s
Minimum Illumination
0.002 Lux@F1.6
IR Distance
Distance up to 50 m (164 ft)
IR On/Off Control
Auto/Manual
IR LEDs
1
Lens
Lens TypeFixed
Mount TypeBoard-in
Focal Length2.8 mm, 3.6 mm, 6.0 mm
Max. ApertureF1.6
Angle of ViewH: 106°, V: 57°/H: 87°, V: 46°/H: 53°, V: 30°
Optical ZoomN/A
Aperture TypeFixed
Close Focus Distance0.6 m (1.97 ft)/1.2 m (3.94 ft)/2.5 m (8.20 ft)
DORI Distance
LensDetectObserveRecognizeIdentify
2.8mm39m(128ft)15m(49ft)8m(26ft)4m(13ft)
3.6mm55m(180ft)22m(72ft)11m(36ft)6m(20ft)
6.0mm83m(272ft)33m(108ft)17m(56ft)8m(26ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation RangePan: 0˚–355˚; Tilt: 0˚–75˚; Rotation: 0˚–355˚
Artificial Intelligence
Face CaptureSupport face image capture
Perimeter ProtectionTripwire, Intrusion (Human & Vehicle classification)
People Counting
Support Line crossing/Region/Queueing people
counting; Support 4 accesses independent
detection, 4 areas independent detection
General Intelligence
Event Trigger
Motion detection, Video tampering , Scene
changing, Network disconnection , IP address
conflict, Illegal Access, Storage anomaly
General IntelligenceObject Abandoned/Missing
Video
Compression
H.265+, H.265, H.264+, H.264, H.264B, H.264H,
MJPEG (sub stream)
Streaming Capability3 Streams

Resolution
1080P (1920 x 1080)/1.3M (1280 x 960)/720P (1280
x 720)/D1 (704 x 576/704 x 480)/VGA (640 x 480)/
CIF (352 x 288/352 x 240)
Frame Rate
Main Stream: 1080P (1 fps–25/30 fps)
Sub Stream: D1 (1 fps–25/30 fps)
Third Stream: 1080P (1 fps–6 fps)
Bit Rate ControlCBR/VBR
Bit Rate
H.264: 32 Kbps–8192 Kbps
H.265: 19 Kbps–7424 Kbps
Day/NightAuto(ICR)/Color/B/W
BLC ModeBLC/HLC/WDR (120 dB)
White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetetionOff/On (4 Zone, Rectangle)
Region of InterestOff/On (4 Zone)
Electronic Image Stabilization
(EIS)
N/A
Smart IRSupport
DefogSupport
Digital ZoomN/A
Flip0°/90°/180°/270°
MirrorOff/On
Privacy MaskingOff/On (4 Area, Rectangle)
Audio
CompressionG.711a, G.711Mu , G.726 , AAC , G.723
Network
EthernetRJ-45 (10/100 Base-T)
Protocol
HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP,
FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS,
UPnP, NTP, ICMP, HTTPS, IGMP, 802.1x
Interoperability
ONVIF (Profile S/Profile G), CGI, Milstone, Genetec,
P2P
Streaming MethodUnicast/Multicast
Max. User Access20 Users
Edge Storage
NAS
FTP
Micro SD card 256 GB
Web Viewer
IE (versions newer than IE8), Chrome,
Firefox, Safari (versions newer than Safari 12)
Management SoftwareSmart PSS, DSS, P2P
Smart PhoneiOS, Android
Certifications
Certifications
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
www.dahuasecurity.com
Pro AI Series |DH-IPC-HDBW5241R-ASE

Ordering Information
TypePart NumberDescription
2MP camera
DH-IPC-
HFW5241RP-ASE
2MP WDR IR Dome AI Network Camera,
WDR, PAL
DH-IPC-
HFW5241RN-ASE
2MP WDR IR Dome AI Network Camera,
WDR, NTSC
IPC-HFW5241RP-
ASE
2MP WDR IR Dome AI Network Camera,
WDR, PAL
IPC-HFW5241RN-
ASE
2MP WDR IR Dome AI Network Camera,
WDR, NTSC
Accessories
(optional)
PFA137 Junction box
PFB200CInceiling Mount
PFA200WRain Shade
PFA123Junction box
PFB203WWall Mount
PFA152-EPole Mount
PFA106Mount Adapter
PFB220CCeiling Mount

RS485N/A
Alarm
1 channel In: 5mA 5V DC
1 channel Out: 300mA 12V DC
Electrical
Power SupplyDC 12V (±30%), PoE (802.3af) (Class 0)
Power Consumption<5.5W
Environmental
Operating Conditions-30° C to +60° C (-22° F to +140° F)/10%RH–95%RH
Strorage Conditions-30° C to +60° C (-22° F to +140° F)
Ingress Protection IP67
Vandal ResistanceIK10
Construction
CasingMetal
DimensionsΦ122 mm x 88.9 mm (4.80” x 3.50”)
Net Weight0.46 kg (1.01 lb)
Gross Weight0.62 kg (1.37 lb)
Accessories
Optional:
Dimensions (mm[inch] )

Interface
Video InterfaceN/A
Audio Interface1/1 channel In/Out
Pro AI Series |DH-IPC-HDBW5241R-ASE

PFA137
Junction box
PFB200C
Inceiling Mount

PFA200W
Rain Shade

PFA123
Junction box

PFB203W
Wall Mount
PFA152-E
Pole Mount
PFA106
Mount Adapter
PFB220C
Ceiling Mount

Junction Mount
Inceiling Mount

Wall Mount
Pole Mount

PFB23W PFA152-E
PFB23W

PFA13
PFB2C

Wall Mount with Rain Shade

PFA123
PFA2W

PFA1 PFB22C

Ceiling Mount

Junction Mount

LR1002
ePoE Over Coax Converter

Rev 001.001© 2019 Dahua . All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
